Relay&Relay Module Wet switch relay module humidity switch module humidity controller humidity sensor high quality

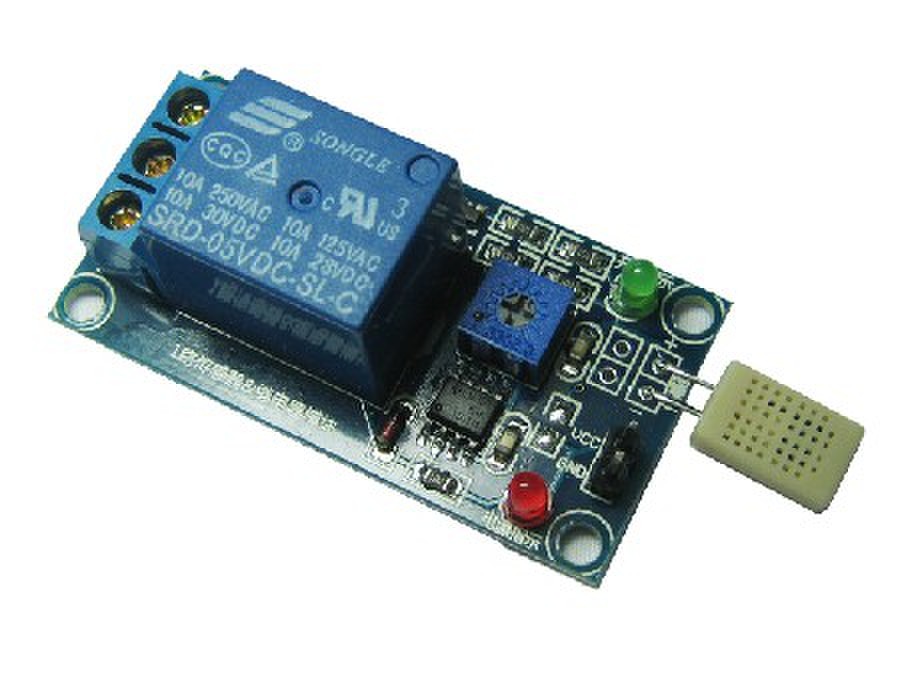

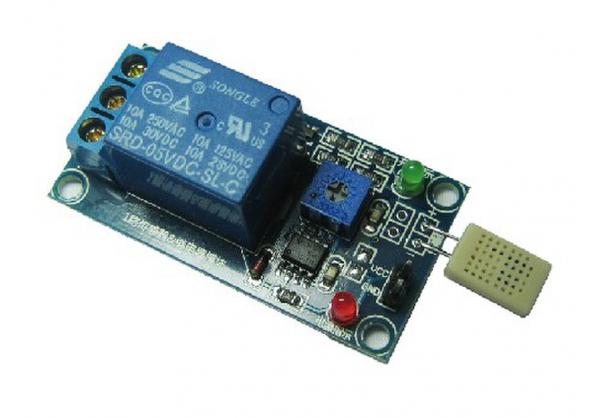

: Large Image:Relay&Relay ModuleWet switch relay module humidity switch module humidity controller humidity sensor high quality

Product Details:

Place of Origin:	CHINA
Brand Name:	LXXTECH
Model Number:	LXX-0277
Certification:

Payment & Shipping Terms:

Minimum Order Quantity:	20
Price:	Good price
Delivery Time:
Payment Terms:	TT ,paypal,ESCROW
Supply Ability:

Detailed Product Description

Wet switch relay module humidity switch module humidity controller humidity sensor high quality

Uses:

Detecting the humidity , the humidity sensor , humidity detection , with relay output directly related to the device power control

Module Features :

1 , using high-quality HR202 humidity sensor ;

2, the comparator outputs directly drive relays , or other devices connected to 220V AC ;

3 , adjust the temperature distribution position detection threshold

4, the sensor interface can be installed pin , plus humidity sensor with leads ;

5 , the circuit board dimensions as : 50x26mm, thickness 19mm, has four 3mm bolts holes for easy installation

Electrical parameters :

Supply voltage : 5VDC or 12VDC ( default hair 5V, 12V , please leave a message needed )

Current : more than 150mA

Maximum load : 250V 10A AC or 30V 10A DC , this power can be used by small

Module for use:

1, the humidity sensor most sensitive to environmental humidity , generally used to detect ambient humidity ;

2 , when the module is in the ambient humidity exceeds the set threshold, the relay , often beginning with a common terminal connected, when the ambient humidity is below the set threshold, the relay off , the common terminal and the normally closed terminal connected;

3 , common, normally open, normally closed three ports is equivalent to a dual-control switch, relay coil power , often beginning with a common terminal conduction, when there is no electricity , common and normally closed terminal conduction ;

Shipping list :

Humidity sensors plus a relay module with humidity resistance

Product Tag : humidity switch module
