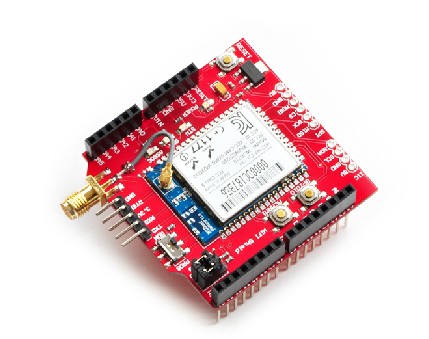

WiFi Shield V2.1 For Arduino low-power wireless wifi module

 WiFi Shield V2.1 For Arduino low-power wireless wifi module factory  WiFi Shield V2.1 For Arduino low-power wireless wifi module factory

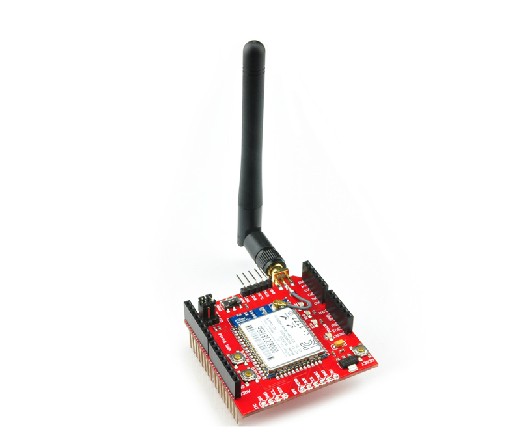

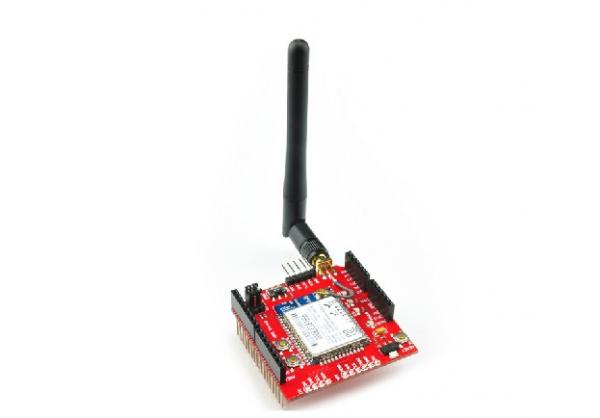

Large Image:WiFi Shield V2.1 For Arduino low-power wireless wifi module

Product Details:

Place of Origin: CHINA
Brand Name: LXXTECH
Model Number: LXX-0424
Certification:

Payment & Shipping Terms:

Minimum Order Quantity: 2
Price: Good price
Delivery Time:
Payment Terms: TT ,paypal,ESCROW
Supply Ability:
Detailed Product Description

WiFi Shield V2.1 For Arduino low-power wireless wifi module

WizFi210 is a dynamic power management can be used to achieve low power consumption ( standby : 34.0μA; Receive : 124mA; Output : 126mA) in WIFI module. Relative to other market other WIFI module , its power consumption is relatively low . If you use WizFi210 to design products, its power consumption is relatively low, and can be set in standby mode ( ie, when the product needs to start long-term , but do not require the long run , so , it can run when not needed , set the standby mode , reduce waste power . pending when you want to run , and then wake up ) .
Based WizFi210 provide TTL level serial port to a WIFI wireless module bridging IEEE802.11b/g/n wireless communications. Any device with a TTL serial port can be easily set up a wireless network , remote management and control. Internal integration of multiple communication protocols and encryption algorithms. Requires only a simple setup can be achieved using a variety of occasions. Arduino compatible interface specification , easy to apply to the Arduino project.


Performance description:

1 . Standard Arduino stack design can be easily plugged into a standard Arduino, MEGA, Romeo and other controllers
2 . Embedded IEEE802.11b/g/n wireless network
3 . Supports access point (AP), the client , gateway and serial to WLAN and other models
4 . Support Protocol : UDP, TCP / IP (IPv4), DHCP, ARP, DNS, HTTP / HTTPS Client and Server (*)
5. Supports WEP, WPA/WPA2-PSK, Enterprise, EAP-FAST, EAP-TLS, EAP-TTLS, PEAP Encryption
6. Supports UART, SPI (*), I2C (*) Interface
7 . TTL serial port to support wireless applications
8. Data stream transmission rate : 11,5.5,2 Mpbs (802.11b)
9. Operating voltage : 5V, power consumption <200mA
10. Wireless Standard : IEEE802.11b/g/n
11. Frequency range : 2.4 - 2.497 GHz
12. Output power : 8dBm ± 1dBm
13. Data rate : 54Mbps-1Mbps
14. Modulation type SSS, CCK
15. Dimensions : length 54 × width 49 × height 11mm
16. Weight: about 40g

Note : ( * ) This version does not support tagging feature


Distribution List

I pcs WiFi Shield V2 module
1pcs 3dB wifi antenna







Product Tag : WiFi Shield V2.1
