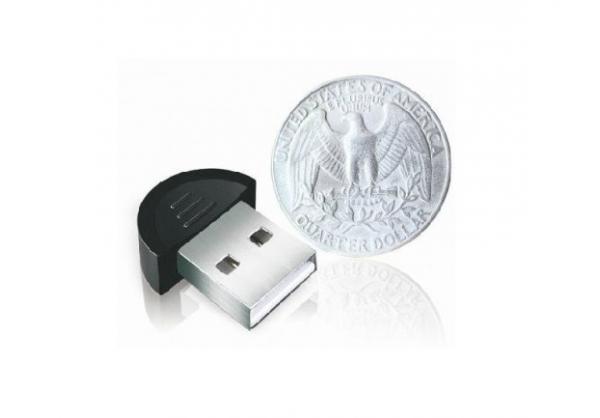

Bluetooth adapter
Introduction :
Bluetooth (Bluetooth) is a wireless network transmission technology originally used to replace the infrared . Compared with the infrared technology, Bluetooth can transmit data without alignment of the transmission distance of less than 10 meters ( infrared transmission distance of a few meters or less ) . And with the help of the signal amplifier , the communication distance and even up to about 100 meters . Bluetooth technology is very suitable for low-power digital devices to share data with each other , such as mobile phones , PDAs , etc. . Moreover, the sound can be transferred between Bluetooth devices , such as Bluetooth headsets . Bluetooth specification widely applied mature version 2.0 , bandwidth is about 3Mbps very suitable for transfer small files (10MB or less pictures, ring tones , e-books , documents , etc. ) to facilitate and speed have both.
Specifications:
Bluetooth standard 2.0 * USB Interface : USB2.0 standard
Operating band between 2.4GHz to 2.483GHz, using FHSS (Frequency Hopping Spread Spectrum ) technology
Open space under the operating range is about 10 meters
Intuitive software user interface, without complicated settings
Applies to Windows 98SE/ME/2000/XP Mac OS X 10.2.6 or above operating system
Sensitivity <-85 dBM
Data transfer rates of up to 3M bps Features
PC / Mac: Bluetooth dial-up Internet access ( requires mobile phones and other devices with Bluetooth )
PC: Bluetooth wireless local area network, while allowing eight computers equipped with Bluetooth device self-contained small wireless network , this feature can also be inserted with Bluetooth connector or computer via Bluetooth wireless base station to the Internet ( to be linked base station or computer must have been connected to the internet)
PC: Bluetooth wireless fax ( the computer need to install fax software )
PC / Mac: Bluetooth file transfer
PC / Mac: Bluetooth wireless data synchronization
PC: Bluetooth virtual serial port
PC: Bluetooth wireless printing
PC / Mac: Bluetooth Human Interface ( Bluetooth mouse and Bluetooth keyboard )
Bluetooth serial port can be connected to a computer , microcontroller , Basic Stamp 2, DF-Bluetooth Bluetooth module , Roboduino or Arduino controller, Bluetooth wireless remote control.
