: Large Image:APC220 USB wireless data transmission module

Product Details:

Place of Origin:	CHINA
Brand Name:	LXXTECH
Model Number:	LXX-0422
Certification:

Payment & Shipping Terms:

Minimum Order Quantity:	5
Price:	Good price
Delivery Time:
Payment Terms:	TT ,paypal,ESCROW
Supply Ability:

Detailed Product Description

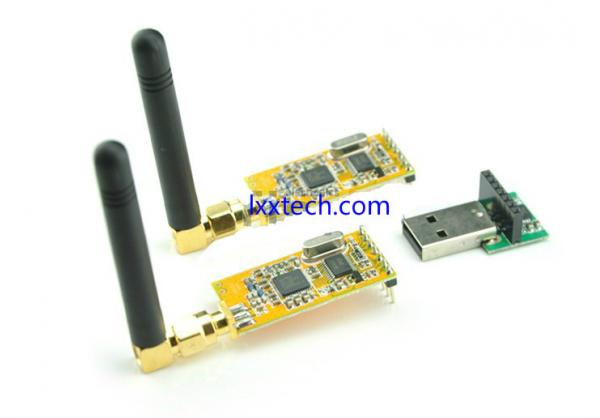

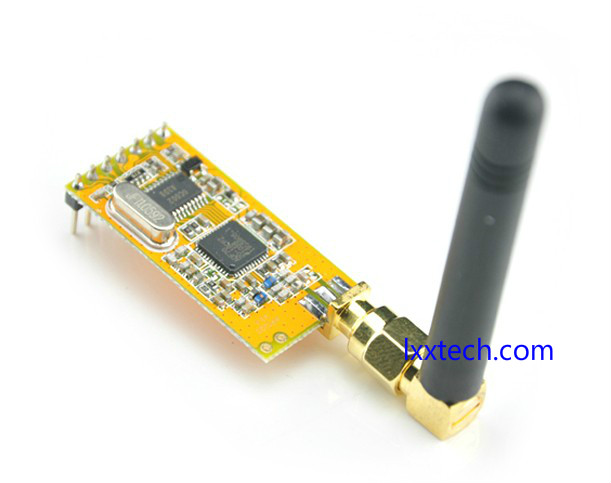

APC220 USB wireless data transmission module

APC220A module is a highly integrated micro-power half-duplex wireless data transmission module, embedded high-speed and high-performance single-chip RF chip, TTL serial interface with a USB converter can realize the communication between the computer and the microcontroller.

Technical Specifications:

1 Operating Frequency 415MHz to 455MHz (1KHz step)

2 Modulation GFSK

3 200KHz frequency interval

4 Transmit Power 20mw (10 adjustable)

5. Receiver sensitivity-117dBm @ 1200bps

6 air transmission rate of 1200 - 19200bps

7 interface rate 1200-57600bps

8 ways interfaces efficacy 8E1/8N1/8O1

9. Interface buffer space 512bytes

10 Working humidity 10% ~ 90% (non-condensing)

11 Operating temperature -20 ℃ - 70 ℃
