APC802 3km wireless transmission kit

APC802 3km wireless transmission kit

 APC802 3km wireless transmission kit factory  APC802 3km wireless transmission kit factory

Large Image:APC802 3km wireless transmission kit

Product Details:

Place of Origin: CHINA
Brand Name: LXXTECH
Model Number: LXX-0423
Certification:

Payment & Shipping Terms:

Minimum Order Quantity: 2
Price: Good price
Delivery Time:
Payment Terms: TT ,paypal,ESCROW
Supply Ability:
Detailed Product Description

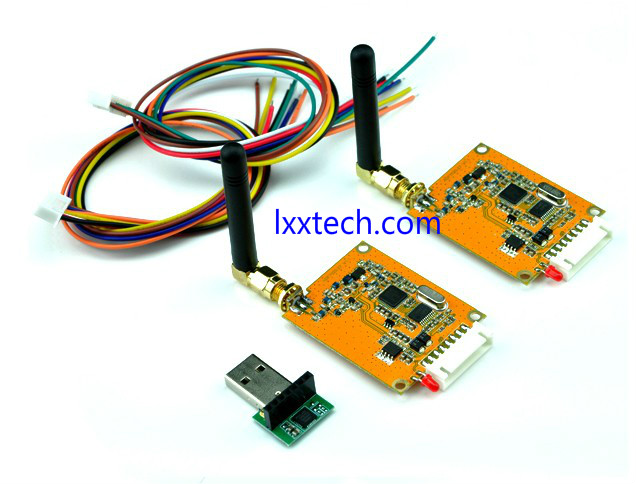

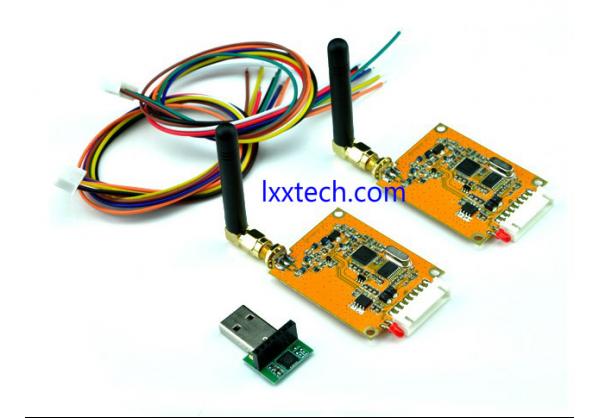

APC802 3km wireless transmission kit

APC802-43 module is a highly integrated micro-power half-duplex wireless data transmission module , embedded microcontroller and ADI high-speed high-performance RF chip ADF7020-1. Innovative use of efficient error correction coding cycle intertwined , interference and sensitivity are greatly improved , the maximum continuous burst 24bits can correct the error , reached the leading level in the industry. APC802-43 module provides a number of channels, various parameters can be modified online serial rate , transmit power , RF and rate. APC802-43 module can transparently transmit data of any size , and users do not need to write complex setup and transfer process, while the small size wide-voltage operation, far transmission distance , rich and convenient software programming capabilities to enable applications with a very wide range field.

Features:

2800-3200 meters transmission distance (9600bps)
Operating frequency 418-455MHz
Communication channels to 0.2MHz for the step , continuously adjustable
Transmit Power : 500mW adjustable ) , supply voltage : 4.7 - 6.5V
Current consumption : 35mA ( receiver ), 400mA ( transmitter )
UART interface , RS232 / RS485 optional one
Greater than 100 channels
GFSK modulation
Efficient interleaving error correction coding cycle , the maximum continuous burst error correction 24bits
Flexible software programming options
Large data buffer 2 × 256bytes
Suitable for large amount of data
Built-in watchdog to ensure long-term reliable operation
Dimension : 60.0 × 43.0 × 14.0 (mm)

Application:

Wireless sensor
Home Automation
Wireless meter reading
Automated data collection
Remote control and monitoring
POS systems, asset management
Building automation and security
Robot Control
Vehicle Management
Meteorology, remote sensing
