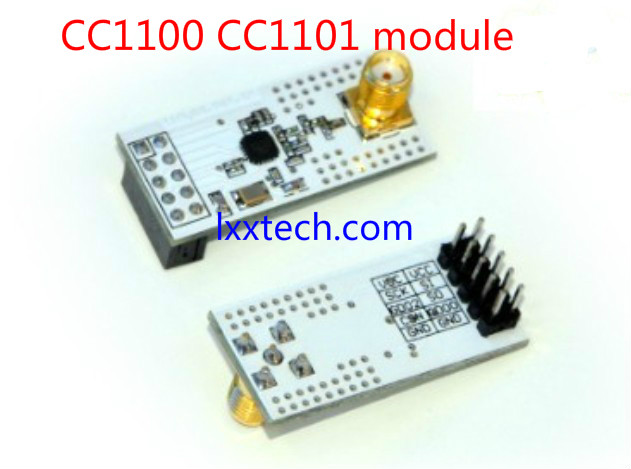

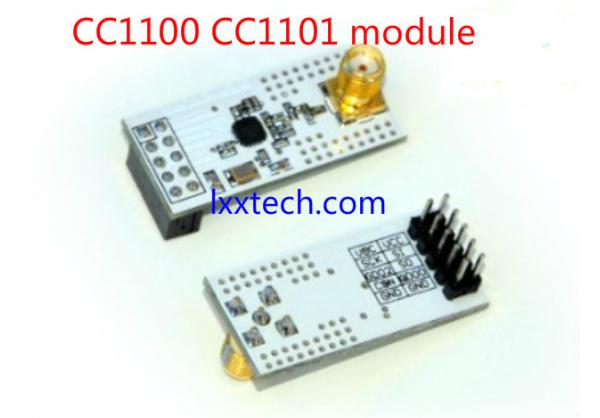

CC1100/1101 micro-power wireless transmission module
Introduction :
Micro Wireless produced CC1100/1101 bone micro- power wireless data transmission module , using TI-Chipcon 's high performance CC1100/1101 wireless communications chips , the maximum transfer rate of up to 500Kbps, and software changes the baud rate , broaden the transmission distance up to 250-300 meters , high reliability , and can be widely applied in the field of short-range wireless communications for all occasions ( such as wireless meter reading, industrial remote control , low-power handheld devices , etc. )
the performance characteristics:
( 1 ) Operating voltage : 1.8V ~ 3.6V, recommend close to 3.6V, but not more than 3.6V ( recommended 3.3V)
( 2 ) Work on the use of license-free 433MHz band
( 3) The maximum rate of 500kbps, support for 2-FSK, GFSK and MSK modulation
( 4 ) can change the baud rate parameter software to better meet customer requirements in different conditions
High baud rate : faster data transfer rates
Low Baud rate: transmission distance and stronger anti-interference ability to penetrate farther
( 5 ) high sensitivity (1.2Kbps under -110dBm, 1% packet error rate )
( 6 ) built-in hardware CRC error detection and control multipoint communication address
( 7 ) a lower current consumption (RX in , 15.6mA, 2.4Kbps, 433MHz)
( 8 ) programmable control of output power, support for all frequencies up to +10 dBm
( 9 ) wireless wake-up function , supports low-power electromagnetic activation , wireless wake- low-power sleep state devices
( 10 ) Support automatic cleanup before transmission channel access (CCA), namely Carrier Sense System
Appropriate frequency hopping systems ( 11 ) fast frequency synthesizers brings changes
( 12 ) modules can be software set address , software programming is very convenient
( 13 ) Standard DIP spacing interfaces for embedded applications
( 14 ) separate 64-byte RX and TX data FIFO
( 15 ) open to the actual transmission distance 250-300 meters ( depending on the specific environment and communication baud rate dependent )
( 16 ) Module size : 35mm * 16mm * 1mm
