NRF24L01 + PA + LNA chip interfaces / 1.27MM / small size / IPX external antenna

: Large Image:NRF24L01 + PA + LNA chip interfaces / 1.27MM / small size / IPX external antenna

Product Details:

Place of Origin:	CHINA
Brand Name:	LXXTECH
Model Number:	LXX-0440
Certification:

Payment & Shipping Terms:

Minimum Order Quantity:	50
Price:	Good price
Delivery Time:
Payment Terms:	TT ,paypal,ESCROW
Supply Ability:

Detailed Product Description

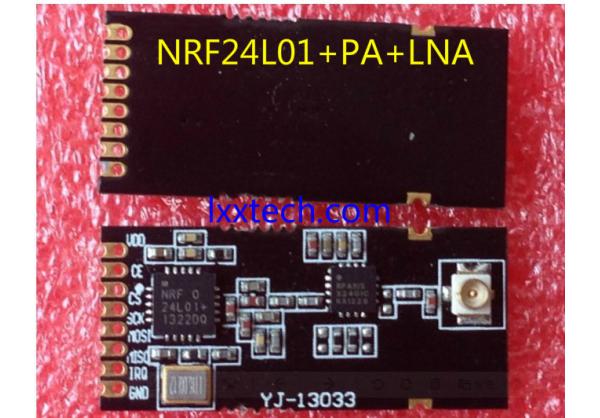

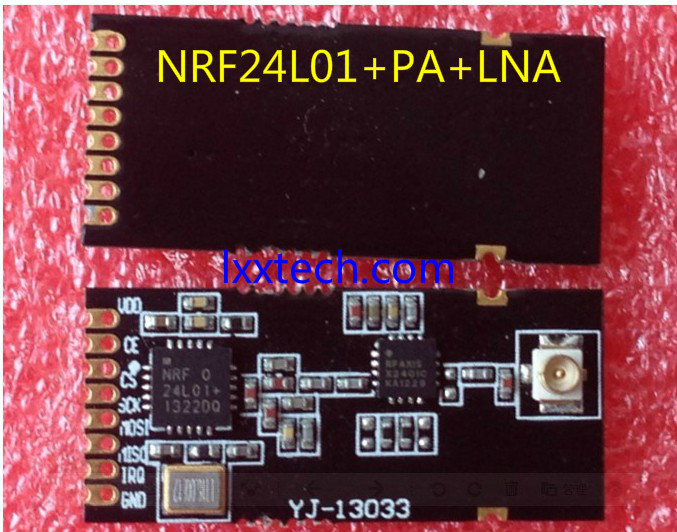

NRF24L01 + PA + LNA chip interfaces / 1.27MM / small size / IPX external antenna

Product Features:

1.2.4G open global ISM band, the maximum 20dBm transmit power, license-free use

2. Support six channels of data reception, 2Mbit / s high-quality VoIP makes it possible to

Under 3.2MBPS speed peak current of 25mA when receiving

4. The peak current at 2Mbit / s rate @ 0dBm output of 45mA

5-power-down mode 400nA

6 32uA in standby mode power consumption

7.130us fast switching and wake-up time

8 low-voltage operation in 2.2Vto3.6V

9. 27mm * 12mm ultra-small size

10 Module pin standard SMD 1.27mm

Applications:
remote control, telemetry, wireless meter reading, access control systems, paging, industrial data acquisition systems, wireless tag

Identification, RF contactless smart cards, small wireless data terminals, fire safety systems, wireless remote control system

Systems, bio-signal acquisition, wireless 232, wireless 422/485 data communications.

Product Tag : NRF24L01 + PA + LNA 1.27MM
