NRF24L01 + PA + LNA-YJ-1201 wireless module / long distance 1100 m / small size

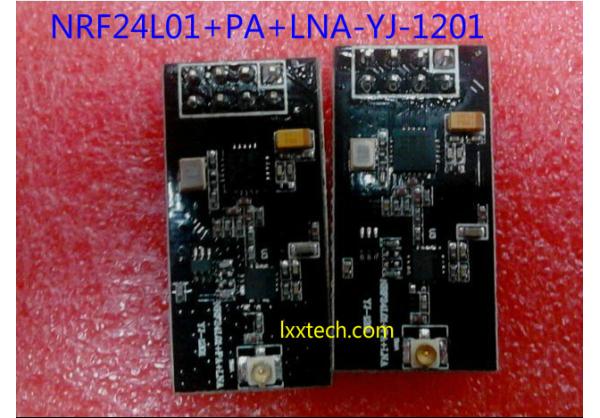

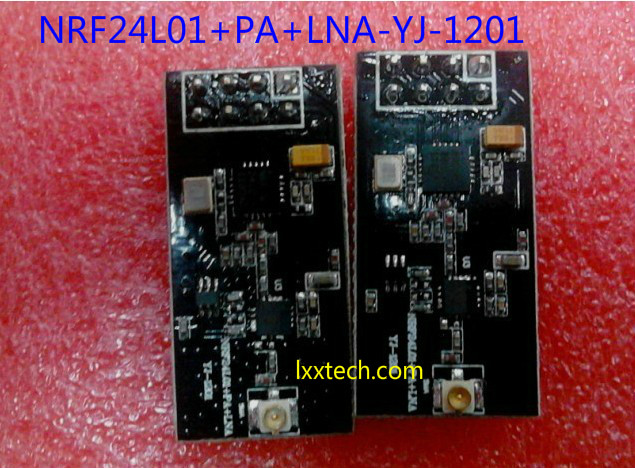

: Large Image:NRF24L01 + PA + LNA-YJ-1201 wireless module / long distance 1100 m / small size

Product Details:

Place of Origin:	CHINA
Brand Name:	LXXTECH
Model Number:	LXX-0444
Certification:

Payment & Shipping Terms:

Minimum Order Quantity:	20
Price:	Good price
Delivery Time:
Payment Terms:	TT ,paypal,ESCROW
Supply Ability:

Detailed Product Description

NRF24L01 + PA + LNA-YJ-1201 wireless module / long distance 1100 m / small size

NRF24L01 + PA + LNA module 2.4G wireless long distance down the rate of 250K,

From the open area is about 1100 meters, at a rate of 1M, open to a distance of about 750 meters, at a rate of 2M from the open area is about 520 meters, the maximum transmit power 20DBM, received power LNA maximum 10DBM

Data rates up to 2Mbps

Supports six node network

Radio channel supports 125

Very low power consumption

High sensitivity external antenna connector (next to keep external antenna connector)

PA and LNA with low noise amplification amplification for ultra-long-distance transmission of data

The output power can be software settings

Typical applications

Long distance remote

Remote wireless meter reading system

Remote wireless monitoring system

Long-range wireless data acquisition system

Remote VOIP system

Remote access control systems,

Remote paging area,

Long-distance wireless tag

232 long-range wireless radio 422/485 Data Communications

Professional Wireless Center
