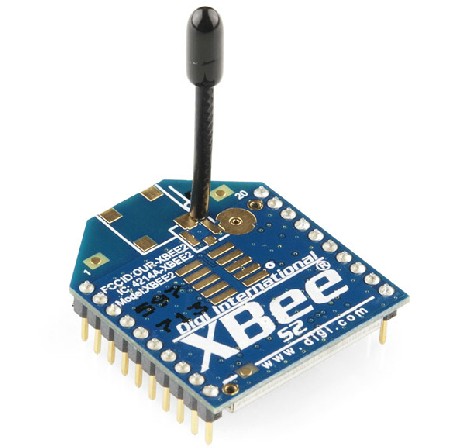

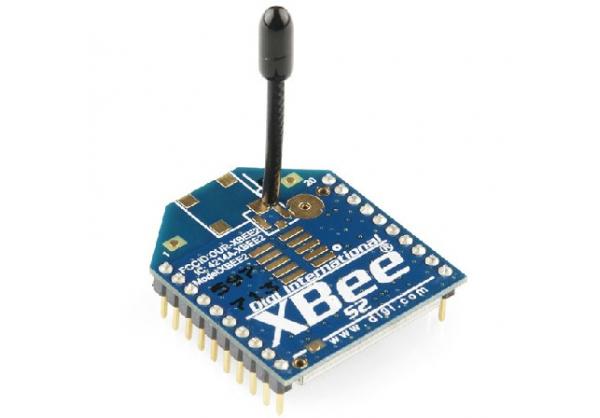

: Large Image:XBee S2 2mW Zigbee wireless module,120meters

Product Details:

Place of Origin:	CHINA
Brand Name:	LXXTECH
Model Number:	LXX-0406
Certification:

Payment & Shipping Terms:

Minimum Order Quantity:	5
Price:	Good price
Delivery Time:
Payment Terms:	TT ,paypal,ESCROW
Supply Ability:

Detailed Product Description

Introduction:

Xbee module is a ZigBee wireless module technology, such as through inter-serial device to communicate with the microcontroller, can very quickly achieve the purpose of the device is connected to a ZigBee network.

This is a 2.4G's XBee wireless module. This module uses the 802.15.4 protocol stack, through serial interface between the microcontroller and other devices to communicate, to support point-to-multipoint communications and networking. This module is the antenna wire antenna, simple and convenient.

Parameters:

3.3V @ 50mA

The maximum communication speed 250kbps

1mW output (+0 dBm)

400 feet (120 meters) communication distance

Wire antenna

Fully FCC certified

6 10-bit ADC input pins

8 digital IO pins

128-bit encryption

Local or over-air configuration

AT or API command set
