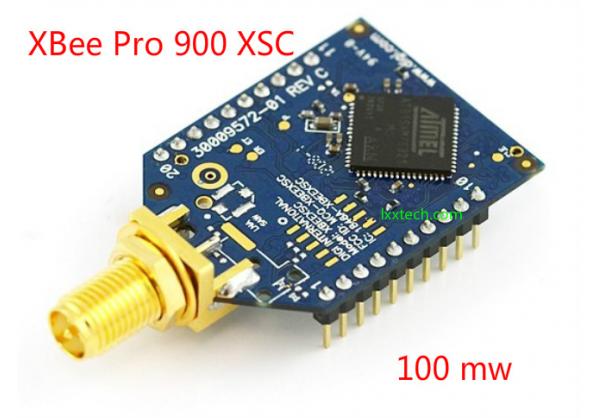

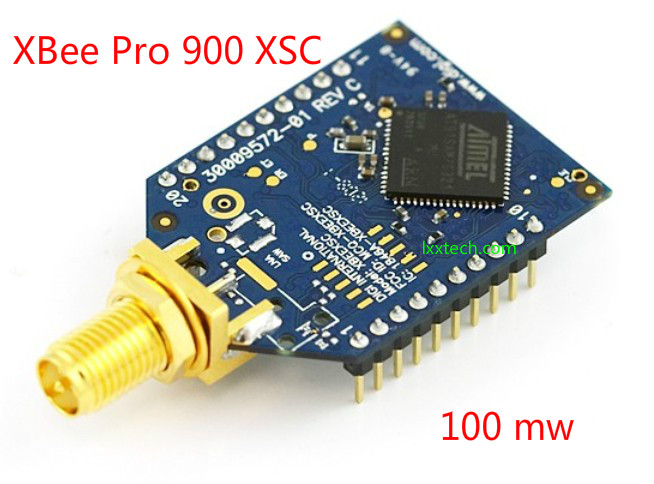

XBee Pro 900 XSC RPSMA 100 mw 24 kilometers Zigbee wireless digital transmission

: Large Image:XBee Pro 900 XSC RPSMA 100 mw 24 kilometers Zigbee wireless digital transmission

Product Details:

Place of Origin:	CHINA
Brand Name:	LXXTECH
Model Number:	LXX-0404
Certification:

Payment & Shipping Terms:

Minimum Order Quantity:	2
Price:	Good price
Delivery Time:
Payment Terms:	TT ,paypal,ESCROW
Supply Ability:

Detailed Product Description

XBee Pro 900 XSC RPSMA 100 mw 24 kilometers Zigbee wireless digital transmission

Xbee module is using ZigBee technology of wireless module, serial communication between devices, and singlechip can very quickly realize the equipment the purpose of access to the ZigBee network.

Using a high gain antenna can achieve 24 km transmission distance.

XBee PRO 900 XSC rf module is very suitable for low latency of point to multipoint communication, its a point-to-point communication, point to multipoint communication ability, XBee PRO 900 XSC is the first choice for those with the highest requirements of transmission distance wireless module.

As a member of the DIGI family, the module is easy to use, and has the same pin definition between modules. Common application without configuration, advanced configuration can be done through a simple serial the AT command.

Model: XBP09 - XCSIT - 009

Parameters:

3.3 V @ 256 ma

The highest 9.6 KBPS baud rate

100 mW (+ 17 dBm) power output

Top 15 miles (24 kilometers) transmission distance (configuration high-gain antenna)

RPSMA antenna interface

Local or wireless data configuration

Industrial (40 ° C to + 85 ° C) temperature range

Support large and dense networks

128 - bit AES encryption

The ISM 900 MHz operating frequency

The Advanced mesh networking and low power modes supported

Product Tag : XBee Pro 900 XSC 100 mw
