: Large Image:XBee S2 1mW Zigbee wireless module,120meters

Product Details:

Place of Origin:	CHINA
Brand Name:	LXXTECH
Model Number:	LXX-0431
Certification:

Payment & Shipping Terms:

Minimum Order Quantity:	5
Price:	Good price
Delivery Time:
Payment Terms:	TT ,paypal,ESCROW
Supply Ability:

Detailed Product Description

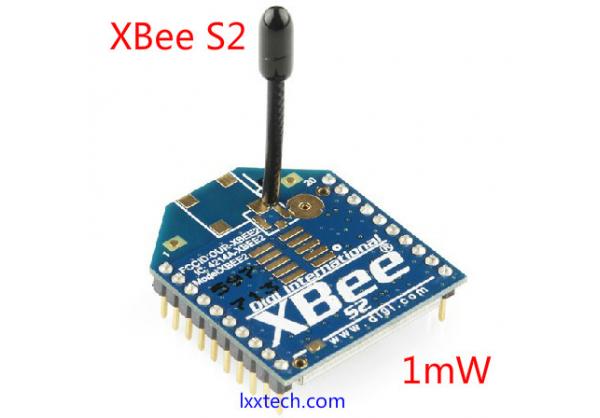

XBee S2 1mW Zigbee wireless module,120meters

1.Brief introduction

Xbee module is a ZigBee wireless module technology, such as through inter-serial device to communicate with the microcontroller, can very quickly achieve the purpose of the device is connected to a ZigBee network.

This is a 2.4G's XBee wireless module. This module uses the 802.15.4 protocol stack, through serial interface between the microcontroller and other devices to communicate, to support point-to-multipoint communications and networking. This module is the antenna wire antenna, simple and convenient.

Parameters:

3.3V @ 50mA

The maximum communication speed 250kbps

1mW output (+0 dBm)

400 feet (120 meters) communication distance

Wire antenna

Fully FCC certified

6 10-bit ADC input pins

8 digital IO pins

128-bit encryption

Local or over-air configuration

AT or API command set

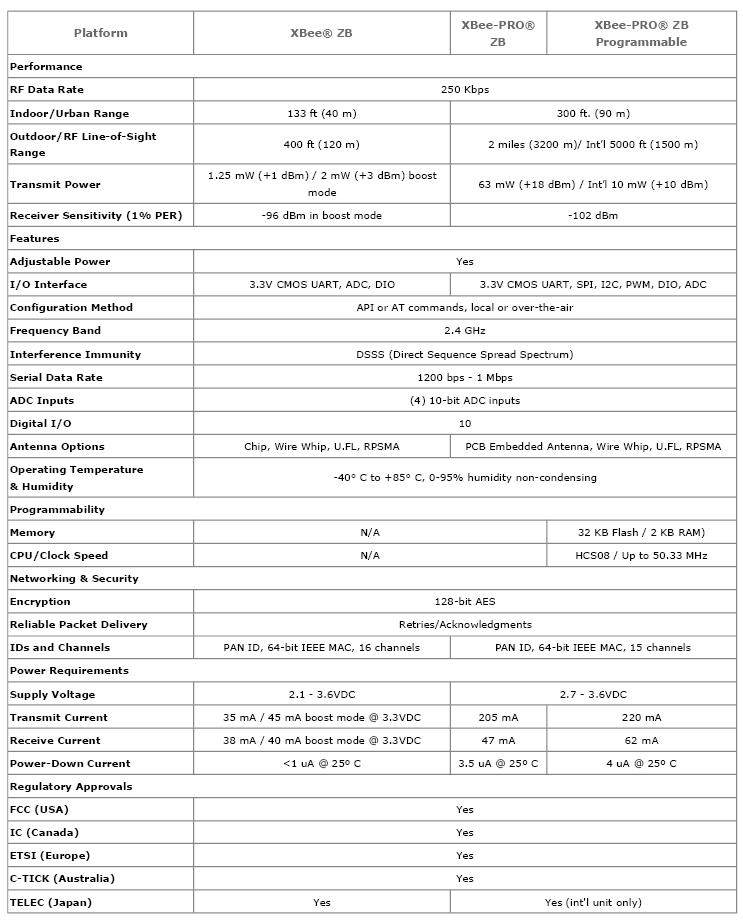

2. Technical parameters:

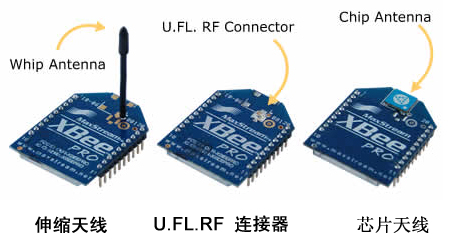

3.The antenna Interface

XBee module can be equipped with PCB chip antenna, a monopole antenna integrated wound, or can be connected to a bipolar or other external antenna U.FL antenna connector.

The telescopic antenna and the chip antenna is suitable for any application, especially for embedded applications. As the wireless signal can not be transferred or sealing in plastic, so you can be completely enclosed in this category applications antenna.

If the sealing is metal, or solutions to the physical characteristics of high demand, U.FL connector can be used to connect the adapter cable and a dipole antenna. Different types of antenna distance is different, so you need to carefully consider and select the type of antenna you need.

Product Tag : XBee S2 1mW
