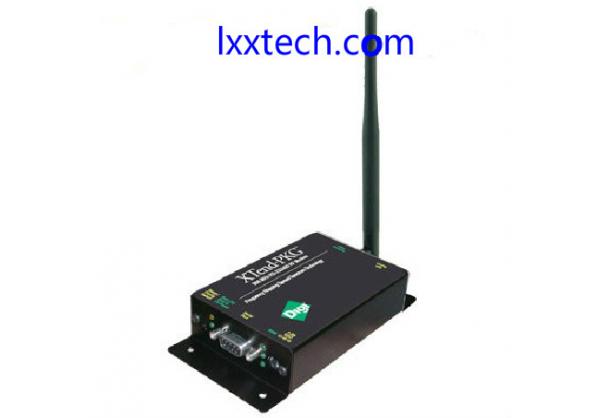

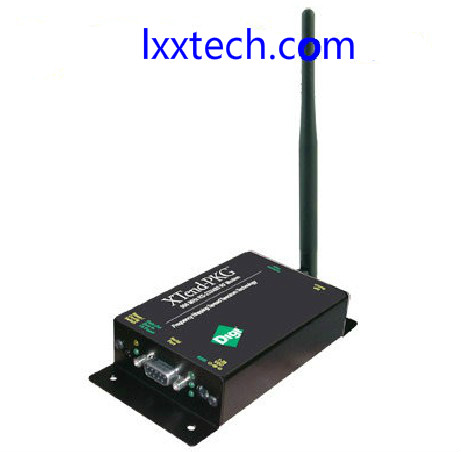

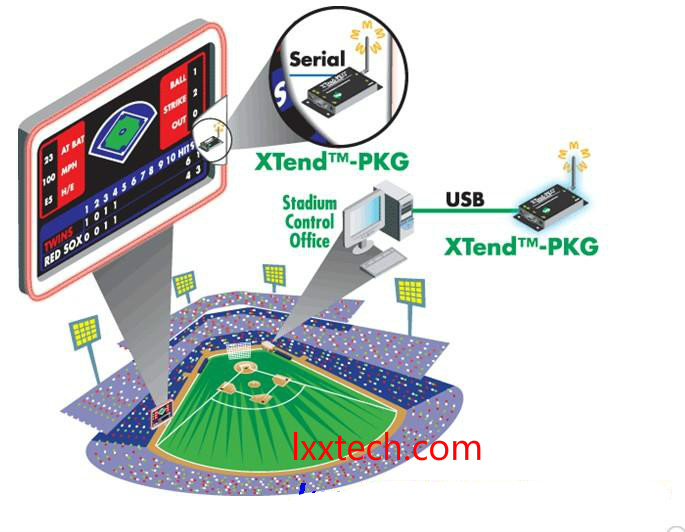

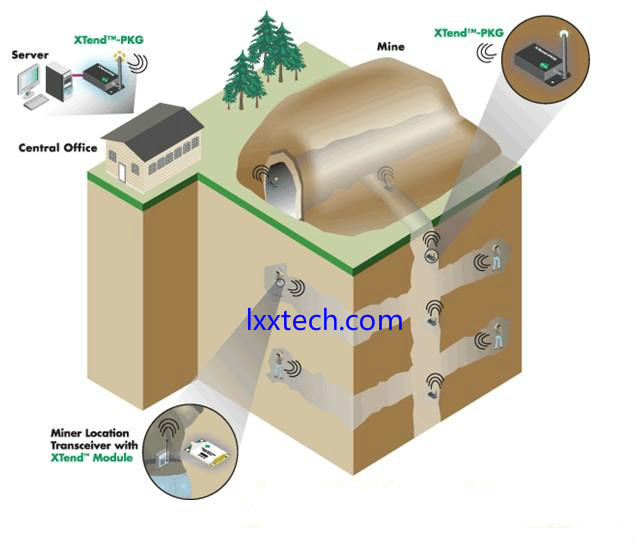

DIGI / XBEE XTend / digital radio / 900M...

Performance

• Indoor/Urban range (w/ 2.1 dB dipole antenna): Up to 3000 feet (900 m)
• Outdoor RF line-of-sight range (w/ high gain antenna): Up to 40 miles (64 km)
• Outdoor RF line-of-sight range (w/ 2.1 dB dipole antenna): Up to 14 miles (22 km)
• Transmit power output (software selectable): 1mW - 1W (0 - 30 dBm)
• Interface data rate: 10 - 230,400 bps (including non-standard baud rates)
• Receiver sensitivity: -110 dBm (@9,600 bps throughput data rate), -100 dBm (@115,200 bps)
• Throughput data rate (software selectable): 9,600 or 115,200 bps
• RF data rate: 10,000 bps (@9,600 bps throughput data rate)

Power Requirements

• All models
  • Power supply voltage: 7 - 28V
• XTend-PKG-R
  • Receive current: 110 mA
  • Pin sleep power-down: 17 mA
  • Serial port sleep power-down: 45 mA
  • Idle current (various cyclic sleep intervals): 19 - 39 mA
  • Transmit current (1 mW - 1W TX power output): 110 - 900 mA
• XTend-PKG-U
  • Receive current: 100 mA (Self Power)
  • Pin sleep power-down: 17 mA
  • Serial port sleep power-down: 45 mA
  • Idle current (various cyclic sleep intervals): 21 - 35 mA (Self Power)
  • Transmit current (1 mW - 1W TX power output): 88 - 480 mA
• XTend-NEMA
  • Receive current: 100 mA
  • Pin sleep power-down: 17 mA
  • Serial port sleep power-down: 45 mA
  • Idle current (various cyclic sleep intervals): 19 - 39 mA
  • Transmit current (1 mW - 1W TX power output): 110 - 900 mA

Networking & Security

• Frequency: ISM 902 - 928 MHz
• Spread Spectrum: FHSS (Frequency Hopping Spread Spectrum)
• Modulation: FSK (Frequency Shift Keying)
• Supported Network Topologies: Peer-to-peer (no master/slave dependencies), point-to-point, point-to-multipoint and multidrop
• Channel Capacity: 10 hop sequences share 50 frequencies
• Encryption: 256-bit AES Encryption - AES algorithm meets Federal Information Processing Standard-197 (FIPS-197)

Antenna

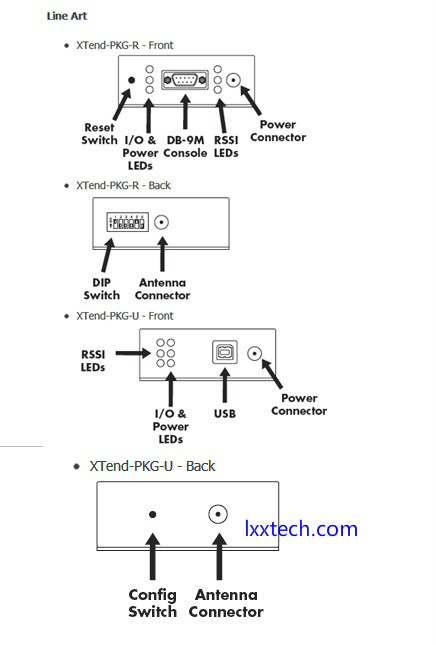

• XTend-PKG-R, XTend-PKG-U
  • Connector: RPSMA (Reverse Polarity SMA)
  • Impedance: 50 ohms unbalanced
• XTend-NEMA (Weatherproof)
  • Connector: MMCX
  • Impedance: 50 ohms unbalanced

Environmental

• XTend-PKG-R, XTend-PKG-NEMA
  • -40º C to 85º C (industrial)
• XTend-PKG-U
  • 0º C to 70º C (commercial)

Certifications

• All models
  • FCC Part 15.247: OUR-9XTEND
  • Industry Canada (IC): 4214A-9XTEND
• NEMA enclosure
  • IP 66/67, IP 66
  • IK 08
  • NEMA 1, 4, 4X, 6 (12 and 13)
  • UL 94-5V, UL 508

Connection Options

• RS-232/422/485, DB-9 (XTend-PKG-R)
• USB (XTend-PKG-U)
• RS-232/422/482, DB-9/screw terminal (XTend-PKG-NEMA)

Dimensions

• XTend-PKG-R, XTend-PKG-U,
  • Length: 2.75 in (6.99 cm)
  • Width: 5.50 in (13.97 cm)
  • Depth: 1.13 in (2.86 cm)
  • Weight: 7.10 oz (200 g)
• XTend-NEMA
  • Length: 5.13 in (13.02 cm)
  • Width: 7.13 in (18.10 cm)
  • Depth: 1.50 in (3.81 cm)
  • Weight: 12.30 oz (348.70 g)
