24V trigger switch is normally closed off the trigger delay relay module high current 30A

24V trigger switch is normally closed off the trigger delay relay module high current 30A factory 24V trigger switch is normally closed off the trigger delay relay module high current 30A factory 24V trigger switch is normally closed off the trigger delay relay module high current 30A factory

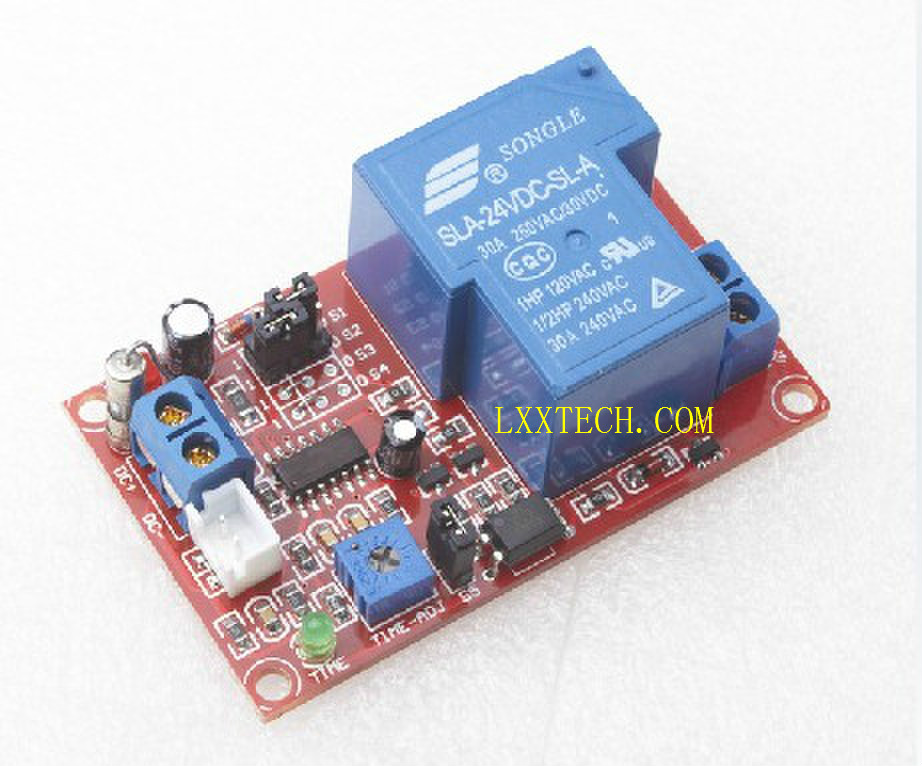

Large Image:24V trigger switch is normally closed off the trigger delay relay module high current 30A

Product Details:

Place of Origin: CHINA
Brand Name: LXXTECH
Model Number: LXX-0264
Certification:

Payment & Shipping Terms:

Minimum Order Quantity: 10
Price: Good price
Delivery Time:
Payment Terms: TT ,paypal,ESCROW
Supply Ability:
Detailed Product Description

24V trigger switch is normally closed off the trigger delay relay module high current 30A

This module , 24V DC power supply , with a load of up to 30A, support normally closed switch trigger , trigger delay switch off type , widely used in various fields such as machinery and equipment , welcome to wholesale.

Application:

This module is 24V DC power supply for the development of new products, instant disconnect switch that can trigger delay , mainly used in vibration alarm , open circuit alarm is triggered , machinery and equipment , automation equipment modifications , PLC industrial control .

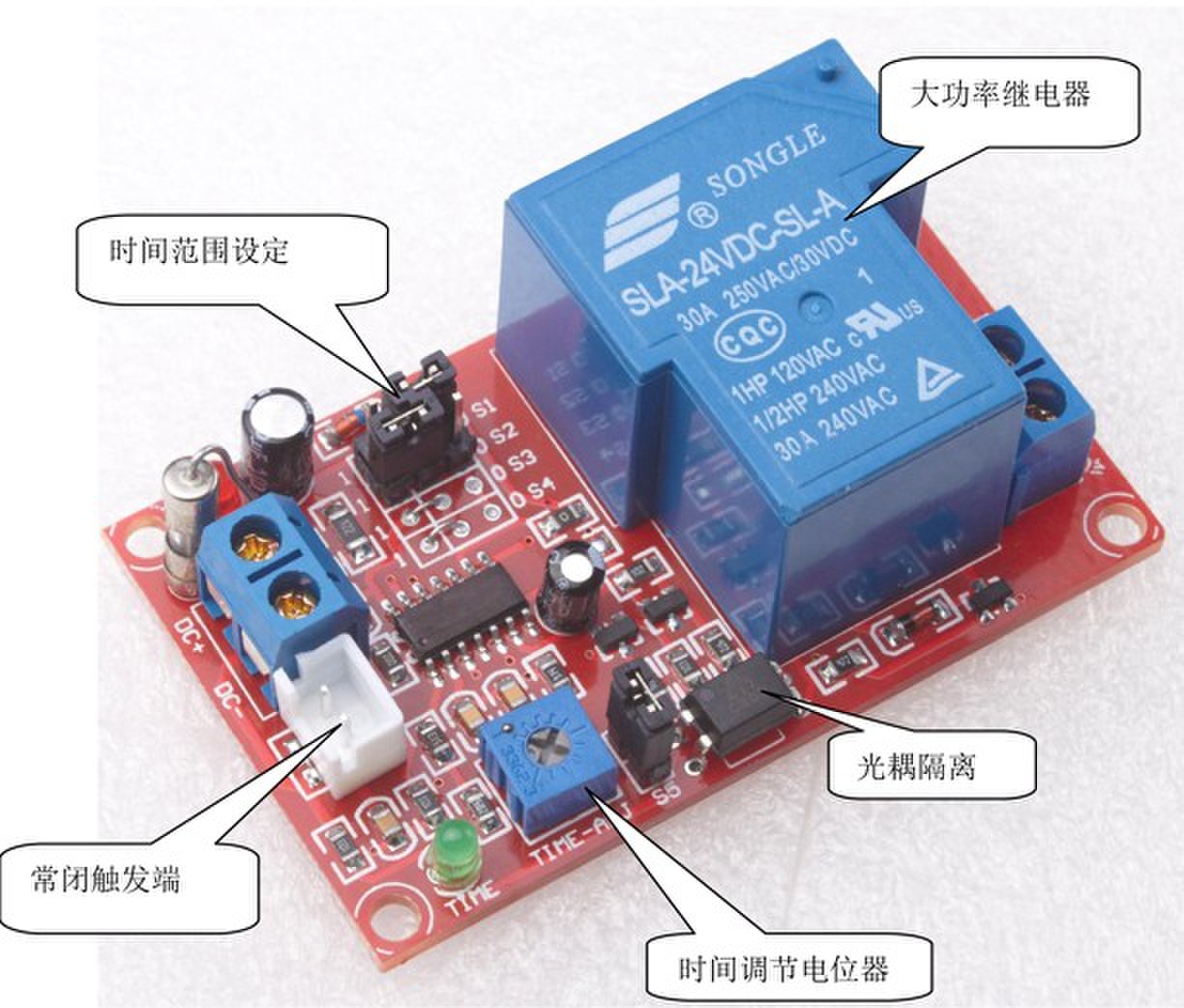

Product description:

1 The use of advanced high-quality timing chip control, accurate timing ;
2. using ultra- high-power relay control loads , up to 30A;
3 trigger side with opto isolation , scrambling interference ability , to avoid false triggering ;
4 with eight selectable time range , the shortest 0.1 second most up to 1 hour ;
5 delay with potentiometer adjustment clockwise adjustment time will be longer ;
6 delay switch with power indicator and instructions .

Features:

NC Features: In the absence of pre-trigger , the trigger was the end of the circuit is closed , if transient or persistent disconnect disconnect module can trigger delay , the relay
1 pass on the 24v DC power supply module , whether the client has to wait for the trigger trigger signal ;
2. When the module has sensed an instant trigger terminal open , the module will start delay function, while relay , delay expires , the relay is disconnected ;
3 When the module is triggered delay , if there is a trigger signal is received again , the module will re-timing , automatically trigger the last time until the delay is over .
Electrical parameters:
Input voltage : 24VDC
Static current : 12mA
Maximum power consumption : 52mA
Relay load capacity : 250V 30A AC ; 30V 30A DC
