51 SCM minimum system board / board / learning board (serial download) Support AVR Microcontroller

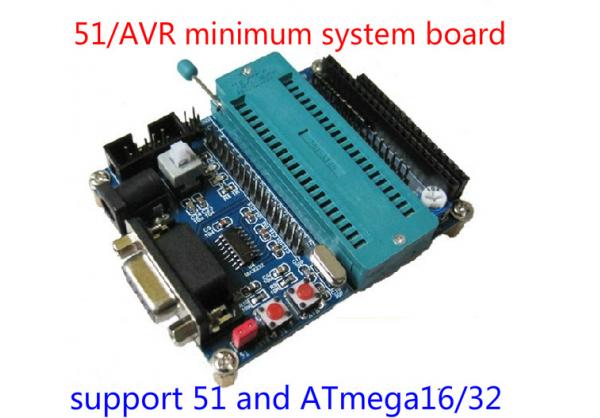

: Large Image:51 SCM minimum system board / board / learning board (serial download) Support AVR Microcontroller

Product Details:

Place of Origin:	CHINA
Brand Name:	LXXTECH
Model Number:	LXX-0557
Certification:

Payment & Shipping Terms:

Minimum Order Quantity:	5
Price:	Good price
Delivery Time:
Payment Terms:	TT ,paypal,ESCROW
Supply Ability:

Detailed Product Description

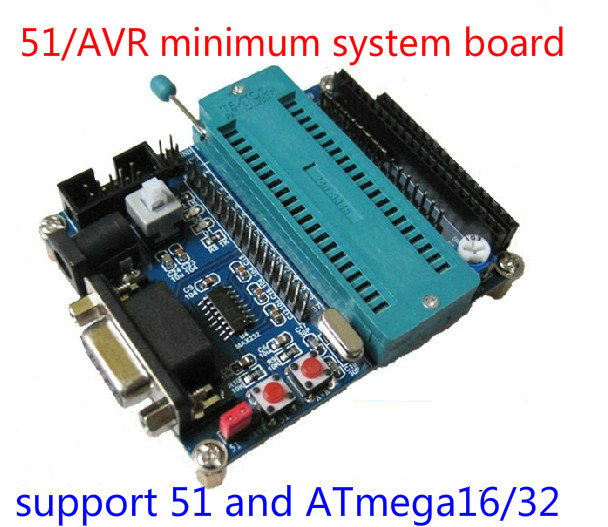

51 SCM minimum system board / board / learning board (serial download) Support AVR Microcontroller

1 support chips :

STC : STC89C52 STC12C5A60S2 STC11/10x Series

ATmel: AT89S51, AT89S52 series

AVR Series : ATmea16 ATmega32 ( need 51/avr adapter plate for use ) Link URL : http://item.taobao.com/item.htm?id=12645269855 &

2 , the locking seat onboard 40PIN convenient single chip to take place .

3 , all the way to the serial port can be used to make 232 serial communications test , while STC Series MCU can be used to download the program .

4 , 1602 and 12864 external expansion interfaces ( 12864 LCD interface supports color ) , to facilitate liquid crystal experiments.

5 , power supply : Power adapter connector supply (DC4.5-5.5V). Does not support downloads powered , this board requires a separate power supply .

6 , the microcontroller IO pin all the leads , users can expand the test done according to the actual situation.

7 , a standard ISP download cable interfaces on the board , you can easily cope with the shop to have the ISP download cable USBASP function microcontroller ( such as AT89S51, AT89S52) burning procedures.

8 , crystal using pluggable architecture , users can replace the crystal experiment .

9, the four pillars fixed , easy to use and placement.

10 Reset: reset and power-on reset button

11, P0 port with pull -up resistor.

12 , 2-way external expansion +5 V, GND power supply interface , convenient external experiments.

13 , board size : 7.5 * 6.5cm

14 , the power indicator (D1), the program is running lights (D2).

Shipping list :

1.1x microcontroller development board ( excluding SCM )

2 four pairs of studs nuts
