BD2 + GPS Combo Compass II dual-mode dual system / BD-126 navigation timing module development board

BD2 + GPS Combo Compass II dual-mode dual system / BD-126 navigation timing module development board factory BD2 + GPS Combo Compass II dual-mode dual system / BD-126 navigation timing module development board factory BD2 + GPS Combo Compass II dual-mode dual system / BD-126 navigation timing module development board factory

Large Image:BD2 + GPS Combo Compass II dual-mode dual system / BD-126 navigation timing module development board

Product Details:

Place of Origin: CHINA
Brand Name: LXXTECH
Model Number: LXX-0466
Certification:

Payment & Shipping Terms:

Minimum Order Quantity: 2
Price: Good price
Delivery Time:
Payment Terms: TT ,paypal,ESCROW
Supply Ability:
Detailed Product Description

BD2 + GPS Combo Compass II dual-mode dual system / BD-126 navigation timing module development board

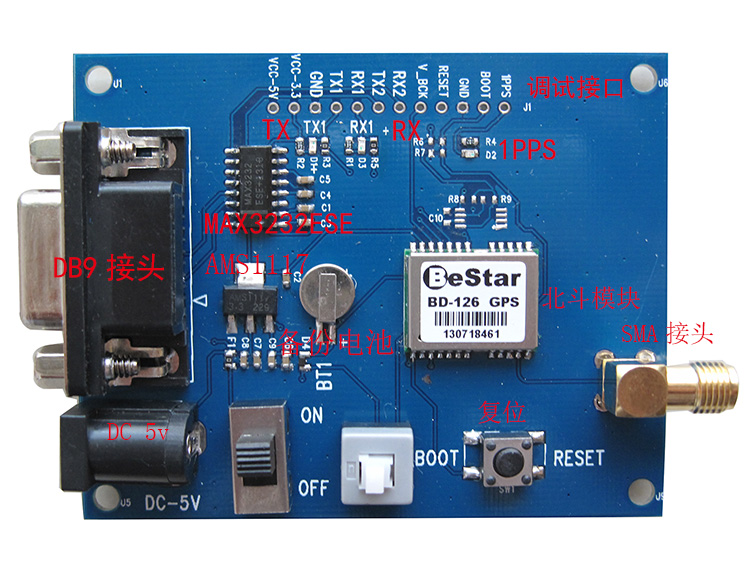

This set includes the development board: development board (with module), Compass GPS dual-antenna, power supply.

Lets you directly to the computer, let the computer to establish communication with the module, you can easily test various performance Compass module.
BD-126 models Beidou GPS module is a dual-mode support Beidou II and the high-performance integrated GPS module , this module is a
Complete GPS receiver equipment, with a full range of features to meet the stringent requirements of professional orientation and personal consumption needs .
The product can be used to develop a variety of navigation terminal products such as: car navigation , car security systems, vehicle monitoring and other satellite
Positioning applications. This paper describes in detail the BD-126 dual-mode models Beidou GPS module electrical, mechanical and other properties.


Power supply: DC voltage : 2.8V-4.3V Typical : 3.3V
Power consumption ( mixed mode ) : Capture 25mA @-130dBm
                 17mA @-130dBm tracking
                 Standby 0.5mA @ VCC = 3.3V
Receiver sensitivity : -148dBm cold start
           Capture -160mA @
           Track -163mA @
 Positioning time ( non- EASY mode ) : Cold start average 31S @-130dBm
                         Warm start average 30S @-130dBm
                         Hot start 1S @-130dBm

Horizontal positioning accuracy (@-130dBm): <2.5m CEP
Output frequency : Up to 10Hz, 1Hz by default

1PPS Accuracy : <15 ns
           Pulse width 100ms
Speed ​​Accuracy : 0.1m / s (wihtout aid)
Acceleration Tracking Accuracy : 0.1m / s (wihtout aid)
Dynamic characteristics: maximum height of 18,000 M
          The maximum speed of 515m / s
         Maximum acceleration 4G

UART interfaces : UART Port: TXDA and REXDA
           Support Rate : 4800bps to 115200bps, default 9600bps
            UART output for NAME , debugging and firmware upgrade
Temperature range: Operating temperature: -40 degrees - +85 degrees Celsius
          Storage temperature: -45 degrees - +125 degrees Celsius



Product Tag : BD-126 navigation timing module development board
