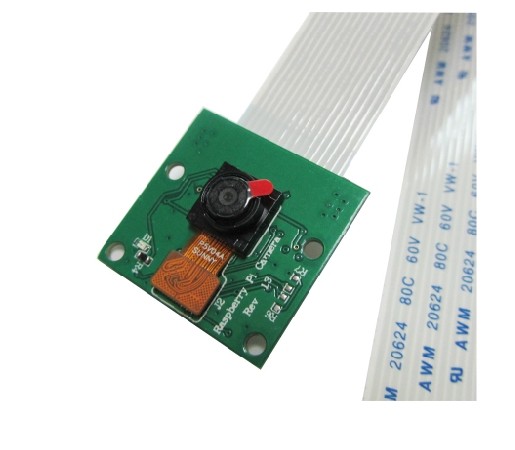

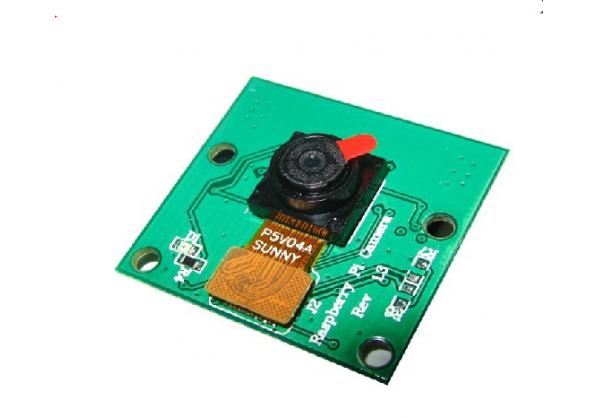

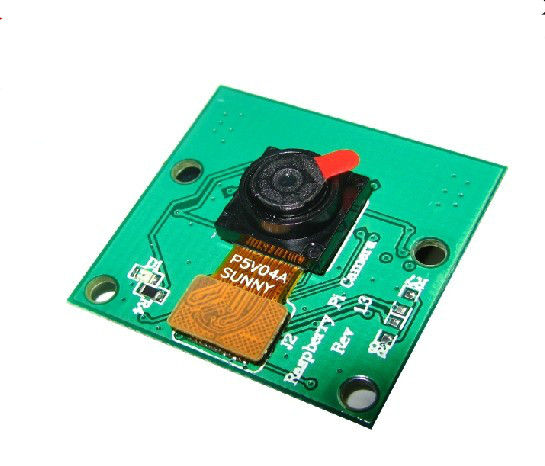

Raspberry PI raspberry pie camera module...

Method of use:

硬件连接：

The hardware connection:

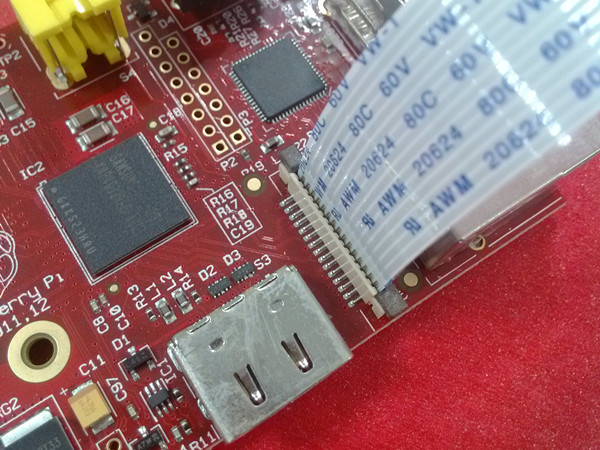

1 soft line, a 90 degree vertical connectors, HDMI port next to the. Connection contact side toward the HDMI interface.

2. 使用前撕掉镜头上的保护膜

2 before use tear the film lens

3. 裸板，注意ESD伤害，谨防静电！

3 bare board, ESD damage, beware of electrostatic!

软件使用：

Software used:

1. RPi固件和raspi-config已经为了摄像头更新，请执行一次apt-get update; apt-get upgrade;

1 RPi firmware and raspi-config camera has to update, please perform a apt-get update; apt-get upgrade;

2. raspi-config中选择camera，启动RPi固件中的摄像头驱动，然后重启

Select the camera 2 raspi-config, start the RPi firmware camera driver, and then restart

3. 使用命令行程序raspivid和raspistill操作摄像头，捕捉视频片段或图像

3 use the command line program raspivid and raspistill camera, capture video clips or images

4. 捕捉到的视频片段需要用mplayer播放

4 to capture video clips with Mplayer player

如何将摄像头的数据通过网络直播播发出去：

How will the camera data through network live broadcasting:

通过nc命令（ncat - Concatenate and redirect sockets）将摄像头的输入数据，直接重定向到网络端口实现输出

The NC command (NCAT - Concatenate and redirect sockets) will be the input data of the camera, a network port directly to redirect output
