CP2102 module USB to TTL USB to serial module UART STC Downloader Brush upgrade board

: Large Image:CP2102 module USB to TTL USB to serial module UART STC Downloader Brush upgrade board

Product Details:

Place of Origin:	CHINA
Brand Name:	LXXTECH
Model Number:	LXX-0534
Certification:

Payment & Shipping Terms:

Minimum Order Quantity:	50
Price:	Good price
Delivery Time:
Payment Terms:	TT ,paypal,ESCROW
Supply Ability:

Detailed Product Description

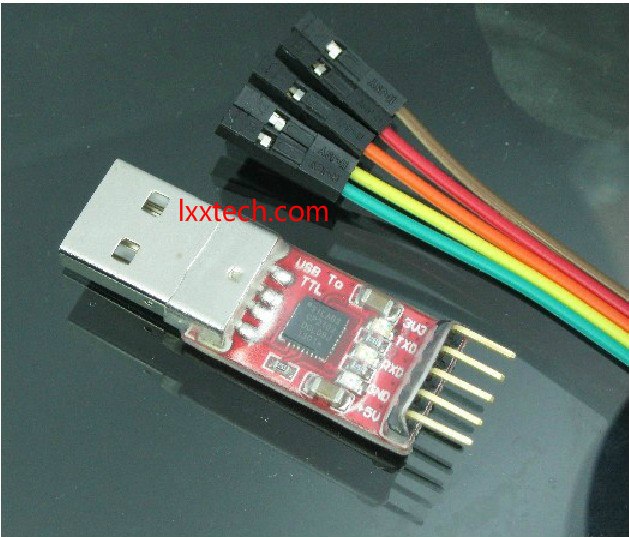

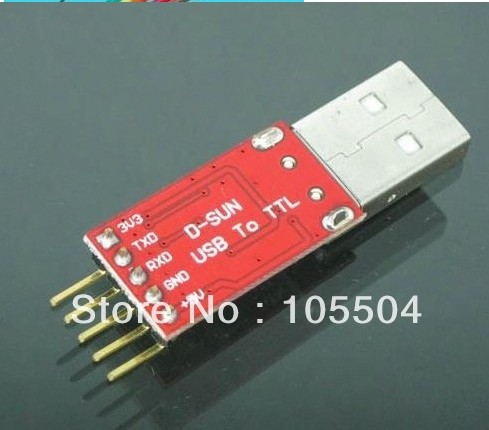

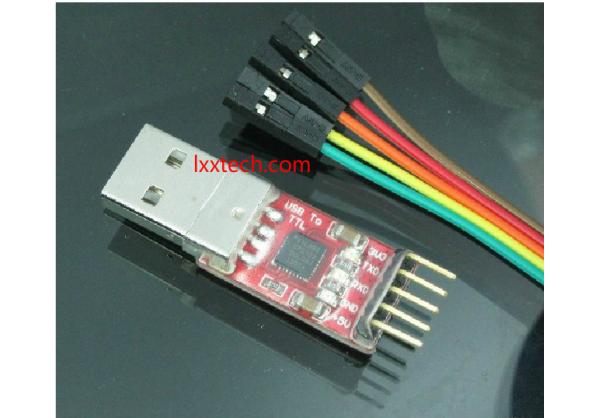

CP2102 module USB to TTL USB to serial module UART STC Downloader Brush upgrade board

Product description:

1, the main chip for CP2102, generate virtual serial port driver after installation

2, USB to take power, leads to the interface includes 3.3V (<40mA), 5V, GND, TX, RX, the signal pin level is 3.3V, positive logic

3, the board status indicators, send and receive lights, right after installing the driver status indicator lit, transceiver indicator flashes when communication baud rate higher brightness lower

4, supports baud rates from 300bps ~ 1Mbps between

5, the communication format support: 1) 5,6,7,8 data bits; 2) support 1.5, 2 stop bits; 3) odd, even, mark, space, none parity

6 Supported operating systems: windows vista / xp / server 2003/200, Mac OS-X/OS-9, Linux

7, USB head is male, can be connected directly to the computer USB port

8, SMT chip components for the production process, quality and stability

9, excluding the volume of the first USB: (mm)

Shipping list:

1pcs module

1[pcs 20 cm long line 4P Dupont
