: Large Image:5v/9v/12V power-delay relay module

Product Details:

Place of Origin:	CHINA
Brand Name:	LXXTECH
Model Number:	LXX-0258
Certification:

Payment & Shipping Terms:

Minimum Order Quantity:	10
Price:	good price
Delivery Time:
Payment Terms:	TT ,paypal,ESCROW
Supply Ability:

Detailed Product Description

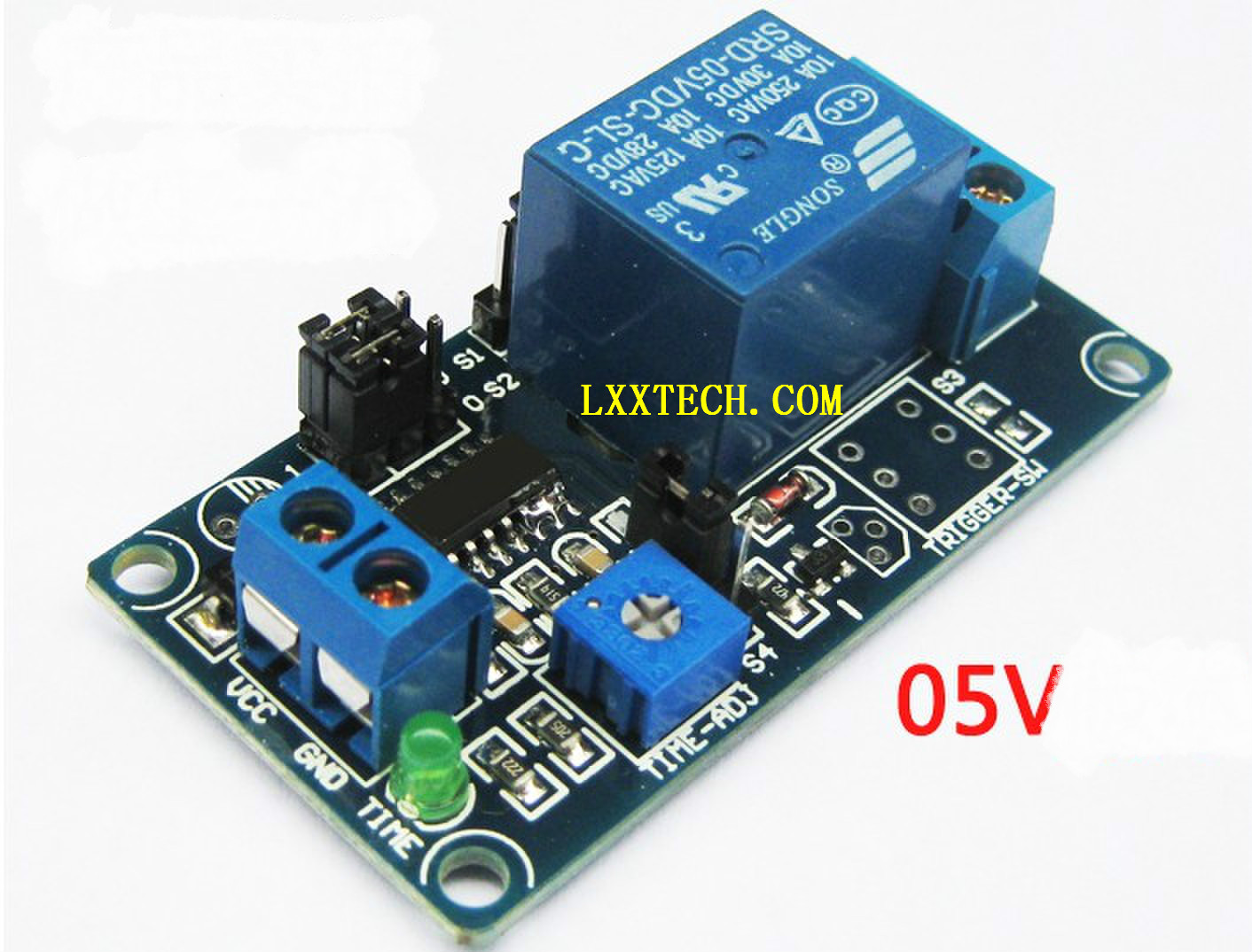

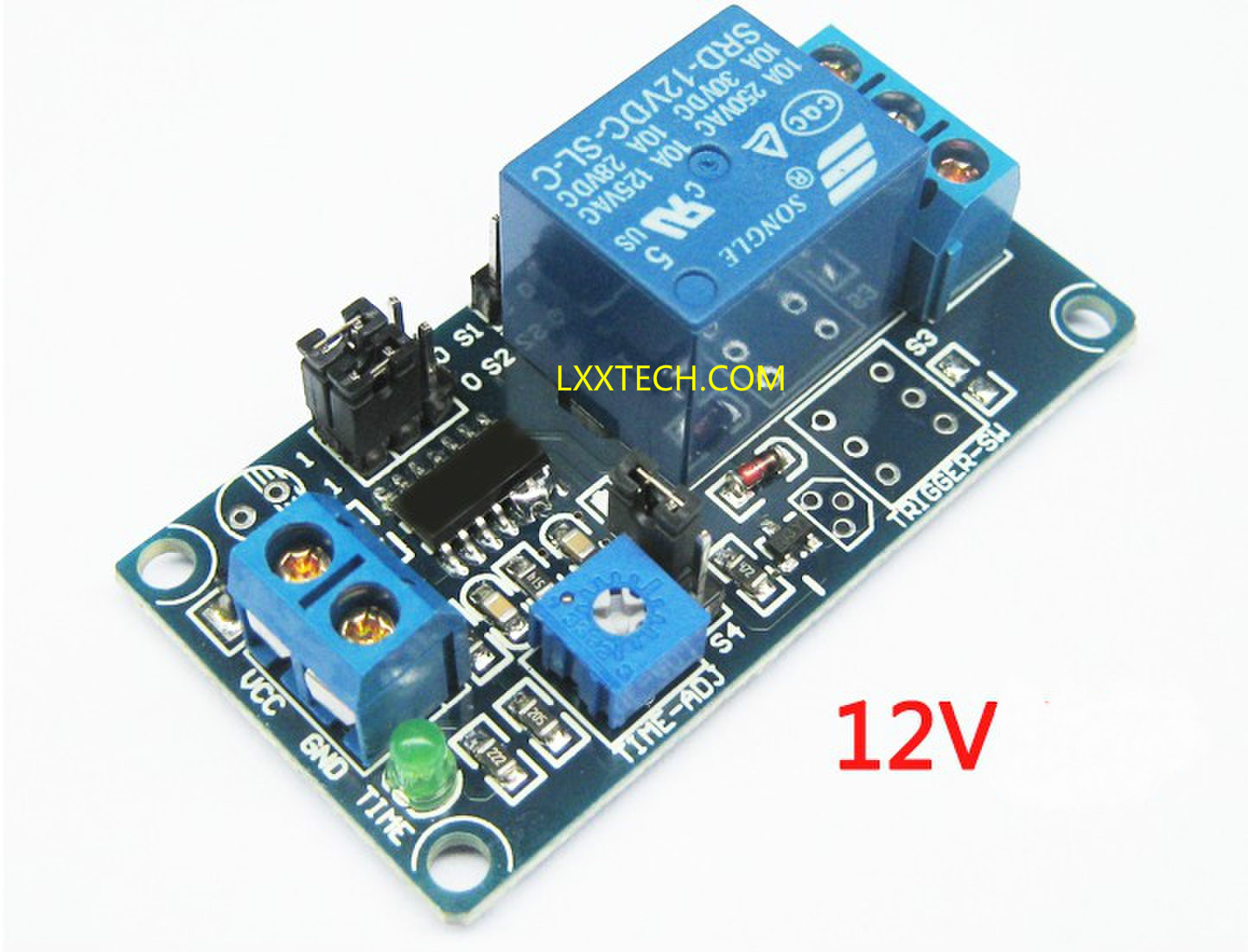

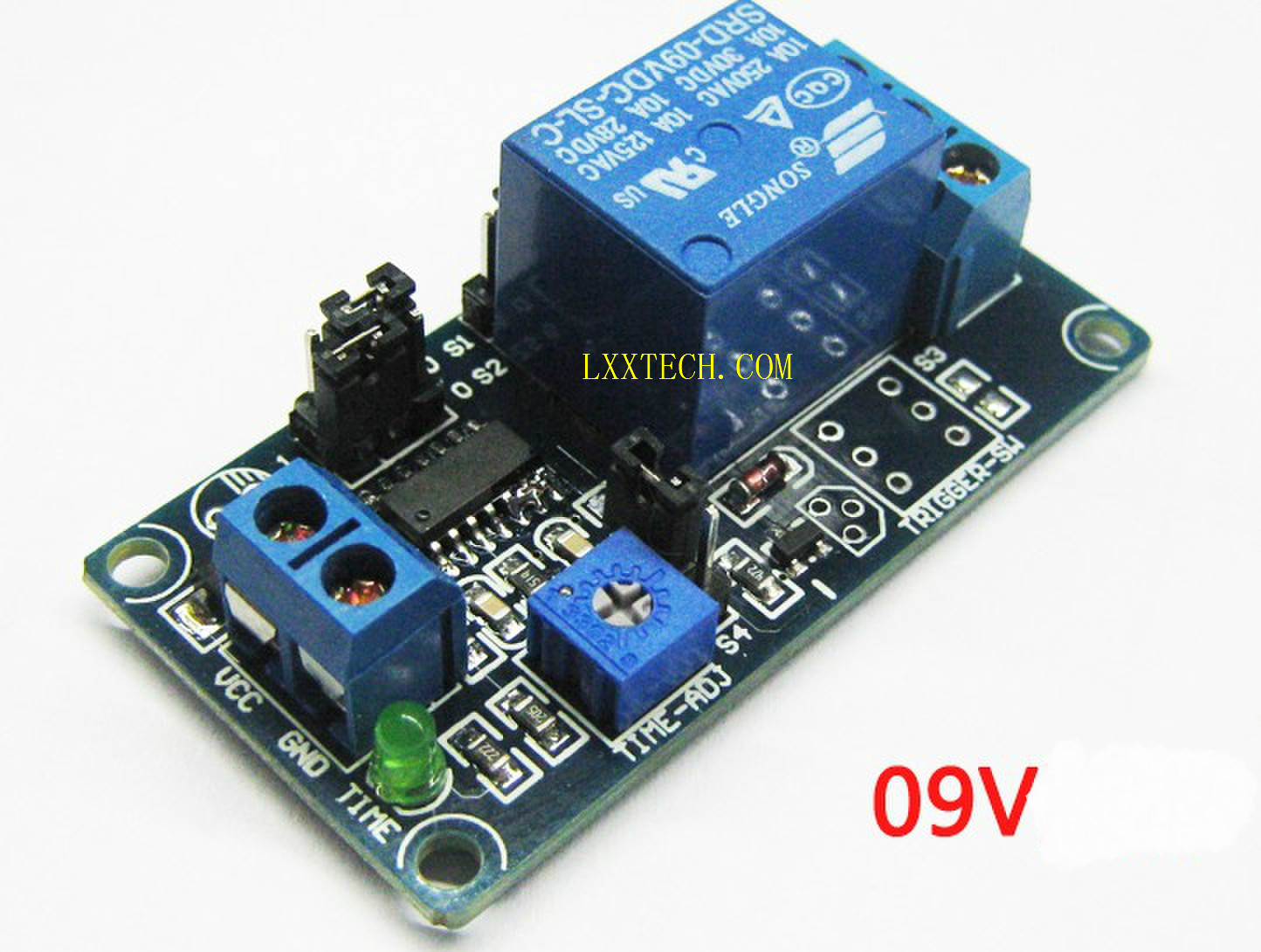

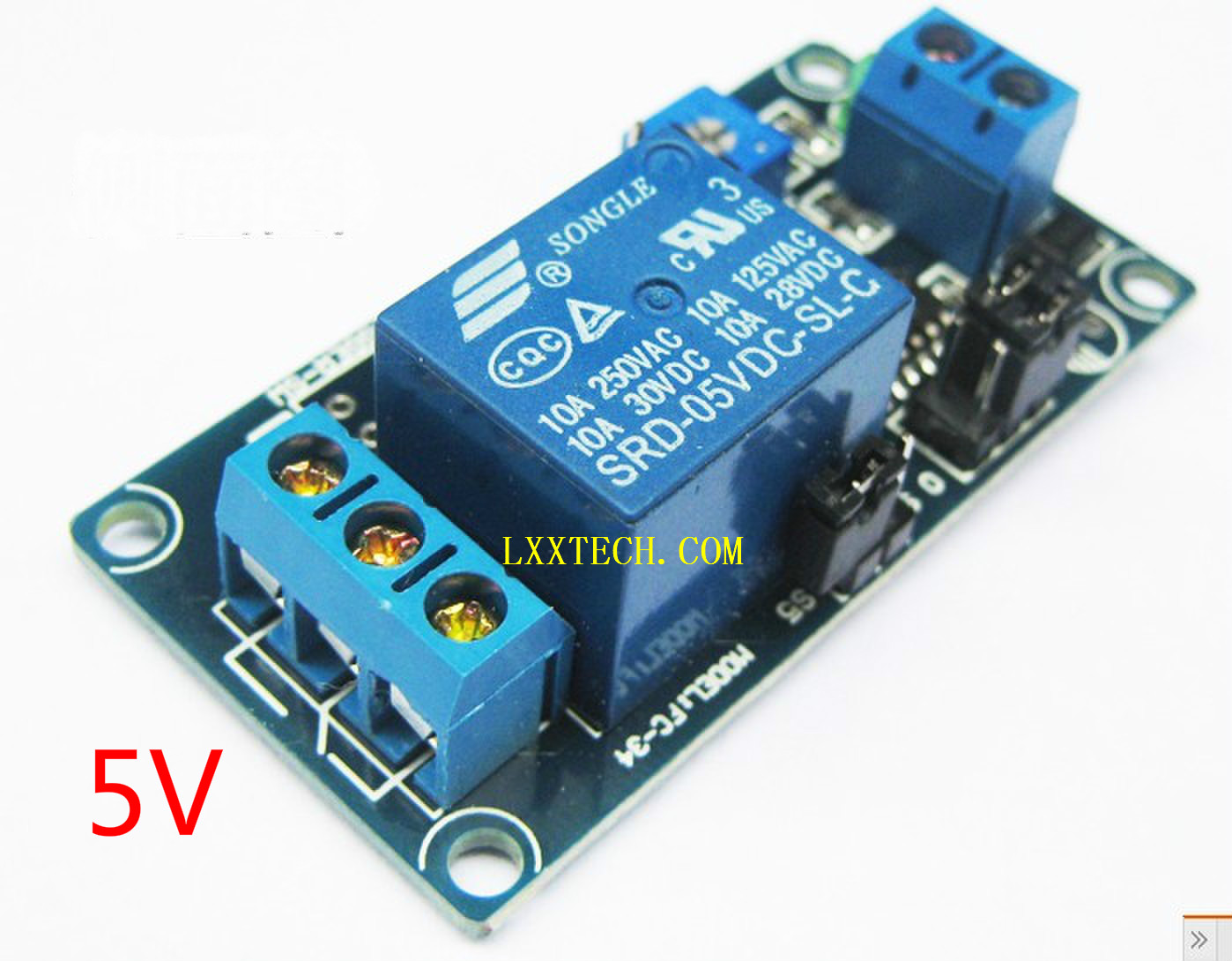

5v/9v/12V power-delay relay module

Application:
Tachograph, GPS start protection, household appliances, electronic equipment protection, sound protection, industrial control, PLC control, electronic experiments, arduino robot, an extremely broad range of applications.

Product description:
1. Adopt imported high naive delay chip design, performance is far superior to the 555 chip;
2. Provides 8 kinds of delay time range selection, the shortest 0.1 seconds, up to one hour, to meet most needs;
3 . protection against power reversal protection diode, the effective protection product;
4 .can be accessed by a large current load (250v ac 10A or 30v dc 10A); 6. has a delay adjustment potentiometer clockwise to adjust the time will be longer.

Features:
This module when a power, then immediately start the timer (time range adjustable), colleagues immediately pull the relay, the relay with normally open common terminal connected to the delay ends, the relay releases and public clients and often closed-end connected.

Electrical parameters:
Input voltage             static power            maximum power
        5V                          2.5mA                          70mA
       9v                            4.0mA                          45mA
      12v                           5.5mA                          42mA

Product Tag : 5v/9v/12V power-delay relay module
