: Large Image:Energized delay module ; GPS tachograph protection

Product Details:

Place of Origin:	CHINA
Brand Name:	LXXTECH
Model Number:	LXX-0262
Certification:

Payment & Shipping Terms:

Minimum Order Quantity:	10
Price:	Good price
Delivery Time:
Payment Terms:	TT ,paypal,ESCROW
Supply Ability:

Detailed Product Description

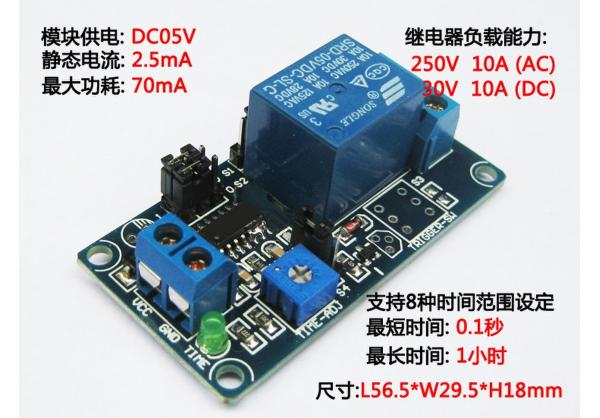

Energized delay module ; GPS tachograph protection

Application:

Tachograph , GPS start protection , household appliances, electronic equipment protection , sound protection, industrial control, PLC control, electronic experiments , Arduino robot , an extremely broad range of applications .

Product description:

1 . Imported high naive delay chip design, performance is far superior to the 555 chip ;

2 . Provides 8 kinds of selection delay time range , the shortest 0.1 seconds , up to an hour , to meet most needs ;

3 . Protection against reverse power protection diode , the effective protection product ;

4 , you can access a large current load (250V AC 10A or 30V DC 10A); 6. There is a delay adjustment potentiometer clockwise to adjust the time will be longer.

Features:

This module , when a power supply, and then immediately start timing ( time adjustable within the range ) , and immediately pull the relay , the relay common and normally open switched delay expires , the relay releases , the common and normally closed terminal connected.

Electrical parameters:

Input voltage static power maximum power

5V 2.5mA 70mA

9v 4.0mA 45mA

12v 5.5mA 42mA

Product Tag : Energized delay module
