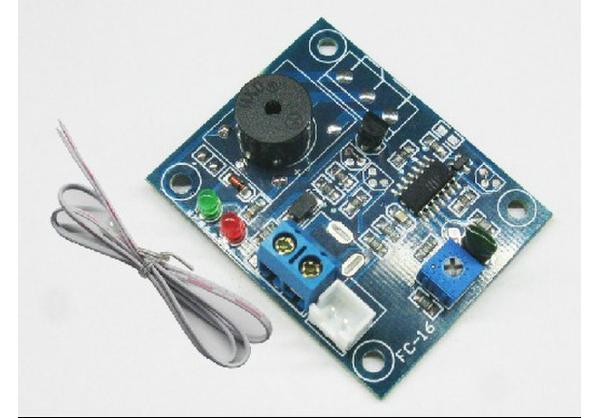

: Large Image:Delay alarm buzzer module , 5V trigger NC

Product Details:

Place of Origin:	CHINA
Brand Name:	LXXTECH
Model Number:	LXX-0265
Certification:

Payment & Shipping Terms:

Minimum Order Quantity:	10
Price:	Good price
Delivery Time:
Payment Terms:	TT ,paypal,ESCROW
Supply Ability:

Detailed Product Description

Delay alarm buzzer module , 5V trigger NC

This module voltage of 5V, normally closed switch trigger alarm delay .

Application:

Vibration burglar alarm delay , earthquake alarm, then normally closed sensor module can do all sorts of alarm is triggered .

Product Features :

1 made of imported high -quality delay chip design , the performance is far superior to the 555 chip ;

2.provide four kinds of power input wiring to meet the diverse needs of the default delivery of the first one, there are other needs please take a message ;

3. Protection against power reversal protection diode , the effective protection product ;

4 with a 5V buzzer for alarm active role ;

5 has a delay adjustment potentiometer clockwise to adjust time longer ;

Technical parameters:

Input voltage : 5V DC input current : more than 100mA

Power consumption : 0.5W

The default delay :1 -190 seconds adjustable ( other ranges please contact the seller to order )

Product description:

Please refer to the following product wiring illustration ;

This module is normally open trigger , can normally closed type vibration sensors, micro-switches , etc. triggered off when the switch is momentary , the module will start the timer, light green LED, buzzer alarm buzzer , ending time, the green LED off, stop the alarm buzzer ;

Shipping list :

Module ,
2.54 2P lead a 50cm long

Product Tag : Delay alarm buzzer module
