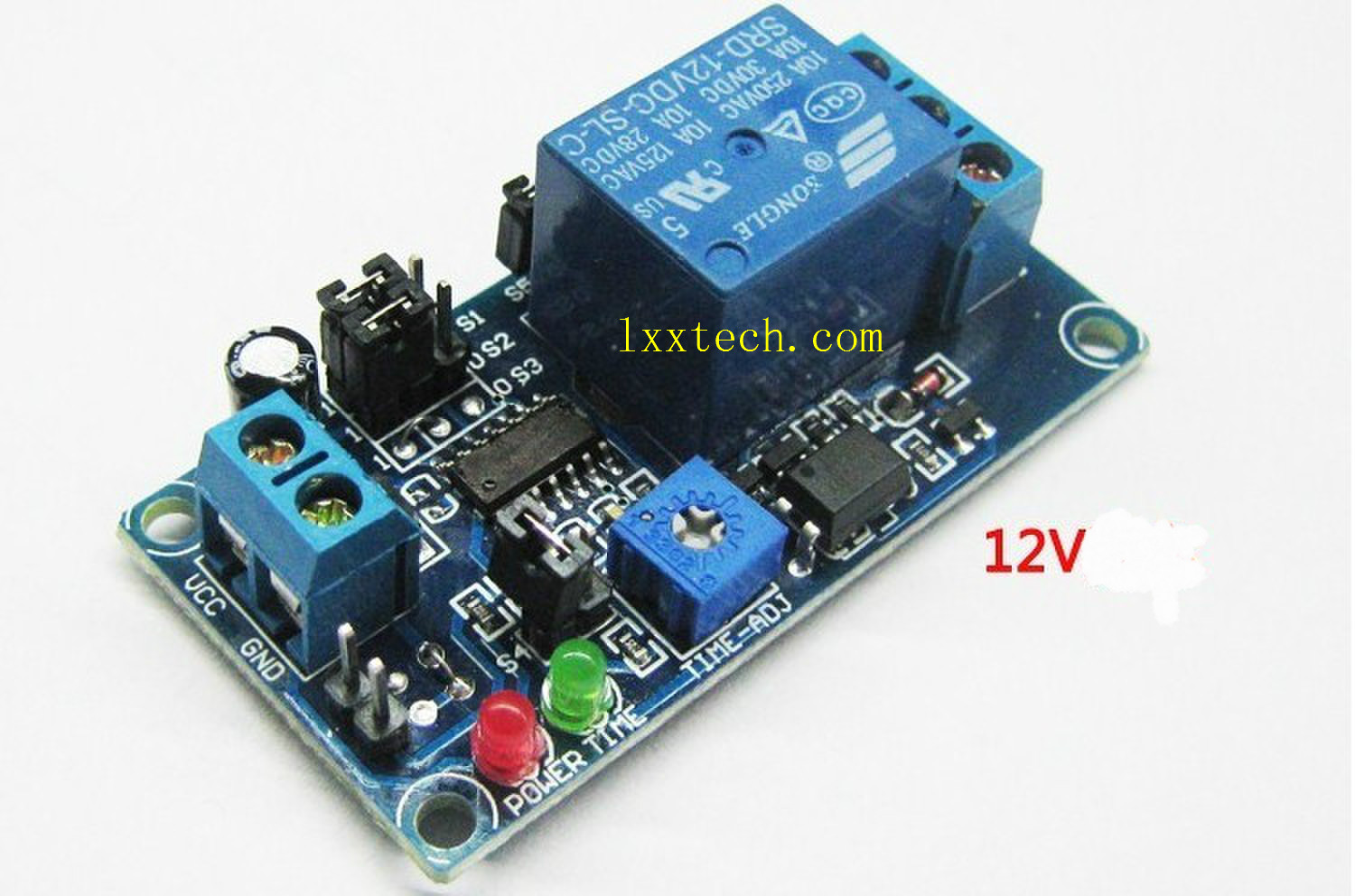

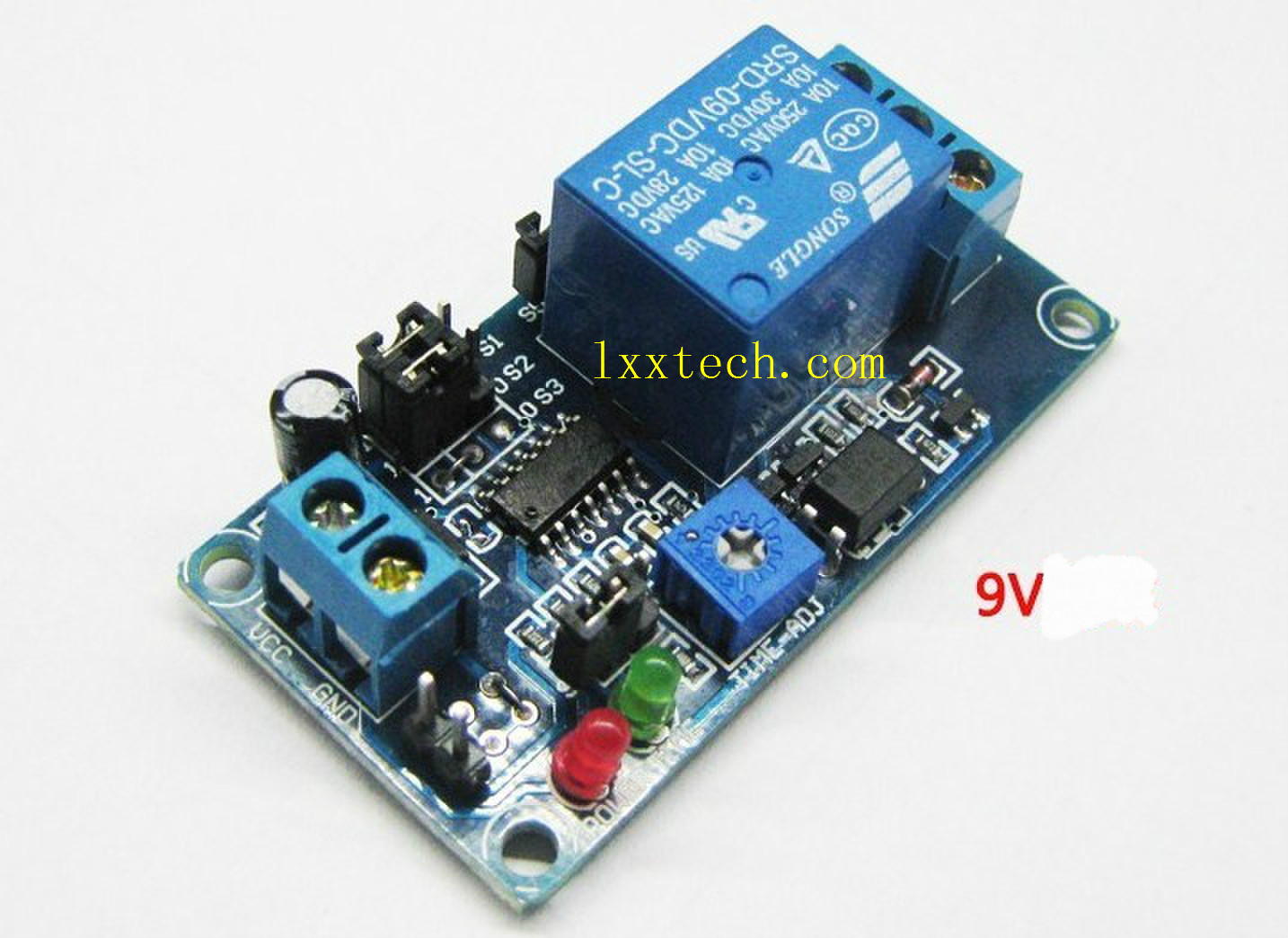

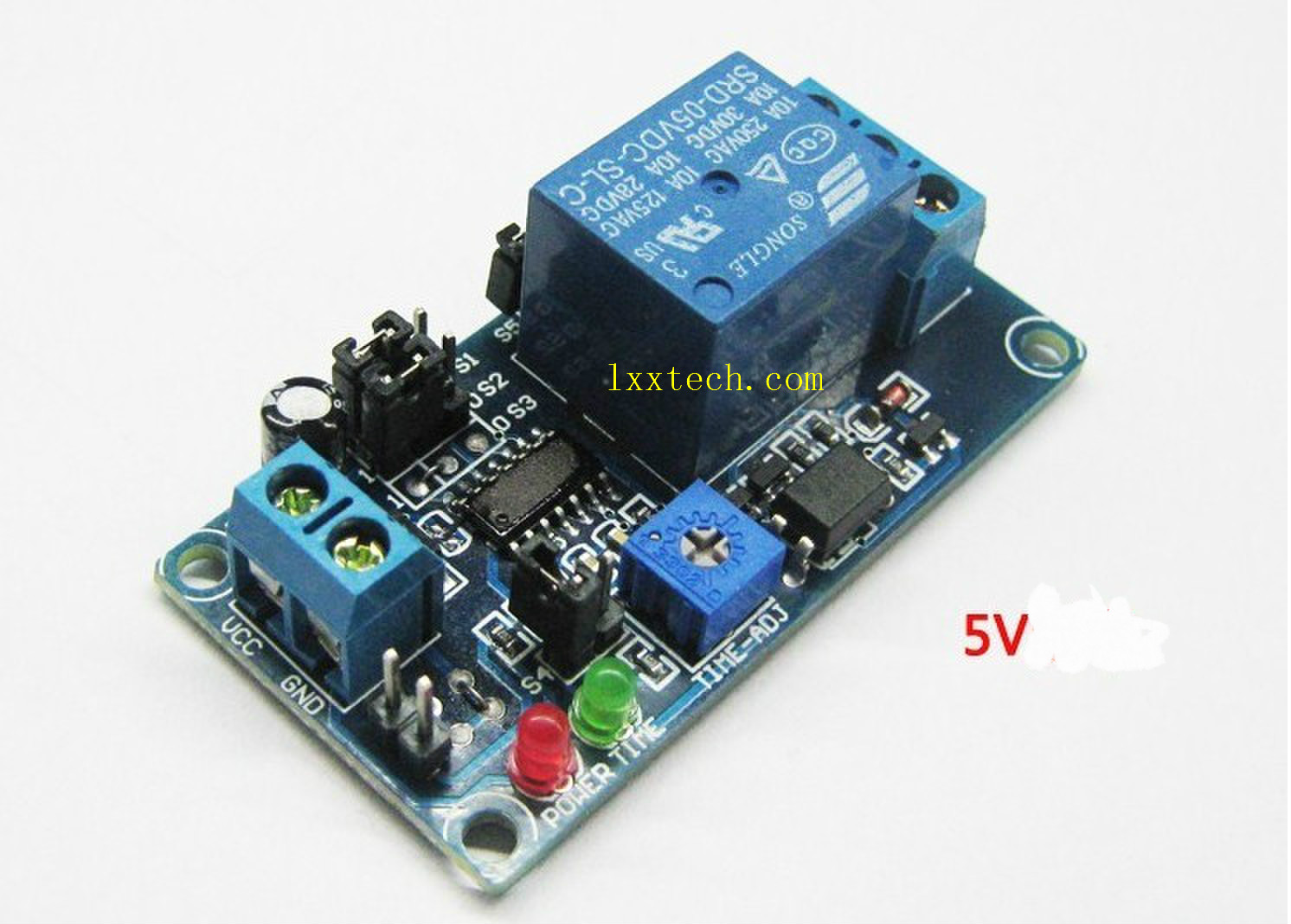

Normally open trigger delay relay delay circuit module; vibration alarm module 5V/9V/12V

: Large Image:Normally open trigger delay relay delay circuit module; vibration alarm module 5V/9V/12V

Product Details:

Place of Origin:	CHINA
Brand Name:	LXXTECH
Model Number:	LXX-0266
Certification:

Payment & Shipping Terms:

Minimum Order Quantity:	10
Price:	Good price
Delivery Time:
Payment Terms:	TT ,paypal,ESCROW
Supply Ability:

Detailed Product Description

Normally open trigger delay relay delay circuit module; vibration alarm module 5V/9V/12V

Application:

This module is the switch is turned instantly trigger delay module can be used in smart home systems, burglar alarm delay , gating systems, automated equipment control , PLC industrial control, electronic development.

Product description:

1 The use of advanced chip design quality control , timing accuracy , performance is much better than the 555 chip ;

2 opto-isolated trigger end has strong anti-jamming capability ;

3. can be used normally open type switch or sensor can trigger module ;

4 has eight kinds of selection time range , the shortest 0.1 seconds , up to one hour ;

5 with anti- reverse protection diode power , better protection module ;

6 can be accessed by a large current load (250v ac 10A or 30V dc 10A);

7 has a delay adjustment potentiometer clockwise adjustment time will be longer.

8 output relays have normally open, normally closed choice ;

Features:

1 When the module to trigger the end of the induction has closed momentary switch , the module will start delay function , and relay , the end of the delay , the relay back to the normally closed terminal .

2. When the module is triggered delay , if there has once again received the trigger signal, the module will re- timing, automatic trigger to last until the end of the delay .

Electrical parameters :

Input voltage static power Maximum power consumption

5V 4.8mA 70mA

9V 9.4mA 48mA

12V 13mA 48mA
