: Large Image:JLINK V8 emulator / ARM emulator

Product Details:

Place of Origin:	CHINA
Brand Name:	LXXTECH
Model Number:	LXX-0542
Certification:

Payment & Shipping Terms:

Minimum Order Quantity:	10
Price:	Good price
Delivery Time:
Payment Terms:	TT ,paypal,ESCROW
Supply Ability:

Detailed Product Description

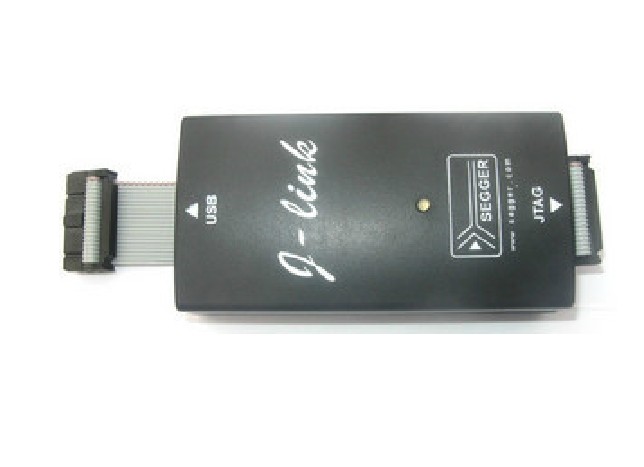

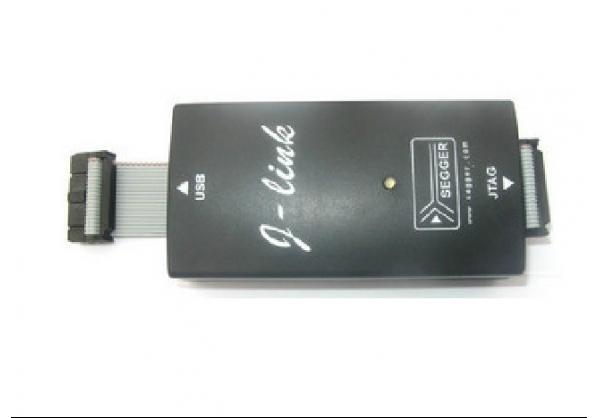

JLINK V8 emulator / ARM emulator

Products:

J-Link emulation is SEGGER company ARM core chip to support the launch of the JTAG emulator. With IAR EWARM, ADS, KEIL, WINARM, RealView and other integrated development environment supports all ARM7/ARM9 core chip simulation , through the RDI interface and various integrated development environment seamlessly, easy to operate, easy to connect , easy to learn , is to learn to develop ARM the best and most practical development tools.

J-Link ARM main features:

* JTAG emulator IAR EWARM integrated development environment seamlessly connected

* Supports all ARM7/ARM9 core chip , as well as cortex M3, including Thumb mode

* Support for ADS, IAR, KEIL, WINARM, REALVIEW almost all development environments

* Download speeds of up to ARM7: 600kB / s, ARM9: 550kB / s, through the DCC up to 800 kB / s

* The maximum JTAG speed 12 MHz

* Target board voltage range of 1.2V-3.3V, 5V compatible

* Auto speed recognition

* Monitoring all JTAG signals and target board voltage

* Fully Plug and Play

* Use USB power ( but not the target board power supply )

* With a USB cable and 20-pin flat cable

* Support multi- device JTAG serial connection

* Standard 20-pin JTAG emulation plug

* Optional 14-pin JTAG emulation plug

* Optional adapter for 5V targets board

* With J-Link TCP / IP server, allowing the use of J-Link via TCP / IP network

J-Link support for ARM cores :

* ARM7TDMI (Rev 1)

* ARM7TDMI (Rev 3)

* ARM7TDMI-S (Rev 4)

* ARM720T * ARM920T

* ARM926EJ-S

* ARM946E-S

* ARM966E-S

* ARM11

* Cortex-M3

Product Specifications:

USB power supply , the whole current <50mA

USB Interface USB 2.0 full-speed 12Mbps

Target board interfaces

JTAG (20P)

Serial data transmission speed J-Link and target board between the maximum 12MHz

Supported target board voltage of 1.2 - 3.3V, 5V compatible

Target board supply voltage 4.5 - 5V ( provided by the USB 5V)

Target maximum supply current 300mA, with overcurrent protection

Ambient temperature +5 ° C ... +60 ° C

Storage temperature -20 ° C ... +65 ° C

Humidity <90%

Dimensions ( excluding cable ) 100mm x 53mm x 27mm

Weight (without cable ) 70g

Electromagnetic compatibility EN 55022, EN 55024

Supported operating systems Microsoft Windows 2000

Microsoft Windows XP

Microsoft Windows XP x64

Microsoft Windows 2003

Microsoft Windows 2003 x64

Microsoft Windows Vista

Microsoft Windows Vista x64

Shipping list :

1.J-LINK V8 emulator one

1x USB cable copper shield

1x standard cable 20PIN simulation
