ST-LINK V2 STM8/STM32 Emulator Programmer / STLINK download Debugger

: Large Image:ST-LINK V2 STM8/STM32 Emulator Programmer / STLINK download Debugger

Product Details:

Place of Origin:	CHINA
Brand Name:	LXXTECH
Model Number:	LXX-0543
Certification:

Payment & Shipping Terms:

Minimum Order Quantity:	10
Price:	Good price
Delivery Time:
Payment Terms:	TT ,paypal,ESCROW
Supply Ability:

Detailed Product Description

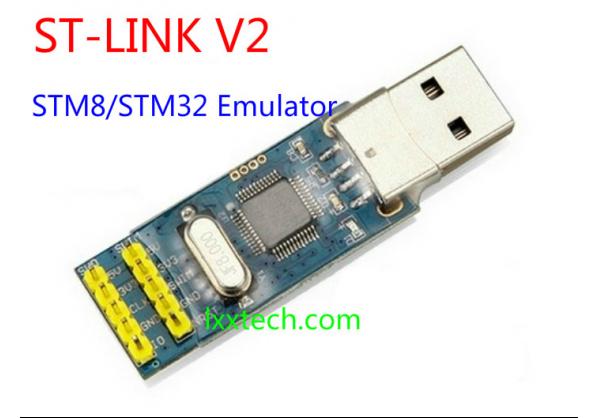

ST-LINK V2 STM8/STM32 Emulator Programmer / STLINK download Debugger

Product description:

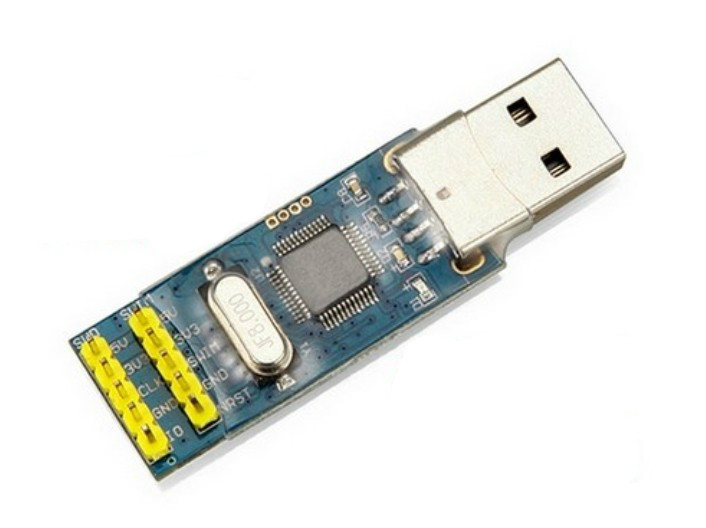

1 master IC: STM32F103C8T6

2.GND: pick a target board GND

3.CLK: STM32 of TCK corresponding interfaces

4.SWIM: The corresponding STM8 SWIM Interface

5.IO: corresponds to the STM32 TMS Interface

6.NRST: reset the interface corresponding to STM8

7.5V Output: 5V target board provides input voltage

8.3.3V: the target board provides 3.3V input voltage

Features:

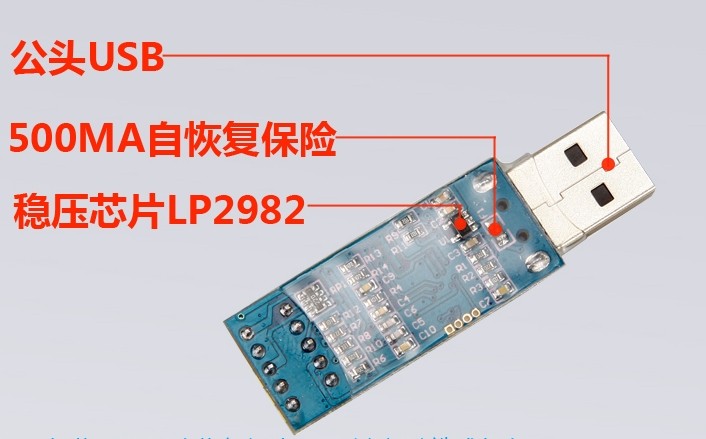

1 onboard 500MA resettable fuse, to avoid a short circuit hazard.

2 Dual LED indicator pins are gold-plated and PCB

3 hot dorm seal protection, only U disk volume size, easy to carry

4 using male USB, can be connected directly to a laptop USB.

5. Supports automatic upgrades, support the full range of STM32 and STM8 download and debug.

Shipping list:

1x ST-LINK / V2

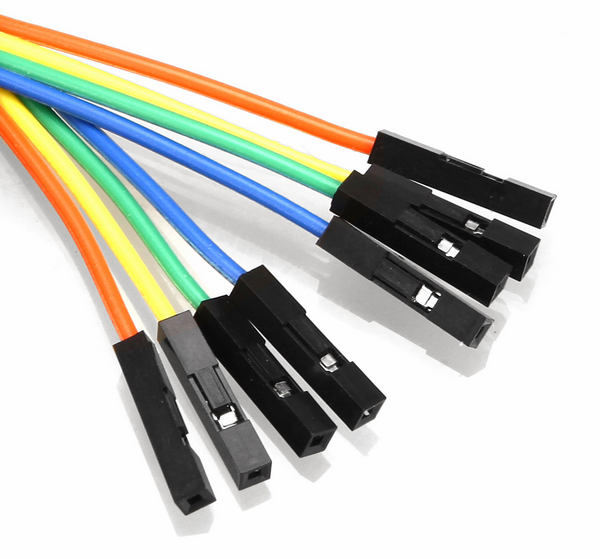

1x4pin 2.54mm Dupont Line

1x 4Pin (2.54mm pitch) debug line
