2013 version Ethernet W5100 R3 !!! Shiel...

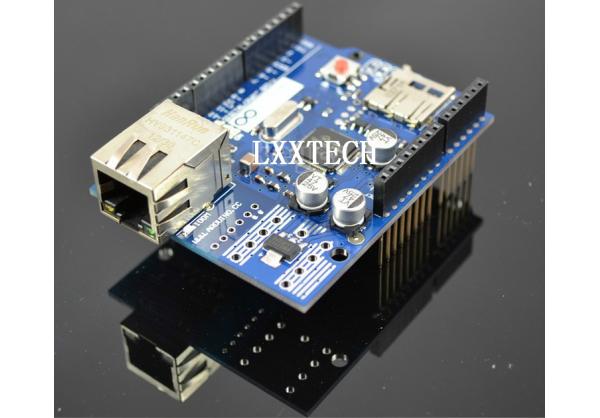

Arduino Ethernet expansion board allows Arduino controller connected to the network. It is a built-in WizNet W5100 TCP / IP microprocessor expansion board. This board through long stitch row mother (wire-wrap header) to connect arduino boards. Using the Ethernet Arduino IDE library program can easily use this expansion board connected to the network. The expansion board supports simultaneous four socket connections.

And the expansion board which R3 version also adds four additional ports by the composition of the 1.0 Standard Edition output ports: two located ARFF edge, two located in the edge of RESET. RESET edge of the two ports, one IOREF, used to make the expansion board to adapt the motherboard. Another empty port reserved for future expansion possibilities.

The latest version adds section micro-SD card slot, with a network storage capabilities. In addition, it and the Arduino Duemilanove, Mega series is also fully compatible. It also has a separate PoE (power-over-Ethernet) modules. The module can be soldered to the motherboard, which is transmitted via twisted pair electricity. It is compliant with IEEE802.3af standard, and is compatible with existing PoE module.

Technical Specifications

With Arduino Mega2560/Uno rev3 compatible standard output port

With active voltage converter function, micro-SD card connector

PoE

Reset Controller

Compatible with Arduino MEGA board
