GPS active antenna built-in ceramic /30db two high-gain amplification / 5cm length / / 25 * 25 * 4.5

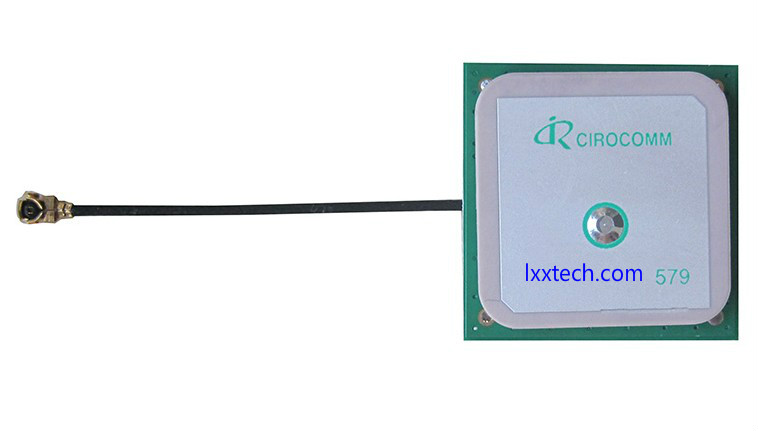

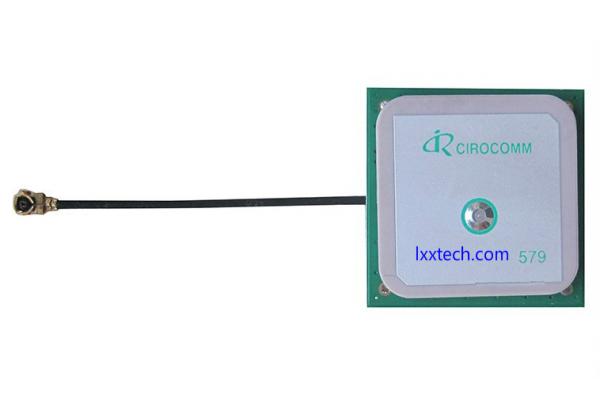

: Large Image:GPS active antenna built-in ceramic /30db two high-gain amplification / 5cm length / / 25 * 25 * 4.5

Product Details:

Place of Origin:	CHINA
Brand Name:	LXXTECH
Model Number:	LXX-0471
Certification:

Payment & Shipping Terms:

Minimum Order Quantity:	20
Price:	Good price
Delivery Time:
Payment Terms:	TT ,paypal,ESCROW
Supply Ability:

Detailed Product Description

GPS active antenna built-in ceramic/ 30db two high-gain amplification / 5cm length / / 25 * 25 * 4.5mm

Product parameters:

The thickness of the ceramic sheet is 25 * 25 * 2mm, the overall size of the antenna is: 28 * 28 * 4.5mm,

28db high gain amplification two strong lines 5cm long GPS receiver built-in ceramic active antenna 25 * 25 * 4.5mm

Dielectric Antenna

Center Frequency: 1575.42MHZ, 1561MHZ

VSWR: 2:1

Bandwidth: ± 30 MHz

Impedance: 50Ω

Maximum gain:> 3dBic Based on 7 × 7cm

Gain Range:>-4dBic at -90 ° <0 <+90 °

Antenna Polarization: RHCP

Amplifier / filter

Amplifier Gain: 28dB

Noise Figure: 1.5dB

Filter band attenuation:

7dB Min f0 + /-20MHz;

20dB Min f0 + /-50MHz;

30dB Min f0 + /-100MHz

Output VSWR: <2.0

DC voltage DC: 3V --- 5V

Power consumption: 10mA

Structure

Weight: 7 (g)

Dimensions: 46X38.5X13.5mm

Cable length: 5/10/20cm custom

Connector Type: IPEX

Line Color: Black

Environment

Working temperature: -40 ℃ ~ +85 ℃

Waterproof test:

Humidity: 95% ~ 100% RH
