GPS active antenna with two zoom, car DVD navigation, GPS navigation, SMA interfaces, GPS antenna

: Large Image:GPS active antenna with two zoom, car DVD navigation, GPS navigation, SMA interfaces, GPS antenna

Product Details:

Place of Origin:	CHINA
Brand Name:	LXXTECH
Model Number:	LXX-0480
Certification:

Payment & Shipping Terms:

Minimum Order Quantity:	30
Price:	Good price
Delivery Time:
Payment Terms:	TT ,paypal,ESCROW
Supply Ability:

Detailed Product Description

GPS active antenna with two zoom, car DVD navigation, GPS navigation, SMA interfaces, GPS antenna

Parameters

1, Antenna Specification

Center Frequency: 1575.42MHz

V.S.W.R: ≤ 1.5

Band Width: ± 5 MHz

Polarization: right-handed polarization

Impendence: 50Ω

2. LNA Specification

LNA Gain (Without cable) ≥ 27dB

Noise Figure ≤ 1.5dB

Interference Rejection: 20dB (f0 ± 140MHz)

V.S.W.R: <2.0

DC Voltage: 3.0 ± 0.3VDC; 5.0 ± 0.5VDC

DC current: ≤ 20mA

3.Mechanical Specification

Weight: <47 (g) gram

Size: 46 × 46 × 13mm

Cable: RG174 3 米

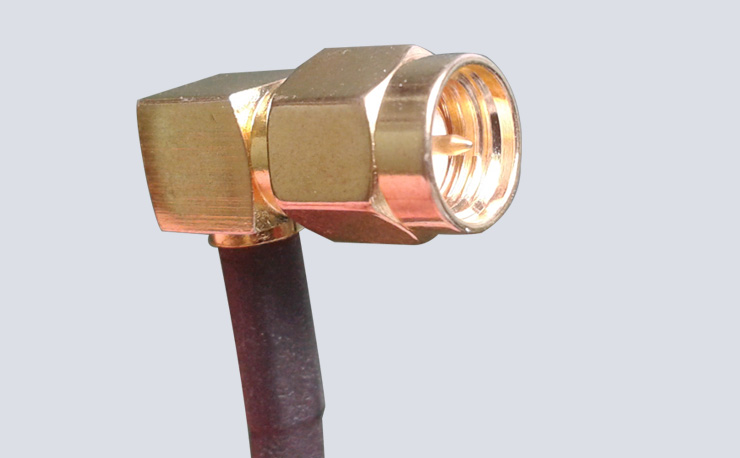

Connector: SMA

Mounting: Magnetic Magnetic base

Housing: Black

Case Packaging: Waterproof and dustproof

4.Environmental Specification

Working Temp: -40 ℃ ~ +85 ℃

Storage Temp: -40 ℃ ~ +90 ℃

Vibration: Sine sweep 1g (0-p) 10 ~ 50 ~ 10Hz each axis

Humidity: 95% non-condensing

Waterproof: IP 66 M (GB 4208-84, sealing, anti-flooding)

Reliability MTBF = 1 × 10-6/pc.hr: 40 ℃ ± 5 ℃ DC = 3.3v

Product Tag : GPS active antenna
