: Large Image:GPS antenna SMA interface

Product Details:

Place of Origin:	CHINA
Brand Name:	LXXTECH
Model Number:	LXX-0457
Certification:

Payment & Shipping Terms:

Minimum Order Quantity:	30
Price:	Good price
Delivery Time:
Payment Terms:	TT ,paypal,ESCROW
Supply Ability:

Detailed Product Description

GPS antenna SMA interface for venus GPS module

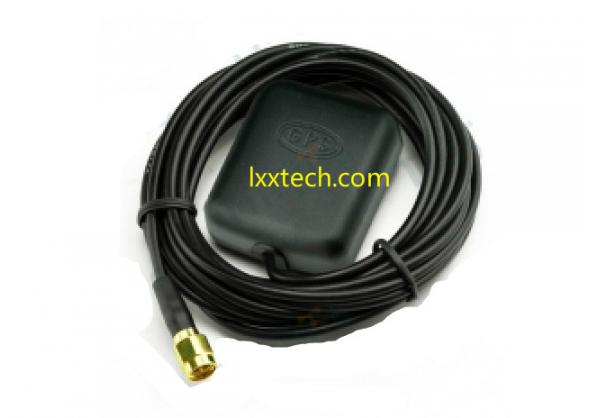

GPS receiving antenna by the end of the main body, and connecting the server component feeder. Picture the receiving end is the small black square in the body, which is mainly composed of ceramics, circuit boards and other components, is a core part of the antenna. The other end is connected to the antenna head small gold metal, professional name is called RF connector is mainly used to make the connection with the terminal equipment (navigation systems, GPS Bluetooth module, GPS mobile phones, electronic dog, vehicle positioning equipment, etc.). Feeder cable transmission signal is generally the maximum length of 5 m vehicle antenna. Common Interface connector GPS antenna can be divided into: MCX, MMCX, SMA, BNC, etc., the money is for SMA anode interface (the needle).

Parameters:

Frequency: L1 (1575.42MHz, ± 2MHz)

Impedance: 50Ω

Polarization: RHCP

Gain: ≥ 26dB

Noise factor: ≤ 1.5dB

Power requirements: 3.0 ± 0.3VDC; 5.0 ± 0.5VDC 3.3 ± 0.3VDC

Power consumption: 20mA, 3Vdc (typical)

Size: 46 × 39 × 13.5mm (G203A)

Cable: RG174 standard 3 m

Connector: SMA Straight

Product Tag : GPS antenna
