RS232 level 30db high gain GPS + active ceramic antenna integrated module / model aircraft flight co

: Large Image:RS232 level 30db high gain GPS + active ceramic antenna integrated module / model aircraft flight co

Product Details:

Place of Origin:	CHINA
Brand Name:	LXXTECH
Model Number:	LXX-0460
Certification:

Payment & Shipping Terms:

Minimum Order Quantity:	5
Price:	Good price
Delivery Time:
Payment Terms:	TT ,paypal,ESCROW
Supply Ability:

Detailed Product Description

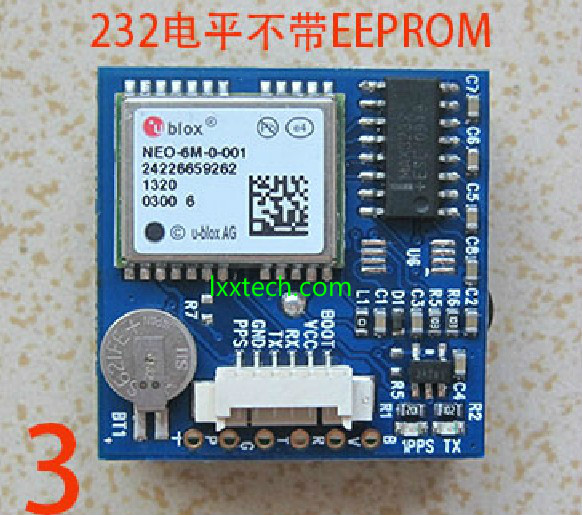

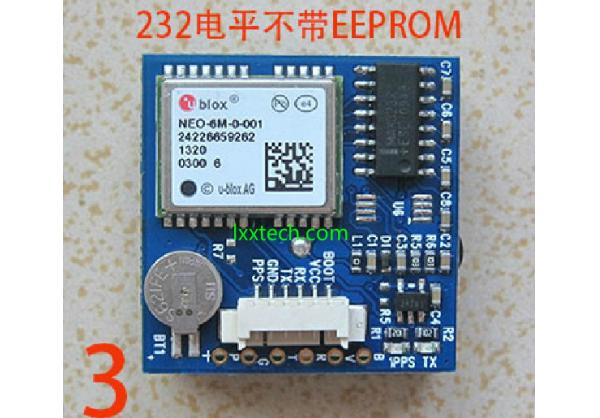

RS232 level 30db high gain GPS + active ceramic antenna integrated module / model aircraft flight control positioning grant / UBLOX NEO-6M GPS

Module size: 28mm * 28mm * 10mm

Pin module are:

1.BOOT, internal factory upgrades.

2.VCC, 3.6V--6V.

3.RX, data input module.

4 outputs the data module.

5 Ground.

After 6.PPS, positioning a second period of a second pulse output can be used to use the grant.

Use of imported original Seiko rechargeable battery placement, as well as imported ublox NEO-6M original gps module

Use large voltage difference LDO, 3.6V--6V power supply

Product Tag : RS232 level 30db high gain GPS
