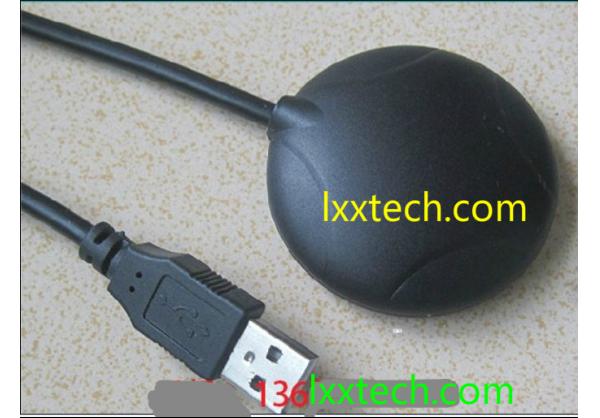

G-MOUSE external GPS ublox chip USB/TTL/232 beyond ring-day BU353S4
Parameter:
Size: 56 * 15 * 1.5mm
Channels: 50 channel GPS L1 C / A code
Frequency: L1, 1575.42MHz
Support SBAS: WAAS, EGNOS, MSAS
Maximum update rate: 5HZ
Accuracy: Positioning: 2.5 m
SBAS: 2 M
Cold start: 27 seconds
Warm start: 3 seconds
Hot start: 1 sec.
Acquisition sensitivity: 147dbm
Tracking sensitivity:-162dbm
Speed limit: 500m / s
Height restrictions: 50,000 m
Power supply: 5v
Power consumption: 117MW (3.0V) Continuous Mode
Antenna type: active or passive
Weight 1.6g
Working temperature: -40 degrees - 85 degrees
Storage temperature: -40 degrees - 85 degrees
Comply with ROHS
Interface: UART
Mounting: SMT placement
Time pulse: 0.25HZ--1KHZ
Protocol: NMEA-183 data protocol
For car navigation, ship navigation, fleet management, AVL and location-based services, automatic navigation, personal navigation or travel device tracking devices / systems and map device applications
BT-208 - kernel using the latest generation of chip production, super performance.
BT-208 GPS Receiver

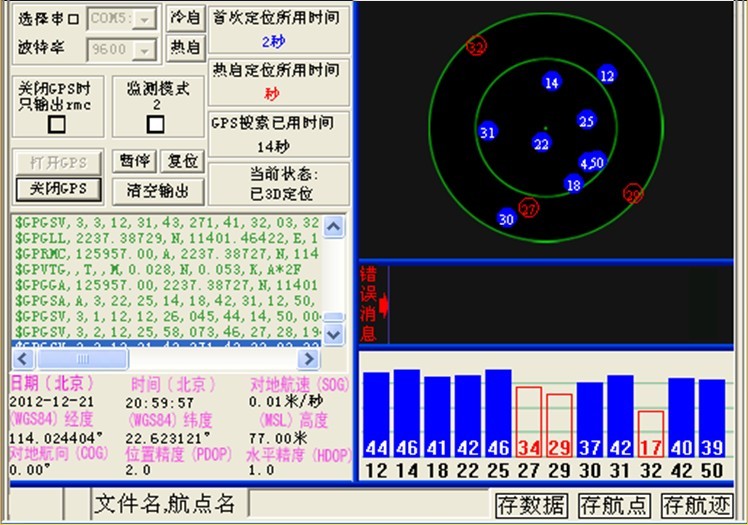

The BT-208 G-mouse attached to the vehicle, the receiver gain super, two amplification, 28db gain, signal testing as shown --- total search 12 gps satellites:
