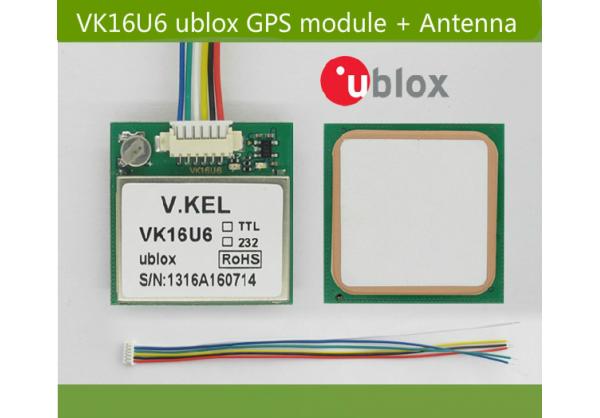

VK16U6 ublox GPS module with Antenna , ublox module
Product Highlights：
. Industry standard 25 * 25 * 4MM high sensitivity GPS antenna

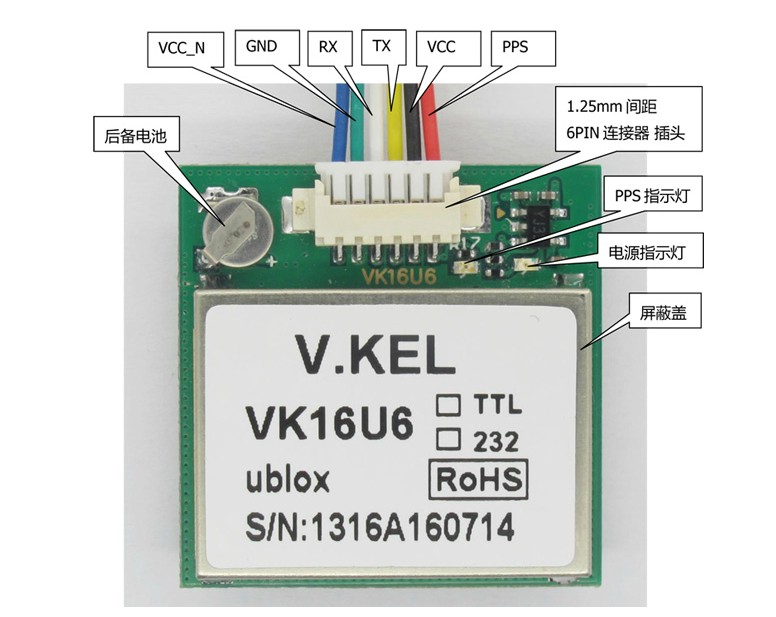

. UART / TTL, 232 level , USB2.0 optional interface
Adopts KDS 0.5PPM precision TCXO
Built- RTC crystal and picofarads capacitance faster hot start
Built-in EEPROM, freedom rich configuration parameters
.5 Hz update rate positioning
Support AssistNow Online and AssistNow Offline A-GPS services , etc.
. GPS, GALILEO, SBAS (WAAS, EGNOS, MSAS, GAGAN) hybrid engine
The user can freely set :
1 Data Rate :. 9600bps ( default ) [ Optional: 1200,2400,4800,19200,38400,57600,115200,230400,460800,921600 ]
2 output statement :. NMEA 0183 V3.0 (GGA, GSA, GSV, RMC, VTG, GLL) protocol data , can be set to match.
3 Data refresh rate :. 1HZ-5HZ refresh rate.
4.PPS Indicator: Steady or not positioned close before ; After positioning flashes.
5 AGPS:. Support independent auxiliary positioning system.
6 Enable Control : Support for external IO trigger switch state control module.
7 satellite quality control: a rich set of satellite software quality control and prevention elegant setting .
8 scenarios : from walking mode - Car Mode - Static Mode - portable mode - airborne mode and 2D & 3D positioning the user can freely set .
Supported operating systems : Windows 8/7/Vista/XP/CE
VK16U6 weight is about 14 grams, with the specifications of the product in its class is the smallest, highest performance , most sophisticated GPS module.
Built with fast positioning and tracking 50 satellites ability ublox chip , built-in backup battery , built-in high gain LNA,, Dual LDO, PCB Immersion Gold process , a large area of radiology GPS signal , not the general locator comparable. Better and more stable signal . With selectable baud rate and so on 4800,9600,19200,38400,5700,115200 RMC, GSV, GSA, GGA, VTG, GLL and other statements that can be freely combined , allowing you to use the product more easily .
Model : VK16U6
Main chip : ublox
C / A code , 1.023MHz stream
Receive Band : L1 [1575.42MHz]
Tracking Channels: 50
Support DGPS [WAAS, EGNOS and MSAS]
Positioning performance
2D plane : 5m [ average ]
2D plane : 3.5m [ average ] , there DGPS auxiliary .
Drift : <0.02m / s
Timing Accuracy : 1us
Reference coordinate system : WGS-84
Maximum altitude: 18,000 m
Maximum speed : 500m / s
Acceleration : <4g
Electrical properties:
Tracking sensitivity :-162dBm
Acquisition sensitivity :-146dBm
Cold Start Time : 32s [ average ]
Warm start time : 32s [ average ]
Hot start time : 1s [ average ]
Recapture Time : 0.1s [ average ]
Operating temperature:
-30 ℃ to +80 ℃

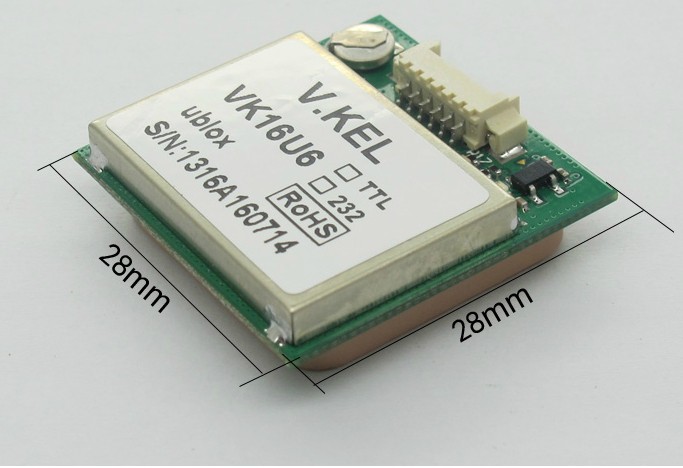

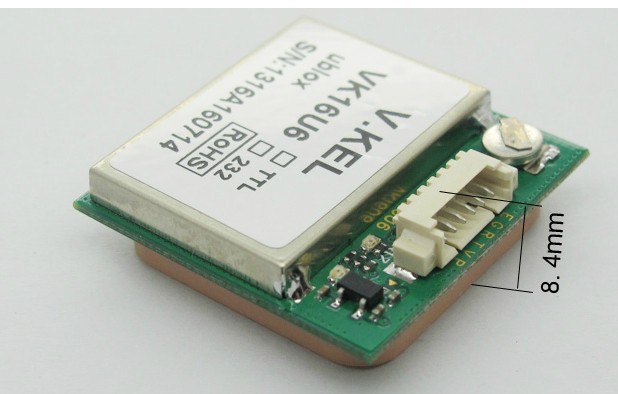

Package size :
28 * 28 * 8.4mm;
Cable length 2m
Output:
Output data baud rate 4800bps or 9600bps or customized according to customer requirements
SiRF binary output data type or NMEA 0183 V3.0 (GGA, GSA, GSV, RMC, VTG) protocol data
