VK-163 G-MOUSE, headphone line interface, GPS receivers, GPS MODULE, tachograph

: Large Image:VK-163 G-MOUSE, headphone line interface, GPS receivers, GPS MODULE, tachograph

Product Details:

Place of Origin:	CHINA
Brand Name:	LXXTECH
Model Number:	LXX-0487
Certification:

Payment & Shipping Terms:

Minimum Order Quantity:	10
Price:	Good price
Delivery Time:
Payment Terms:	TT ,paypal,ESCROW
Supply Ability:

Detailed Product Description

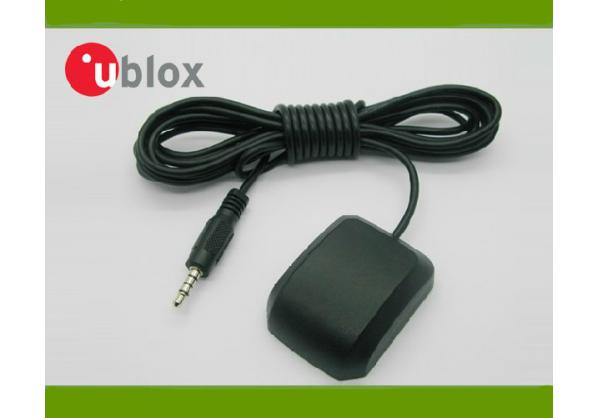

VK-163 G-MOUSE, headphone line interface, GPS receivers, GPS MODULE, tachograph

Model: VK-163

Main chip: ublox

C / A code, 1.023MHz stream

Receive Band: L1 [1575.42MHz]

Tracking Channels: 50

Support DGPS [WAAS, EGNOS and MSAS]

Positioning performance

2D plane: 5m [average]

2D plane: 3.5m [average], there DGPS auxiliary.

Drift: <0.02m / s

Timing Accuracy: 1us

Reference coordinate system: WGS-84

Maximum altitude: 18,000 m

Maximum speed: 500m / s

Acceleration: <4g

Electrical properties:

Tracking sensitivity:-160dBm

Acquisition sensitivity:-146dBm

Cold Start Time: 32s [average]

Warm start time: 32s [average]

Hot start time: 1s [average]

Recapture Time: 0.1s [average]

Operating temperature: -30 ℃ to +80 ℃

Package Size: 49 * 38 * 16mm;

Cable length: 2m

Output: Output data baud rate of 4800bps or 9600bps

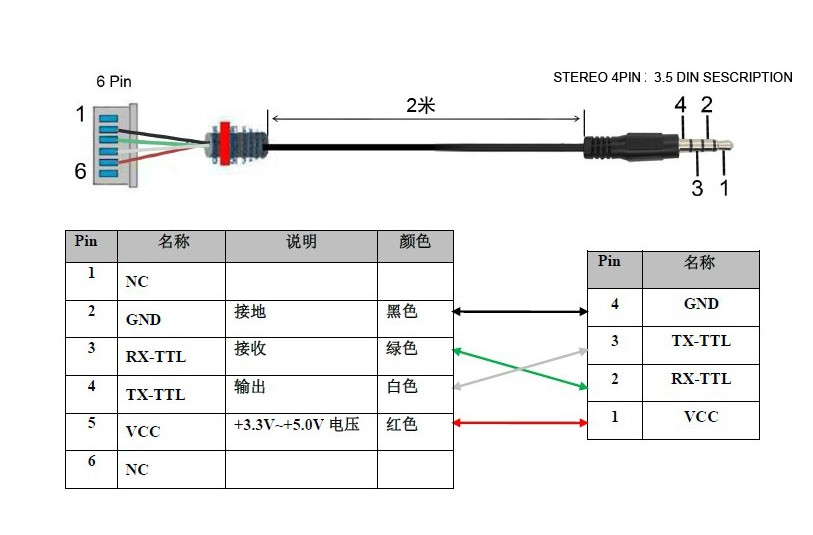

Interface definition:

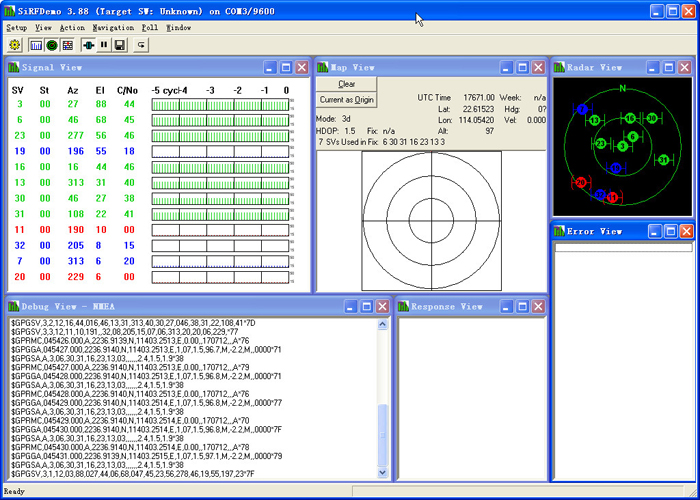

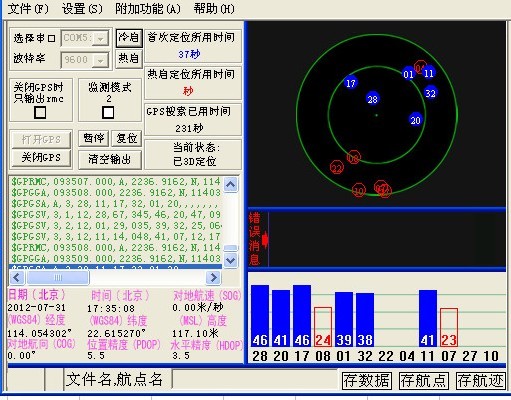

VK-163 Star Search results

Signal is super, the first 37 seconds to locate, hot start second, the signal value super!

Product Tag : VK-163 G-MOUSE
