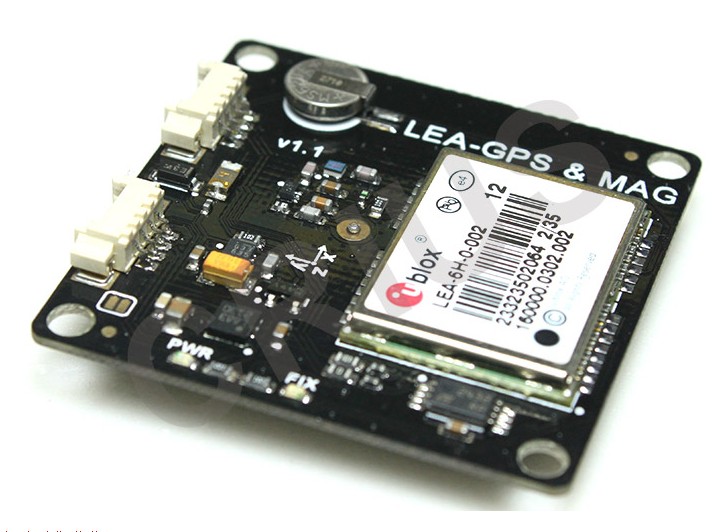

LEA-6H GPS Module with compass reluctance HMC5883L
Product Features :
◆ ublox LEA-6H GPS module

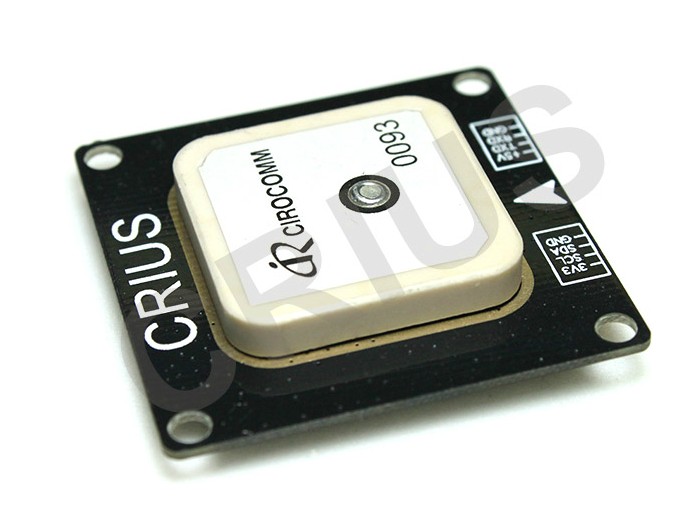

◆ Cirocomm 25x25x4mm ceramic antenna
◆ LNA amplifier / SAW filters
◆ HMC5883L compass
◆ I2C EEPROM 32Kbit memory
◆ 3V rechargeable lithium battery, for hot / warm start
◆ Power and position indicator
◆ Ultra Low Noise LDO Regulators
◆ Supply voltage 5V, interfaces with reverse polarity protection
◆ can instead ( soldering jumper on the board ) internal LDO 3.3V using an external power supply
ublox LEA-6 Series GPS module features:
· U-blox 6 positioning engine :
· Tracking sensitivity up to -162 dBm, cold start sensitivity of -148 dBm
· Faster capture speed with AssistNow Autonomous functions
· Configurable Power Management
· GPS / SBAS hybrid engine (WAAS, EGNOS, MSAS)
· Anti-jamming technology
· Easy integration with u-blox wireless modules
· A-GPS: AssistNow Online and AssistNow Offline services , in line with OMA SUPL specification
· Backward compatible ( hardware and firmware ) ; may migrate from LEA-5 or LEA-4 series easily
· LCC package using a reliable , high manufacturing cost
* Compatible with u-blox 's Android GPS Solutions
· Based on high quality AEC-Q100 GPS chip
· Production processes comply with ISO / TS 16949 certification requirements
· Quality testing processes meet the ISO 16750 standard
