LM2596 LM2596S DC-DC adjustable step-down power Supply module NEW ,High Quality

: Large Image:LM2596 LM2596S DC-DC adjustable step-down power Supply module NEW ,High Quality

Product Details:

Place of Origin:	CHINA
Brand Name:	LXXTECH
Model Number:	LXX-0313
Certification:

Payment & Shipping Terms:

Minimum Order Quantity:	50
Price:	Good price
Delivery Time:
Payment Terms:	TT ,paypal,ESCROW
Supply Ability:

Detailed Product Description

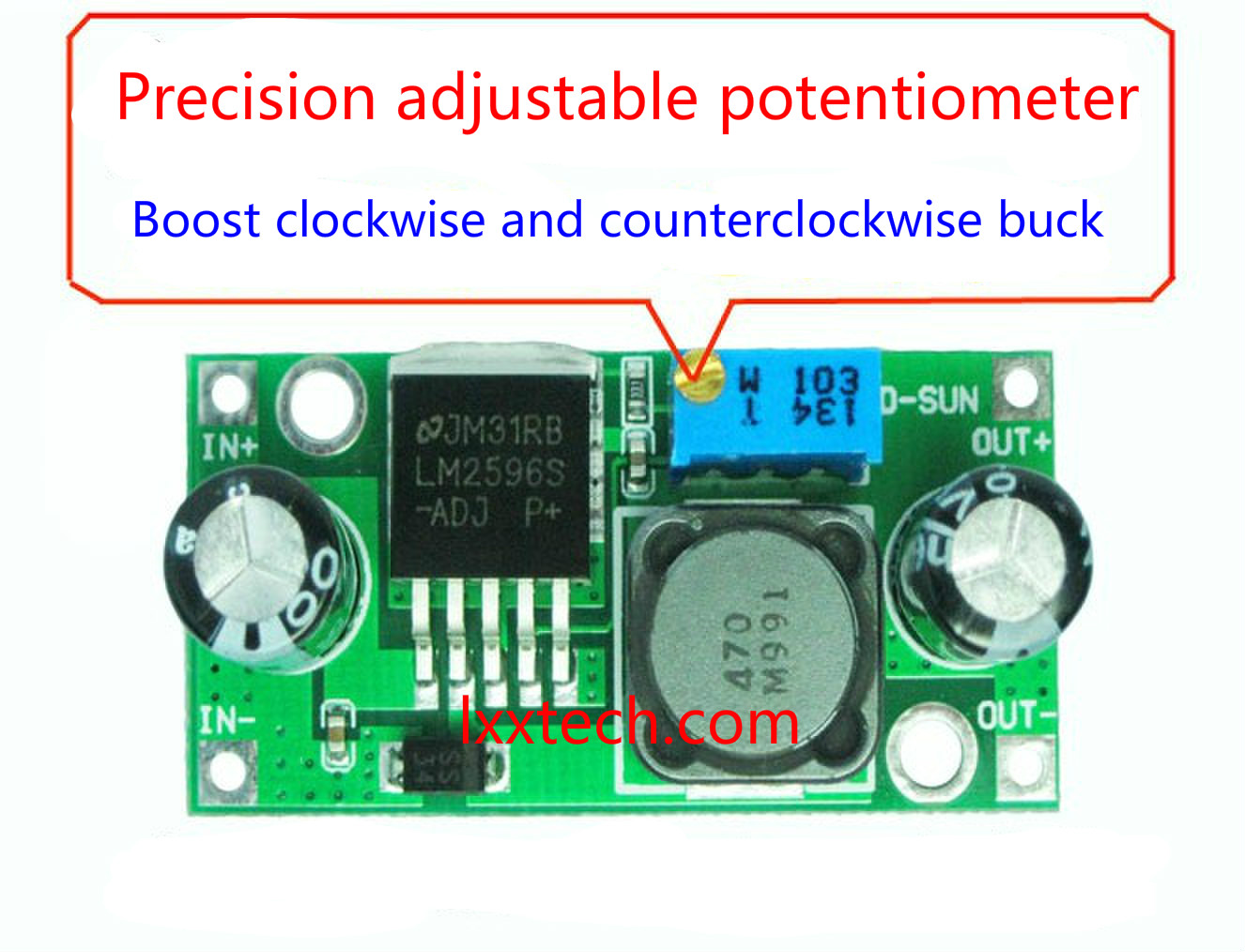

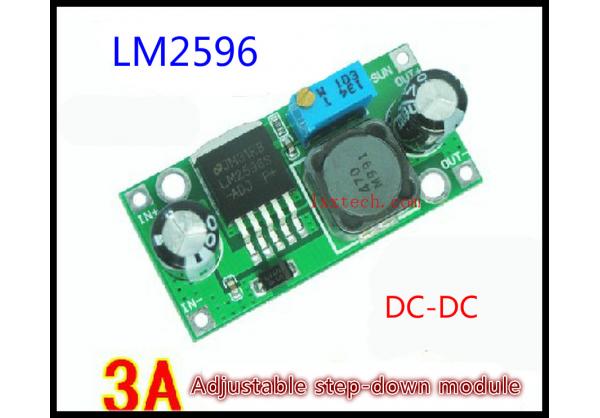

LM2596 LM2596S DC-DC adjustable step-down power Supply module NEW ,High Quality

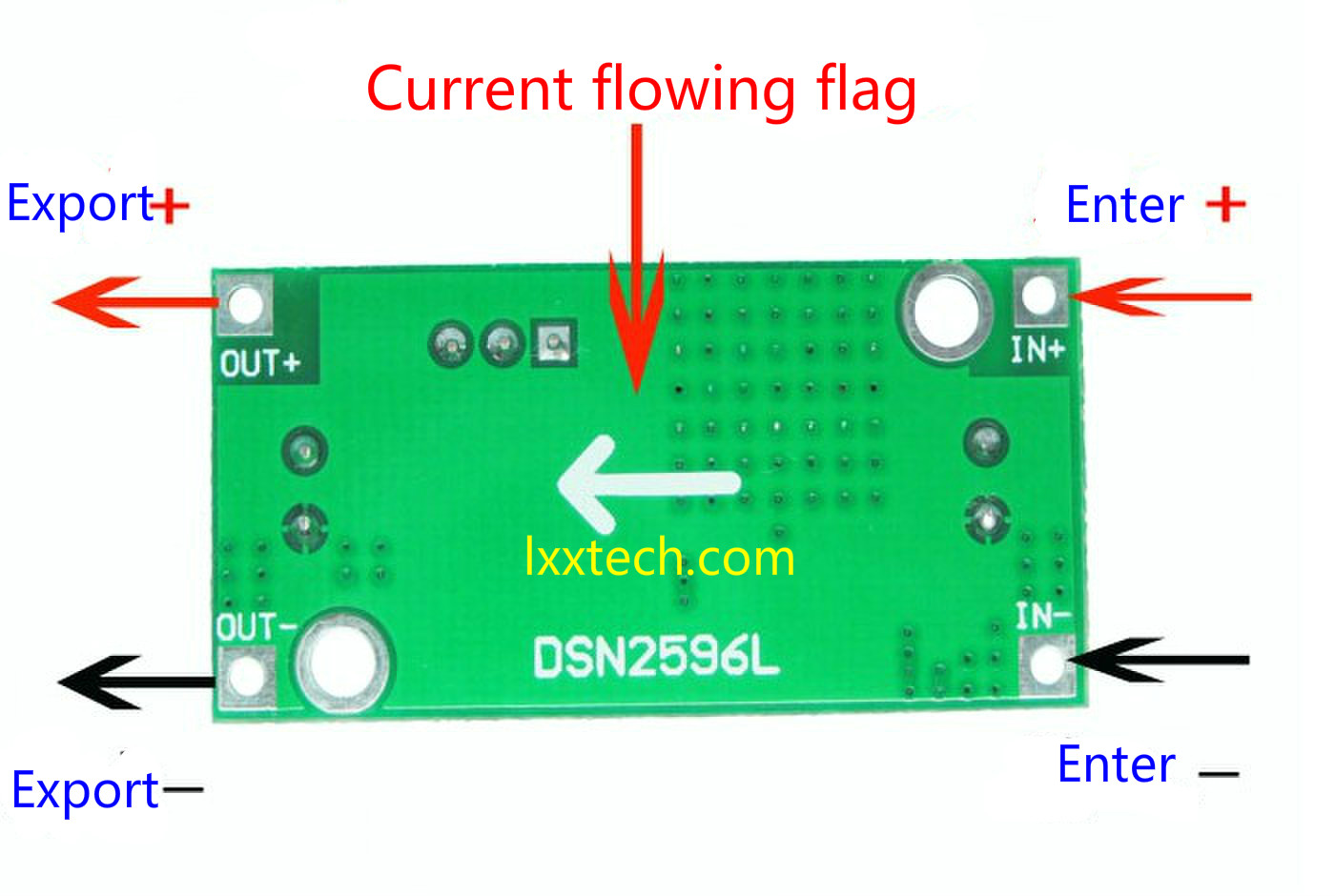

IN-IN + input positive and negative input!

OUT-OUT + output positive and negative output

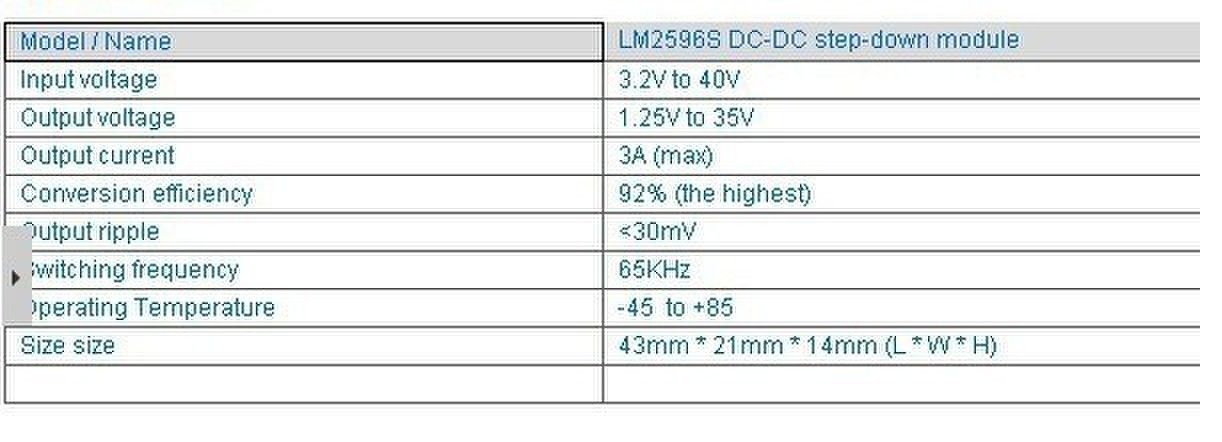

Input voltage range: DC 3.2V to 40V (input voltage output voltage must be higher than 1.5V above can not boost.)

Output Voltage Range: 1.25V to 35V DC voltage is continuously adjustable, high efficiency (up to 92%) the maximum output current of 3A.

Measured 12V input, 5V load regulation at 1A output current is less than 1%

Note: This is the buck module, the input voltage must be higher than the output voltage.

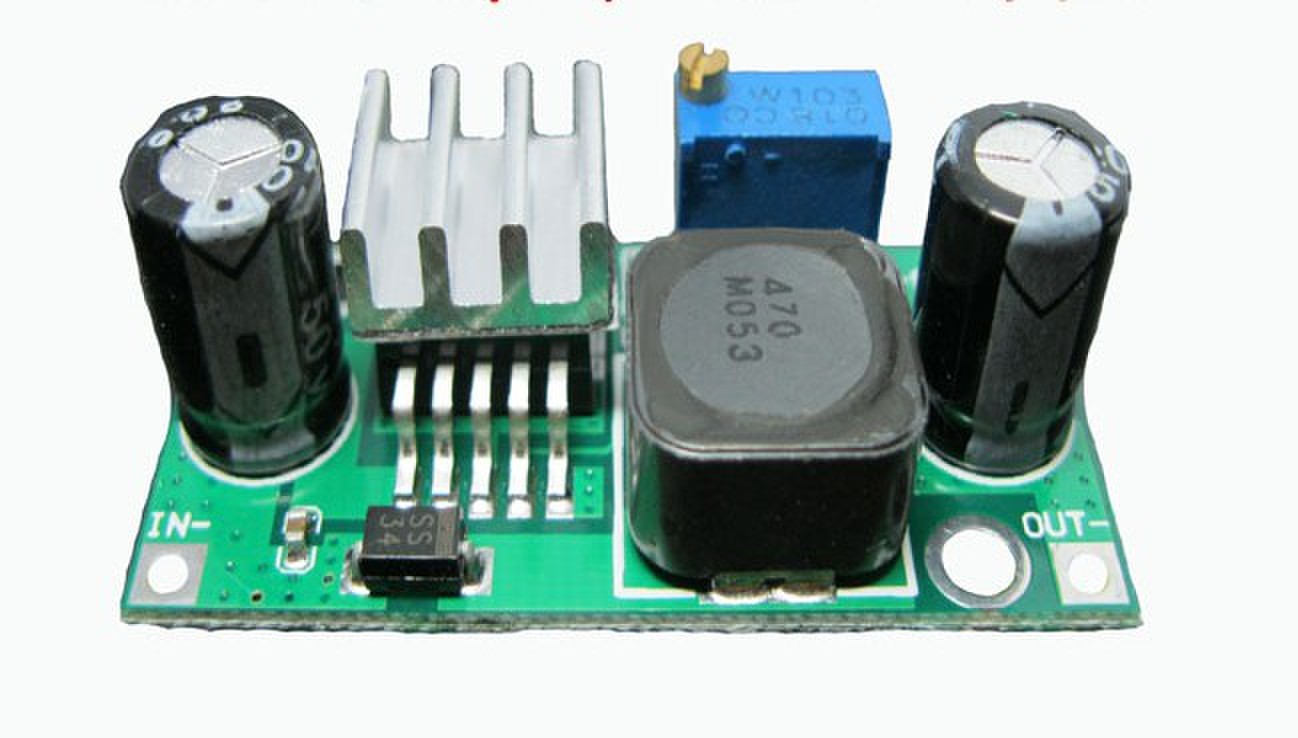

The output current is greater than 2.5A (or output power greater than 10W) to work long hours, please add heat sink.

Product Tag : LM2596 green
