XL6009 400KHz 4A switching current booster module, DC-DC buck module 4-30 rpm 1.25-35V adapter autom

: Large Image:XL6009 400KHz 4A switching current booster module, DC-DC buck module 4-30 rpm 1.25-35V adapter autom

Product Details:

Place of Origin:	CHINA
Brand Name:	LXXTECH
Model Number:	LXX-0316
Certification:

Payment & Shipping Terms:

Minimum Order Quantity:	20
Price:	Good price
Delivery Time:
Payment Terms:	TT ,paypal,ESCROW
Supply Ability:

Detailed Product Description

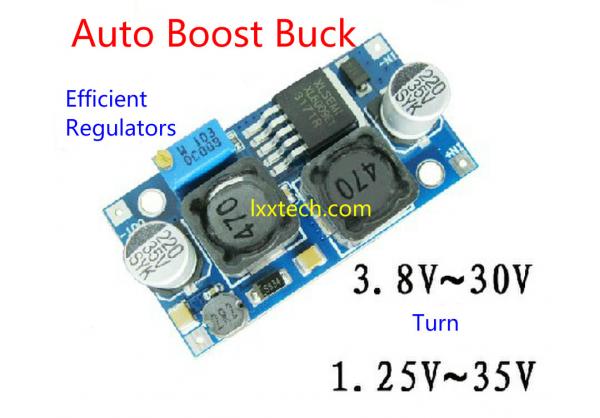

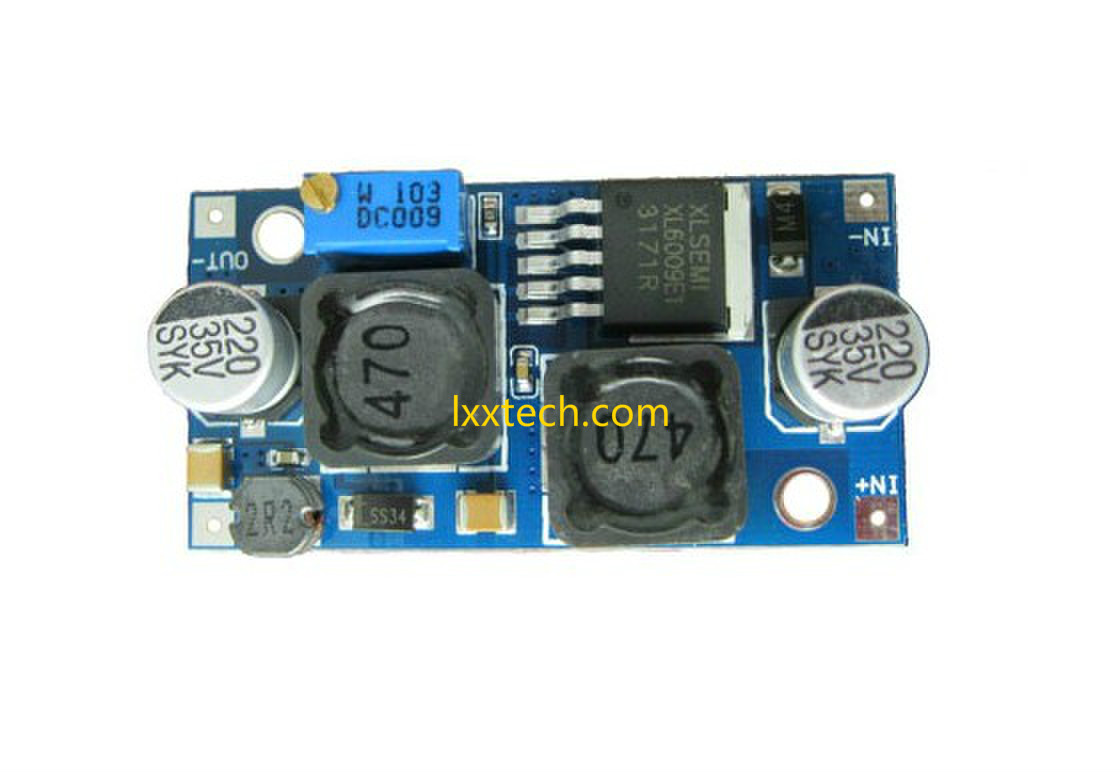

XL6009 400KHz 4A switching current booster module

Baby Description:

When the car starts voltage will be pulled down to 7V or less or less, the voltage at high engine speeds up to 15V or higher. For working hard to work on 12V appliances, this automatic buck module solves this problem, regardless of the input voltage is 5V or 12V or 32V, the output can be stabilized at 12V.

● Wide input voltage 5V ~ 32V;

● Wide Output Voltage 1.25V ~ 35V (with automatic lifting pressure, the scope of work, any arbitrary voltage input voltage output can be regulated);

● Built-4A efficient MOSFET switch, so that the efficiency up to 94%; (LM2577 current is only 3A)

● High switching frequency 400KHz, ripple smaller and smaller. (LM2577 frequency only 50KHz)

Application areas:

Auto regulator, solar photovoltaic, wind power applications such as voltage instability.

Technical parameters:

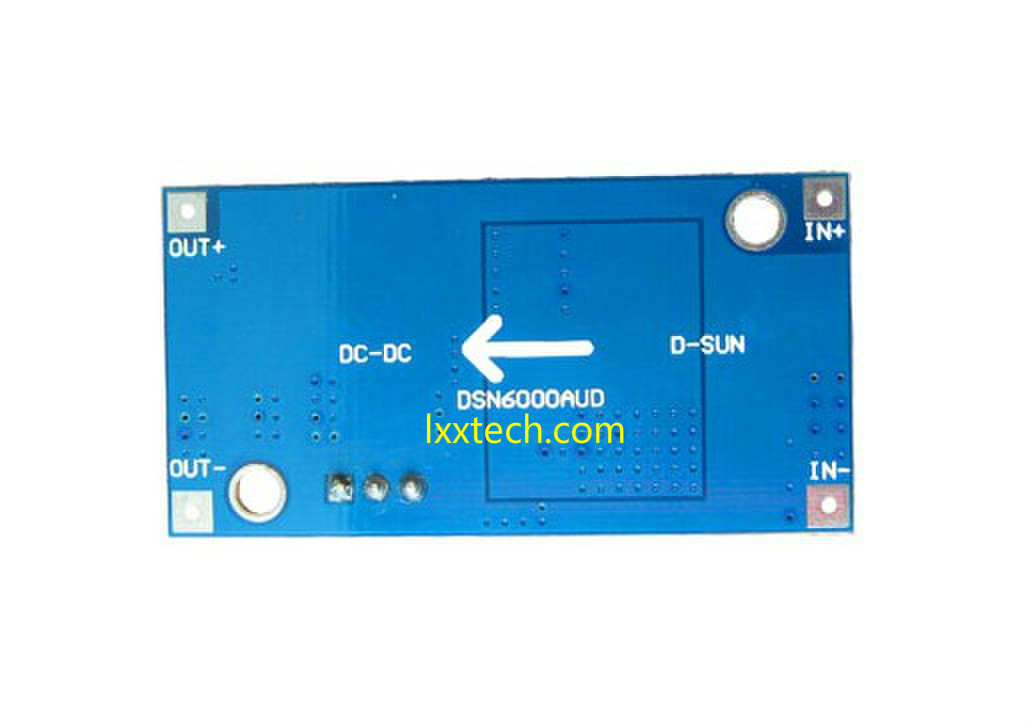

Model specifications: DSN6000AUD automatic buck module

Module Properties: non-isolated step-up (BOOST)

Rectification: Non-Synchronous Rectification

Input range: 3.8V-32V

Output Range: 1.25V-35V

Input Current: 3A (maximum), load 18mA (5v input, 8v output, no-load voltage is less than 18mA.d higher load current increases.)

Conversion efficiency: <94% (the greater the pressure, the lower the efficiency)

Switching Frequency: 400KHz

Output ripple: 50mV (the higher the voltage, the greater the current, the greater the ripple)

Load regulation: ± 0.5%

Voltage regulation: ± 0.5%

Working temperature: -40 ℃ ~ +85 ℃

Dimensions: 48mm * 25mm * 14mm (L * W * H)

Product Tag : XL6009 400KHz 4A---DSN6000AUD
