51 SCM minimum system board / development board for smart car, robot accessories

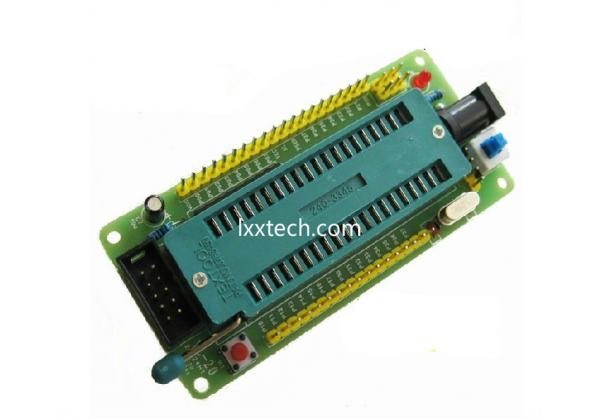

: Large Image:51 SCM minimum system board / development board for smart car, robot accessories

Product Details:

Place of Origin:	CHINA
Brand Name:	LXXTECH
Model Number:	LXX-0548
Certification:

Payment & Shipping Terms:

Minimum Order Quantity:	20
Price:	good price
Delivery Time:
Payment Terms:	TT ,paypal,ESCROW
Supply Ability:

Detailed Product Description

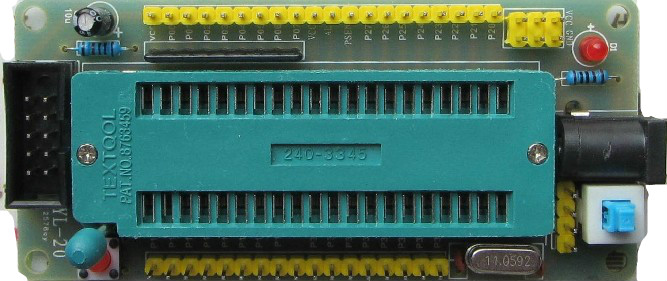

51 SCM minimum system board / development board for smart car, robot accessories

Baby Description:

1.IO mouth all the leads, the classic 51 minimum system, eliminating the hassle of welding

2 Integrated ISP 10P download interface, easy to download AT89S52 microcontroller.

3 is welded socket hole for easy replacement of the crystal (the default with 11.0592M)

4 support chips:. STC89C52 STC12C5A60S2 STC11/10x series AT89S52 chip and pin compatible with the above chips

5 a power switch, experimental convenience.

6 Power input 2 ways: DC-005 Power Block (supporting the transposon is 5.5 * 2.1) and a single pin (next to the power switch)

7 3-way expansion outside VCC, GND, as shown in Figure needle row.

8. P0 port with pull-up resistor.

9 reset mode: power-on reset and external reset button.

10. Adopt green IC lock seat, easy to replace the chip.

11 Our own development and production, supply of long-term stability.

13 board size: 4.1cm * 8.9cm

Product Tag : 51 SCM minimum system board
