: Large Image:STM8S development board system board, the minimum core board STM8S103F3P6

Detailed Product Description

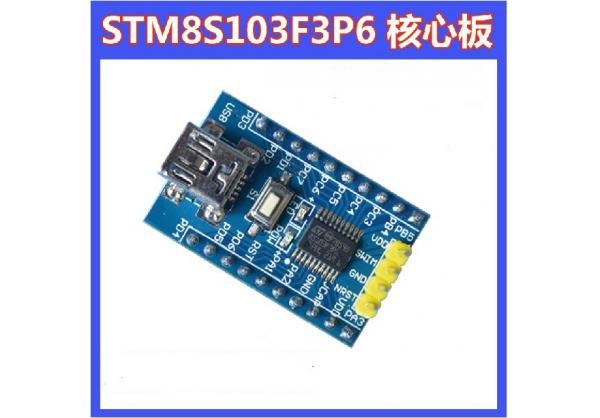

STM8S development board system board, the minimum core board STM8S103F3P6

STM8S_MiniKit_20 core board main features:

1: Use STM8S103F3P6 as the master IC

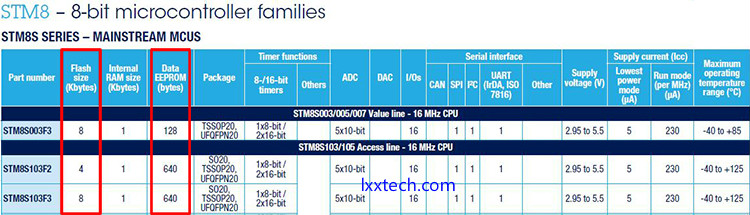

Chip resource description:

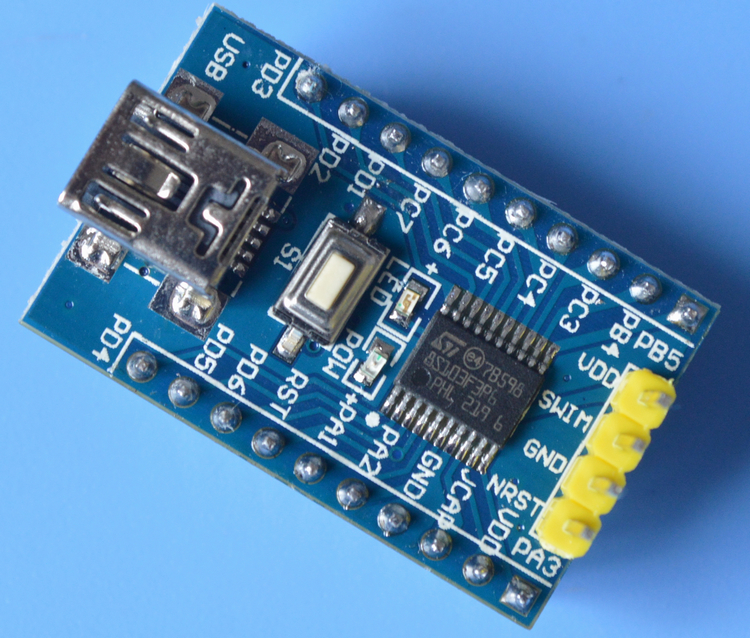

2: leads all pins next to the pin marked out the pin functions, welded pin

3: Support SWIM debug mode

4: USB MINI line to take power, or 2.54 to take power

Product Tag : STM8S development board system board
