tq2440 core board, arm9 S3C2440 core board, 256MB FLASH 64MB sdram

: Large Image:tq2440 core board, arm9 S3C2440 core board, 256MB FLASH 64MB sdram

Product Details:

Place of Origin:	CHINA
Brand Name:	LXXTECH
Model Number:	LXX-0566
Certification:

Payment & Shipping Terms:

Minimum Order Quantity:	2
Price:	Good price
Delivery Time:
Payment Terms:	TT ,paypal,ESCROW
Supply Ability:

Detailed Product Description

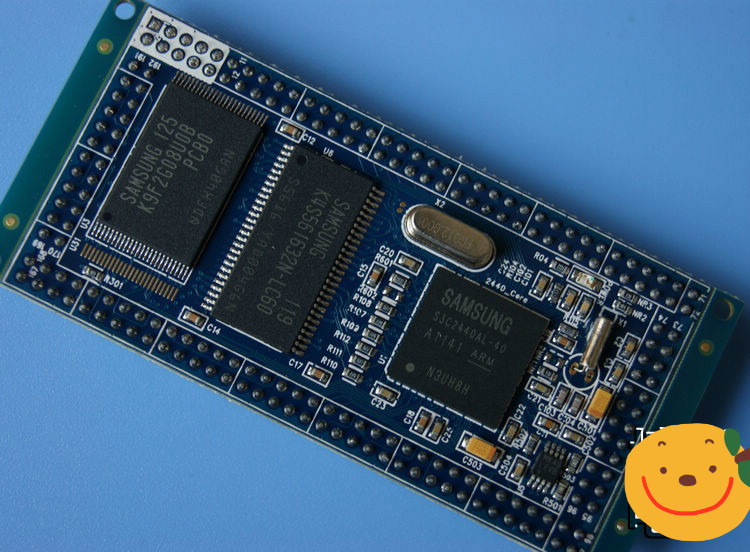

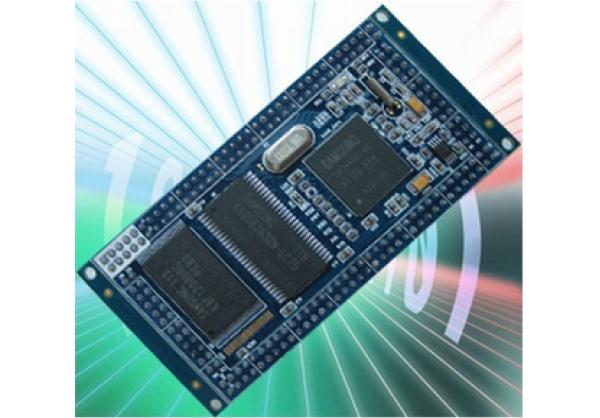

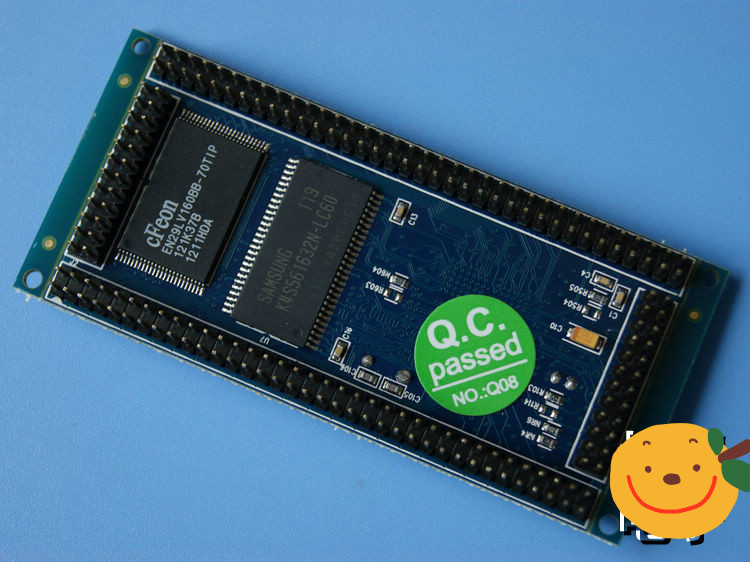

tq2440 core board, arm9 S3C2440 core board, 256MB FLASH 64MB sdram

Ultra-small core board , cheaper places, more functions ; plug pin design , with good performance and superior physical connection seismic performance ; using six military wiring design of plants PCB, Immersion Gold process, with good electrical connection performance ratio on the market four wiring board to run the program more stable .

Long time to market, through the application of our customers projects currently Core V1.0 core board has a safe stable work two years , Core V2.0 core board also secure a stable job a year and a half ; ( where V1 .0 core board in small quantities . ** successful trial ) ; through industrial users high temperature measurement, the measured electromagnetic interference ( simultaneously test a variety of development board , TQ2440 development board 's only through ) , measured by strong dust environment .

Rich expansion pins , leads 192 function pins, leads almost all S3C2440 hardware resources , the following table shows protel PCB backplane to provide for their own engineering design floor needs

2440v2 core board features:

CPU Processor : Samsung S3C2440AL, clocked at 400MHz ( up to 533MHz)

SDRAM Memory: Onboard 64MB SDRAM ( standard configuration ) ( according to user needs can be extended to 128MB, providing complete solutions ), 32bit data bus SDRAM clock frequency up to 100MHz ( support running to 133MHz)

Nand Flash: Onboard 256MB Nand Flash ( standard configuration ) , Nonvolatile, tolerance is ( according to user need to upgrade to 512MB ~ 1GB, providing complete solutions )

Nor Flash: onboard 2MB Nor Flash ( upgradeable up to 8MB)

CorePower: Professional 1.25V core voltage power supply, CPU heat phenomenon perfect solution

Power: core board with a 3.3V supply

Powerled: 1 core board power indicator

Core Board Interface : Interface Model DC-2.0 Dual Inline

Size : Miniature core board : 37mm x 74mm
