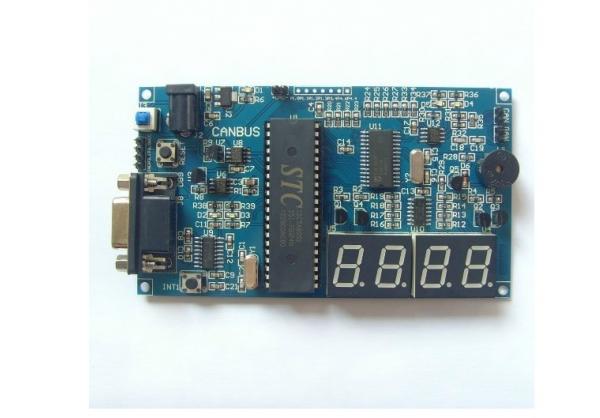

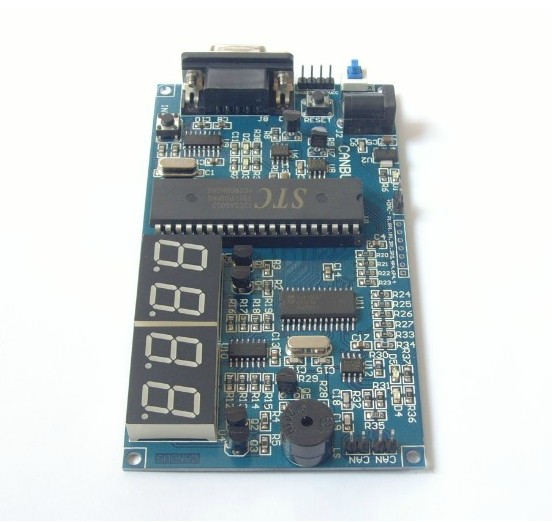

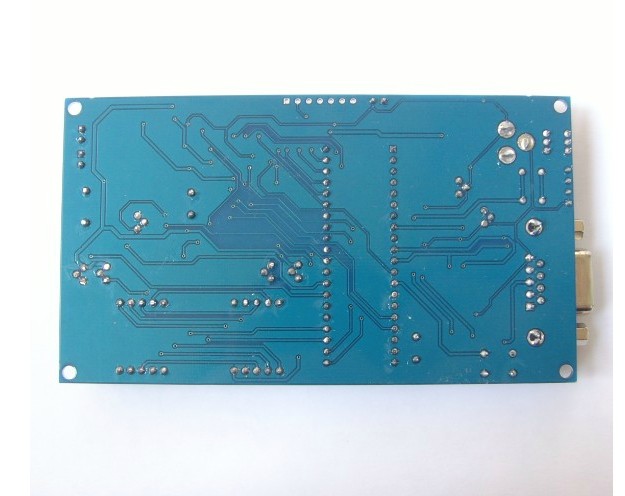

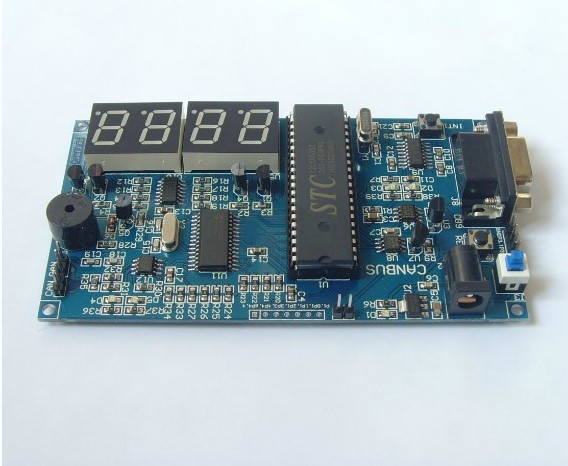

: Large Image:SJA1000 51 CAN development board learning board

Product Details:

Place of Origin:	CHINA
Brand Name:	LXXTECH
Model Number:	LXX-0574
Certification:

Payment & Shipping Terms:

Minimum Order Quantity:	2
Price:	Good price
Delivery Time:
Payment Terms:	TT ,paypal,ESCROW
Supply Ability:

Detailed Product Description

SJA1000 51 CAN development board learning board

Description:

1, single chip: STC89C12C5A60S2

2, CAN uses SJA1000 +82 C250 constitute CAN controllers and drives, communications status indicator shows there is support from the transceiver functions, also supports multi-point communications network

3, onboard MAX232 chip, RS232 serial communication, you can easily communicate with the PC, to achieve online programming, and CAN communication module composite applications can be realized with the CAN bus converter 232, and is a two-way

4, onboard LM35 + LM358 chip, temperature measurement function

5, the board TLC5615 + TL431 chip, DA conversion, Note: STC89C12C5A60S2 AD conversion chip contains

6, a two-board 74HC164 +2 digital tubes display subsystem, you can simply send and receive data display

7, onboard INT1 freedom buttons, you can take the initiative to send function keys to achieve, to achieve human-computer interaction

8, onboard 5V buzzer, you can easily do the voice packets. **

9, the board 9V power supply, on-board AMS1117-5 power chip

Product Tag : SJA1000 51 CAN development board
