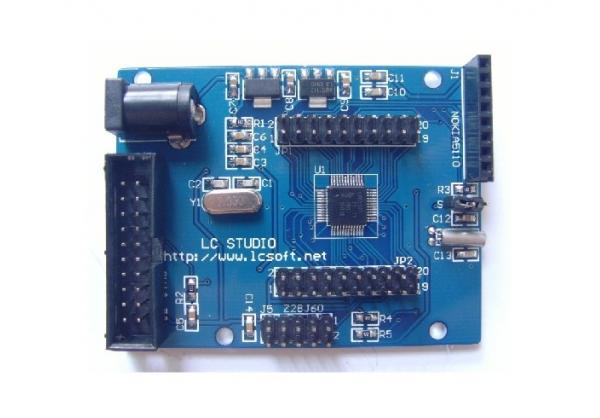

: Large Image:LPC2103 ARM core board minimum system development board

Product Details:

Place of Origin:	CHINA
Brand Name:	LXXTECH
Model Number:	LXX-0600
Certification:

Payment & Shipping Terms:

Minimum Order Quantity:	5
Price:	Good price
Delivery Time:
Payment Terms:	TT ,paypal,ESCROW
Supply Ability:

Detailed Product Description

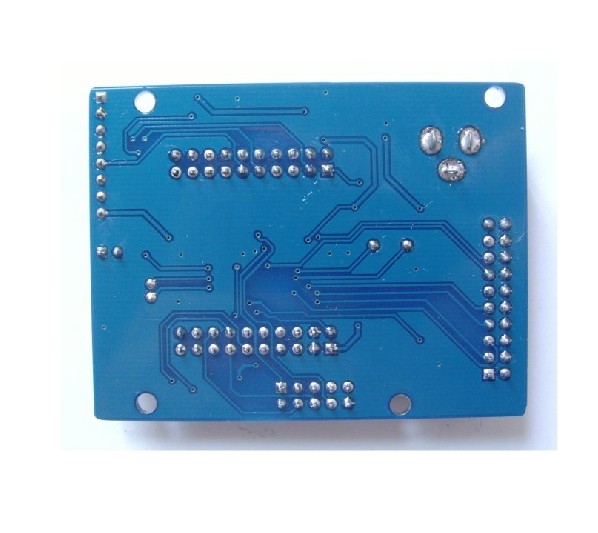

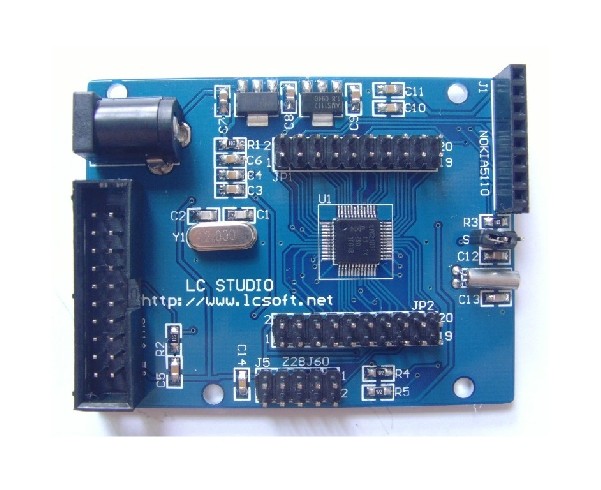

LPC2103 ARM core board minimum system development board

Description:

1. onboard chip LPC2103

2, to provide 32.768KHz and 12MHz Two Crystal Connection

3,3.3 V and 1.8V power supply circuit, complete filtering measures

4, using the USB interface 5V power supply

5, onboard 20-pin JTAG interface

6, leads all the IO ports are

7, support Nokia5110 LCD output

8, support ENC28J60 network module

Product Tag : LPC2103 ARM core board
