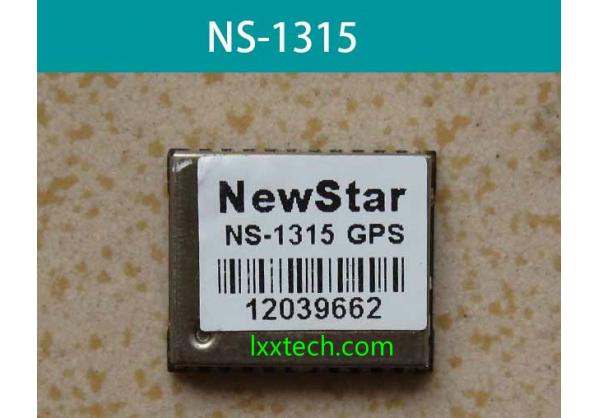

NS-1315 GPS module / precision drift amplification using the built-TCXO TCXO

: Large Image:NS-1315 GPS module / precision drift amplification using the built-TCXO TCXO

Product Details:

Place of Origin:	CHINA
Brand Name:	LXXTECH
Model Number:	LXX-0473
Certification:

Payment & Shipping Terms:

Minimum Order Quantity:	20
Price:	Good price
Delivery Time:
Payment Terms:	TT ,paypal,ESCROW
Supply Ability:

Detailed Product Description

NS-1315 GPS module / precision drift amplification using the built-TCXO TCXO

Product description:

Positioning performance

Open sky 2D plane: 2m [average]

Open sky 2D plane: 1.5m [average], there WAAS assistance.

Drift: <0.02m / s

Timing Accuracy: 100ns

Reference coordinate system: WGS-84

Maximum altitude: 18,000 m

Maximum speed: 515m / s

Acceleration: <4g

Electrical properties:

Tracking sensitivity:-159dBm

Acquisition sensitivity:-147dBm

Cold Start Time: 38s [average]

Warm start time: 36s [average]

Hot start time: 1s [average]

Recapture Time: 0.1s [average]

Operating temperature:

-30 ℃ to +80 ℃

Package size:

15 * 13 * 2.5mm

The electrical properties of the interface:

Wide voltage range: Mains to +3.3 V + / -10%, RTC power supply is +2.5-3.6 V

Using active antenna (15 ~ 26dB/3.3V), or passive antenna

Output data baud rate 4800bps or 9600bps or customized according to customer requirements

SiRF binary output data type or NMEA 0183 V3.0 (GGA, GSA, GSV, RMC, VTG) number of agreements

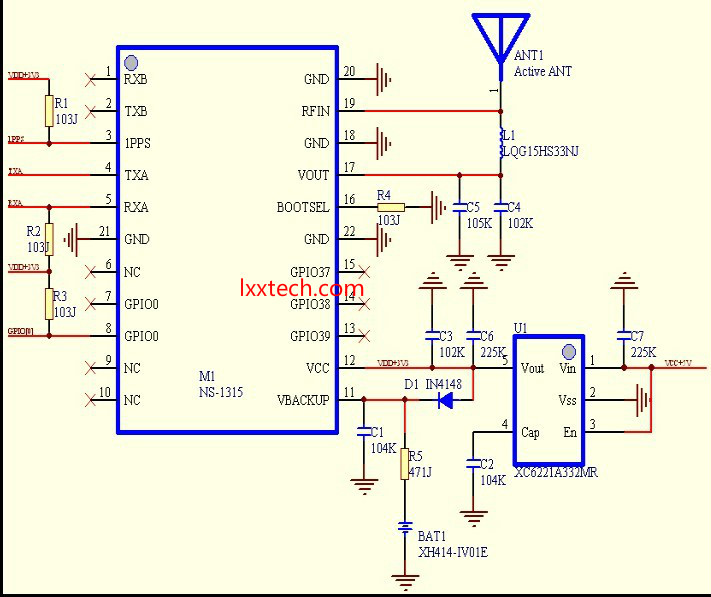

Peripheral circuits:
