STM32 development board / minimum system board (STM32F103ZET6)

: Large Image:STM32 development board / minimum system board (STM32F103ZET6)

Product Details:

Place of Origin:	CHINA
Brand Name:	LXXTECH
Model Number:	LXX-0561
Certification:

Payment & Shipping Terms:

Minimum Order Quantity:	2
Price:	Good price
Delivery Time:
Payment Terms:	TT ,paypal,ESCROW
Supply Ability:

Detailed Product Description

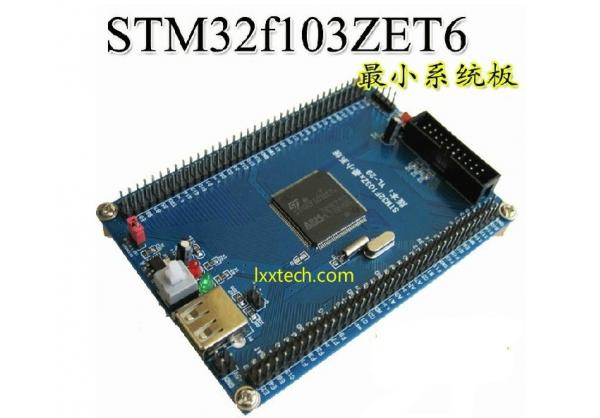

STM32 development board / minimum system board (STM32F103ZET6)

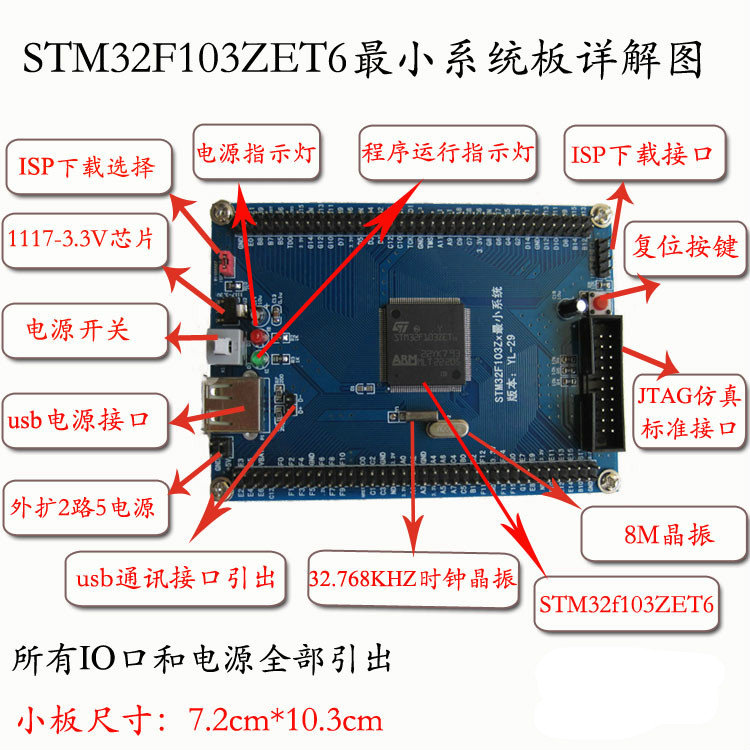

Motherboard configuration:

1, STM32F103ZET6 chip main parameters:

CPU frequency (M) 72

FLASH ( bytes ) 512KB

RAM ( bytes ) 64KB

Timer 8

SPI interface 3

IIS interface 2

IIC interface 2

USART interfaces 5

FSMC 1

USB interface 1

CAN interface 1

SDIO interface 1

ADC ( channel ) 21

DAC ( channel ) 2

I / O port 112

Package LQFP144

2, the standard ARM JTAG 20 PIN Simulation Interface Block ( for easy connection JLINK, ULINK2 other mainstream emulator )

3, USB -powered, the largest provider of 800mA current

4 , support for serial port 1 download , remove the shorting cap figure to enter the serial ISP download

5 , adjustable crystal clock oscillator socket hole 32.768KHZ

6, USB communication pin single row of pins leads, party do USB communication experiment ( need to connect with their own line of DuPont )

7 , all IO and 3.3V power supply interfaces leads to facilitate access external circuit experiment

8 , external expansion 2-way 5V, GND power supply, easy connection to external circuitry experiment .

9 , power-on reset ( blue power switch ) and the reset button ( black button ) .

10 , the power indicator ( red ) and the program run indicator ( green )

11, ISP download interface specifically leads to facilitate external serial small plates restaurant download programs and communications.

Shipping list:

1.1x MINI-STM32 development board

2.4 pairs of studs nuts

3 .1 x USB power cable

Product Tag : STM32 development board(STM32F103ZET6)
