: Large Image:TCT40-16R / T;sensor probe RT

Product Details:

Place of Origin:	CHINA
Brand Name:	LXXTECH
Model Number:	LXX-F0002
Certification:

Payment & Shipping Terms:

Minimum Order Quantity:
Price:	Good price
Delivery Time:
Payment Terms:	TT ,paypal,ESCROW
Supply Ability:

Detailed Product Description

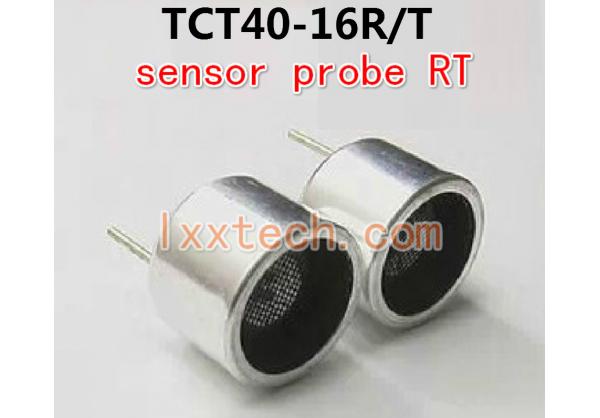

sensor probe RT/RT split ultrasound / ultrasonic sensor / ultrasonic probe

Model: TCT40-16R / T (diameter 16mm)

1 Nominal Frequency (KHz): 40KHz

2 emission sound pressure at10V (0dB = 0.02mPa): ≥ 117dB

3 receiver sensitivity at40KHz (0dB = V / ubar): ≥-65dB

4 Capacitance at1KHz, <1V (PF): 2000 ± 30%

One for receiving and one for transmit, receive split, T is transmitting, R is received

Part number: NU25C16T-1
Using Method: Transmitter
Construction: Open structure type
Center frequency: 40.0 ± 1.0KHz
Sound pressure level: 112dB min.
Sensitivity
Capacitance: 2400Pf ± 20%
Maximum input voltage: 60Vp-p
Directivity: 60 ° ± 15 ° (-6dB)
Operating temperature: -20 ° C ~ +70 ° C
Storage Temperature: -40 ° C ~ +85 ° C
Weight: 2.2g

Product Tag : sensor probe RT/RT split ultrasound / ultrasonic sensor / ultrasonic probe
