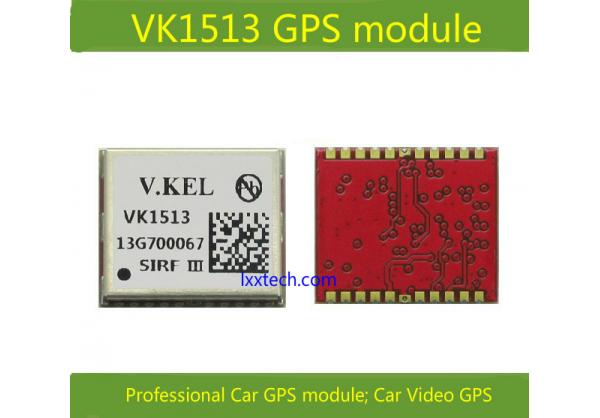

VK1513 GPS module, professional GPS, industrial-grade GPS, Car GPS, 1.56CM*1.38*0.25
Description :
VK1513 is the use of third-generation SiRF high sensitivity, low power consumption chip StarIII. Built-in ARM7TDMI CPU can meet the customized needs.
The ability to quickly locate and track 20 satellites , and set aside outside interface. Ultra-small , 200,000 -chip satellite tracking operation , a substantial increase in the ability to search and operational satellite signals
Applications:
Navigation (PND + phone ) , tracker ( vehicle and personal ) , and sailing.
Product Features:
Channels: 20 parallel channel
Frequency : L1 1575.42MHZ
C / A code (1.023MHZ chip rate )
Tracking Sensitivity :-159dB
Dynamic Performance:
Speed: 515 m / sec.
Acceleration : 4g
Bumps : 20 m / s
Capture time:
Re- acquisition time : 0.1 seconds
Hot start time: 8 seconds
Warm start time: 38 seconds
Cold start time: 42 seconds
Accuracy
Location : 10 meters (2D RMS) 1-5 meters (DGPS)
Speed: 0.1 m / s
Time : 1ms
Data Characteristics
I / O information : two full-duplex serial TTL interface
Data transfer rate: 4800 ~ 38400 ( standard : 4800 )
Format : SiRF Binary and NMEA-0183, version 2.2
NMEA-0183 CGA, GSA, GSV, RMC (VTG, GLL, ZDA optional )
SiRF binary position, speed, altitude, status and control
DGPS Protocol : RTCM SC-104, Type 1, 2 and 9
Pulse delay : 100ms
Electrical Characteristics
Input voltage : 3.3 ~ 5VDC
Backup Power : DC 3V
Input Current : 60mA
Environmental Characteristics
Operating temperature : -30 ~ +70 ℃
Storage range : -40 ~ +85 ℃

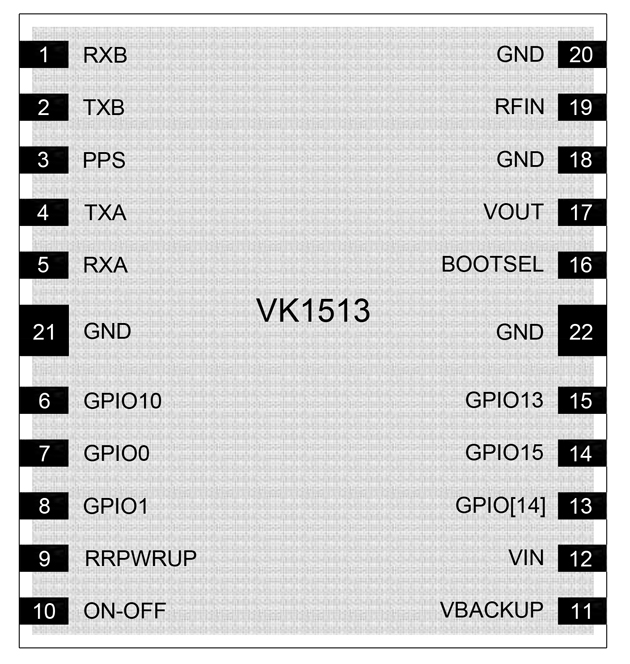

VK1513 module pin assignment diagram:

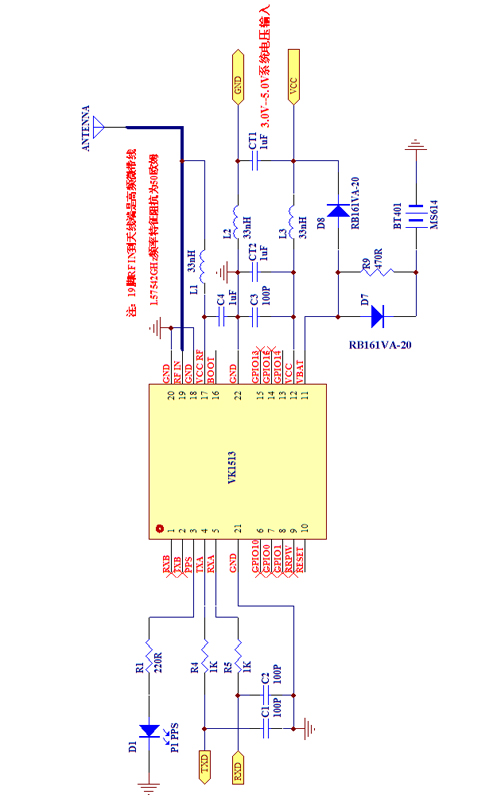

VK1513 module circuit Application Schematic:

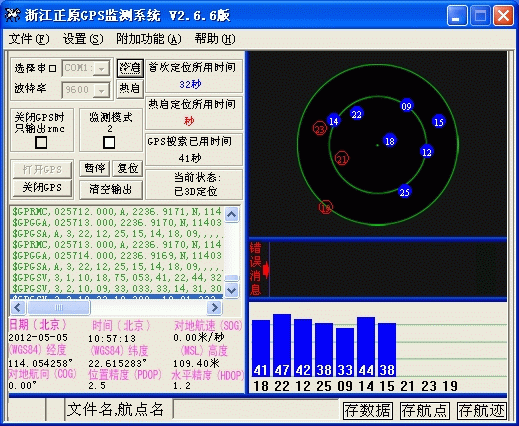

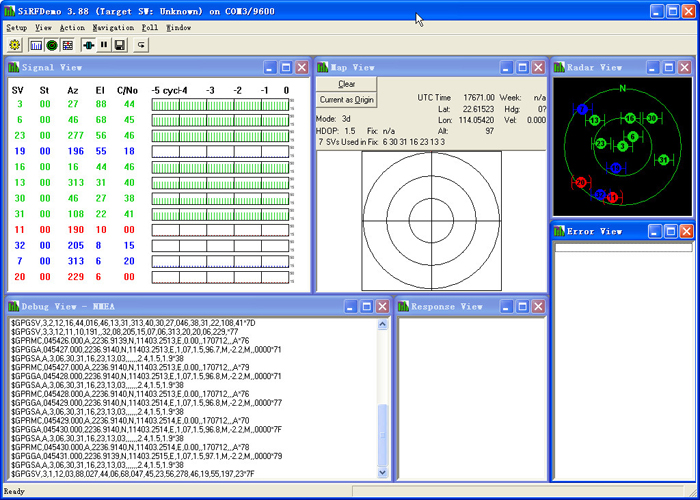

VK1513 module star search results:
