: Large Image:RDA5807M RRD-102V2.0 stereo radio module

Product Details:

Place of Origin:	CHINA
Brand Name:	LXXTECH
Model Number:	LXX-0595
Certification:

Payment & Shipping Terms:

Minimum Order Quantity:	100
Price:	Good price
Delivery Time:
Payment Terms:	TT ,paypal,ESCROW
Supply Ability:

Detailed Product Description

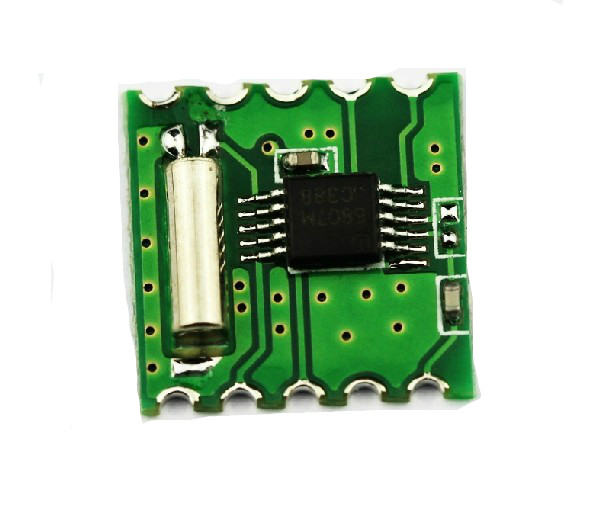

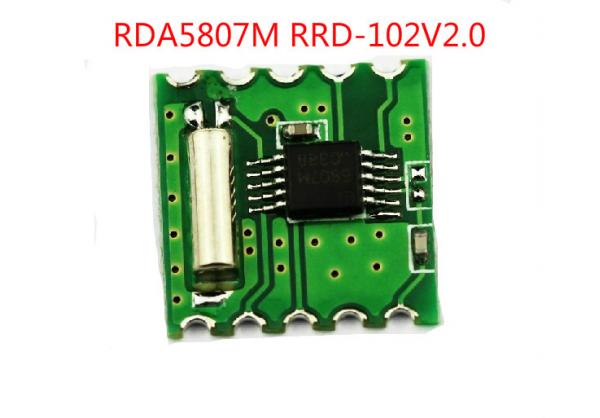

RDA5807M RRD-102V2.0 stereo radio module

Overview:

"RRD-102V2.0" stereo radio module (FM Stereo radio Module) high sensitivity , low power, ultra- small size of the FM stereo radio module. Using RDA Microelectronics of RDA5807M ( or RDA5802NM), this circuit fewer external components , the noise factor is minimal. With small size, low power, low cost , simple application , using a wide range of advantages. Is an easy -to-use and possessed highly cost-effective single-chip FM stereo radio module.

A: Mobile DVD, TV, MP3, MP4 and other built-in FM radio receiver module full band .

B: mining , enterprise , campus , residential, tourist areas and other public places, stereo FM radio system .

C: wireless audio and wireless stereo headset function.

D: GPS navigation, radio and television broadcasting systems , such as FM radio .

E: high-end game consoles and wireless audio electronic toys.

F: stereo mobile phone , mobile phone , intercom systems, mobile radio devices such as radio .

G: PDAS and Notebook PC and other peripheral applications.

Features:

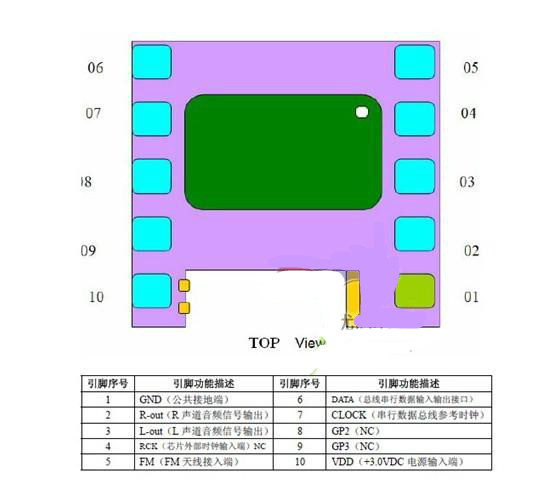

A, using a common 102BC module package , the user can replace the use of direct , without changing the circuit design.

B, high sensitivity , low noise, anti-interference ability , very few external components , small size (11 * 11.2MM Max), extremely simple to use .

C, 76-108MHz FM bands worldwide compatible ( 76-91MHz , including Japan , America and Europe 87.5-108.5MHz).

D, I2C serial data communications bus interface , support for external reference clock input.

E, a fully integrated single-chip integrated circuit COMS technology , power consumption is minimal.

F, the built-in high-precision A / D ( analog to digital converter ) and digital frequency synthesizer.

G, the built-in LDO regulator , low power consumption , wide voltage range (2.7-3.6VDC).

H, built-in noise cancellation, soft mute , bass boost circuit design.

I, 32Ω load high power audio output, headphone connections are direct , without an external audio driver amplifier .

J, the application of simple, low cost and high cost .
