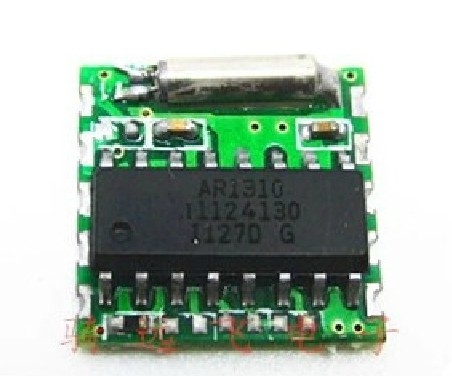

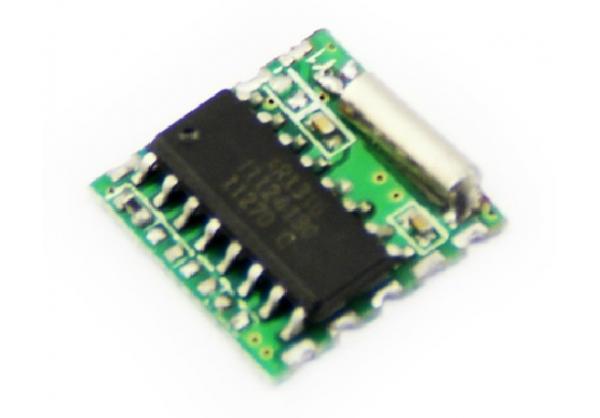

Free MCU control FM radio module, the receiver frequency range :64-108MHz

: Large Image:Free MCU control FM radio module, the receiver frequency range :64-108MHz

Product Details:

Place of Origin:	CHINA
Brand Name:	LXXTECH
Model Number:	LXX-0596
Certification:

Payment & Shipping Terms:

Minimum Order Quantity:	50
Price:	Good price
Delivery Time:
Payment Terms:	TT ,paypal,ESCROW
Supply Ability:

Detailed Product Description

Features:

Widespread support for global FM receiving frequency range :64-108MHz

Low power consumption: 15 mA

Supports four bands set up , no additional set de-emphasized (de-emphasis)

High level of integration with minimal external components

No additional software control MCU

Low-cost 32.768KHz crystal

Built-in two-way automatic station search function

Supports electronic volume control

Supports stereo or mono mode

Built-in Class AB headphone amplifier circuit

Support 32ohm load

Support for external power amplifier switch

Operating voltage 2.2-3.6v

Using SOP16 package

It can be widely used in various key product number

Introduction :

1310 is a highly integrated single-chip stereo FM radio . 1310 to support the global acceptance of the frequency range of FM 64-108MHz. The chip integrates an FM radio chip so functional components : LNA, Mixer, Oscillator and LDOregulator. Requires only minimal external components can enjoy excellent quality and excellent signal reception indicator. 1310 totally unnecessary additional MCU and control software for a variety of different radio product key number .

1310 is definitely your best cost-effective single-chip solution FM radio .

Product Tag : Free MCU control FM radio module 1310
