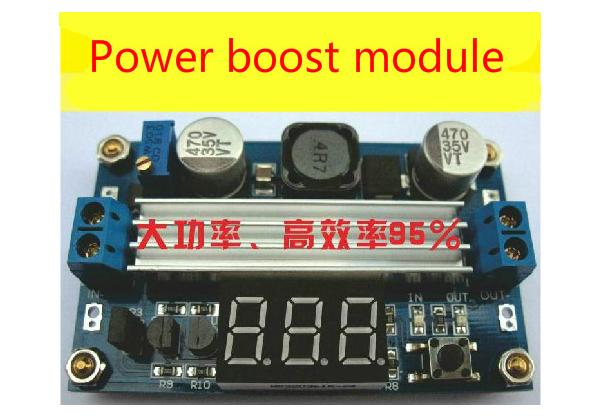

Adjustable boost DC-DC power module, 3.0 ~ 35V rose 3.5 ~ 35V 100W with a digital voltmeter

: Large Image:Adjustable boost DC-DC power module, 3.0 ~ 35V rose 3.5 ~ 35V 100W with a digital voltmeter

Product Details:

Place of Origin:	CHINA
Brand Name:	LXXTECH
Model Number:	LXX-0528
Certification:

Payment & Shipping Terms:

Minimum Order Quantity:	5
Price:	Good price
Delivery Time:
Payment Terms:	TT ,paypal,ESCROW
Supply Ability:

Detailed Product Description

Description:

This product is imported boost IC and power MOS, output power, high efficiency ( 96% ) , wide voltage, the output power of 65W, 100W output power up to enhance heat dissipation . A very wide range of applications , such as 5V 3.7V lithium -liter do mobile power , 7.4V or 12V power supply and so on , up 18 to the laptop , and the on-board voltage meter can measure the input voltage and output voltage values , "IN" input light is measured voltage , "OUT" light is measured output voltage, and voltage meter feature can be turned off , unplug the P3 jumper cap is not required on the line. Even without the multimeter can very easily adjust the desired voltage

Note : No reverse protection, please see the positive and negative inputs note

Performance parameters :

1, input voltage : 3 ~ 35V DC ( Note: The input voltage is less than 4V, onboard voltmeter failure )

2 , Input Current : 9A (max)

3 , the output voltage : 3.5 ~ 35V DC ( This board is a step-up board , the output voltage to be > = input voltage )

4 , the output current : 6A (max)

5 , the output power : 65W, 100W enhance heat dissipation can be achieved

6 , conversion efficiency : 96% ( maximum )

7 , the output ripple : 40mV (TYP)

8 , onboard voltage meter range : 4 ~ 40V, error +-0.1V

Product Tag : Adjustable boost DC-DC power module
