DC-DC (2.0 ~ 5V) l 5V output boost module 1200MA rechargeable mobile power iphone

: Large Image:DC-DC (2.0 ~ 5V) l 5V output boost module 1200MA rechargeable mobile power iphone

Product Details:

Place of Origin:	CHINA
Brand Name:	LXXTECH
Model Number:	LXX-0320
Certification:

Payment & Shipping Terms:

Minimum Order Quantity:	30
Price:	Good price
Delivery Time:
Payment Terms:	TT ,paypal,ESCROW
Supply Ability:

Detailed Product Description

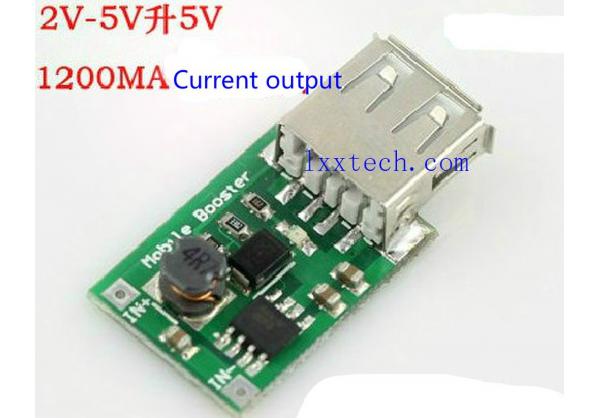

DC-DC (2.0 ~ 5V) l 5V output boost module 1200MA rechargeable mobile power iphone

Product Features:

1, the input to any 2V ~ 5V DC voltage 5V DC output voltage can be stable, with two AA batteries input output 1000ma current single lithium battery-powered current output 1200ma, for mobile phones, cameras, single-chip, digital product supply.

2, with USB female, versatile

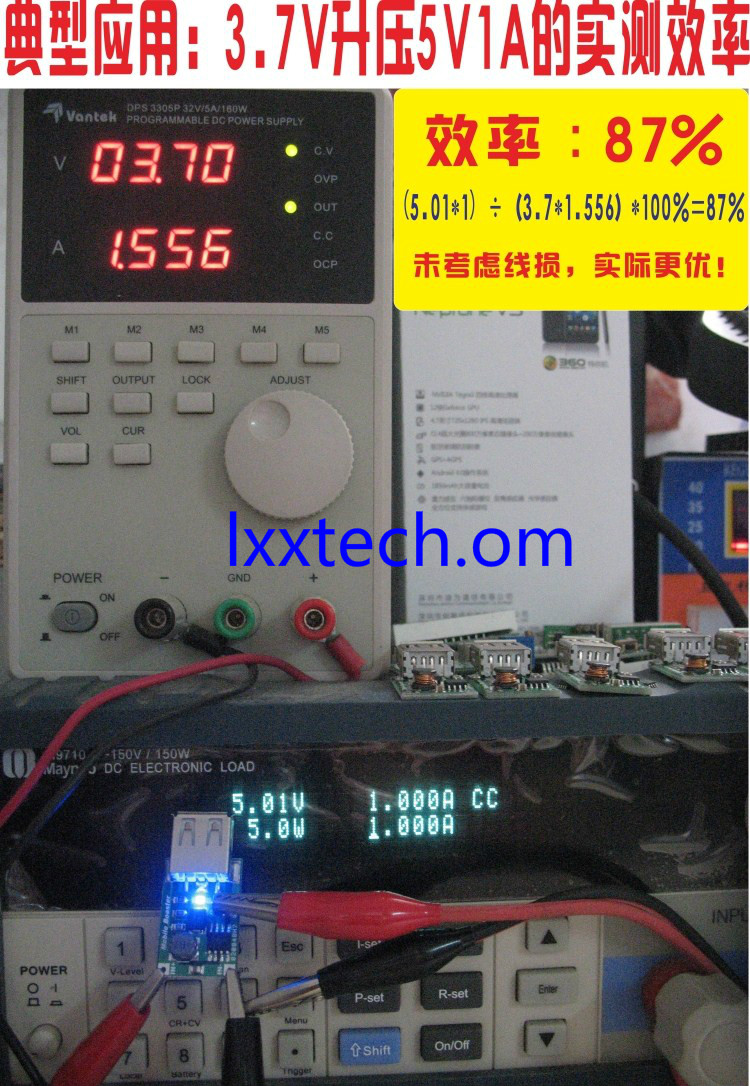

3, high conversion efficiency, up to 90%, with an average 85%, 3.7V l 5V/1A typical application efficiency of 87%, measured chart below for reference

4, ultra-small size, with the installation of equipment in a variety of small

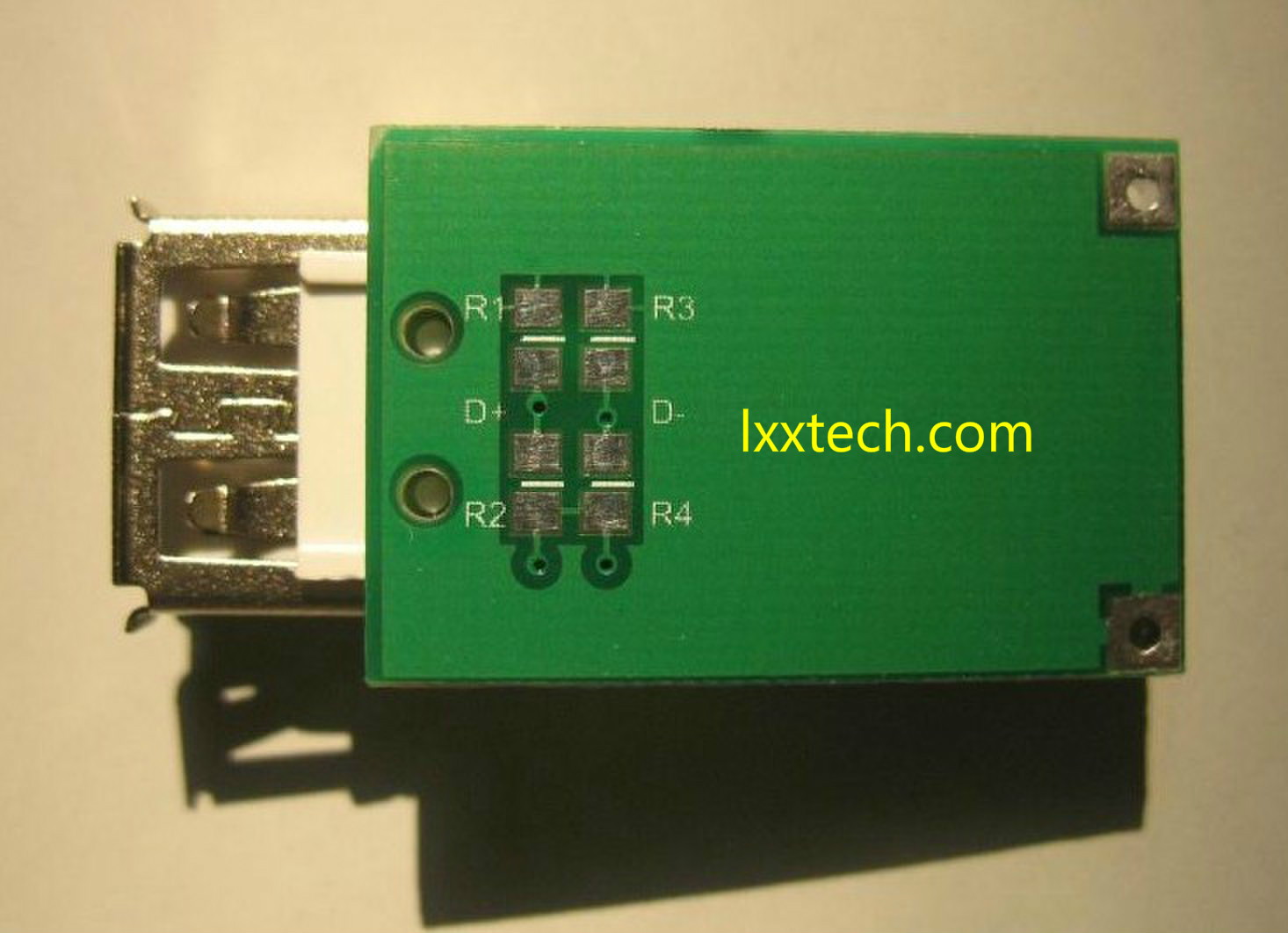

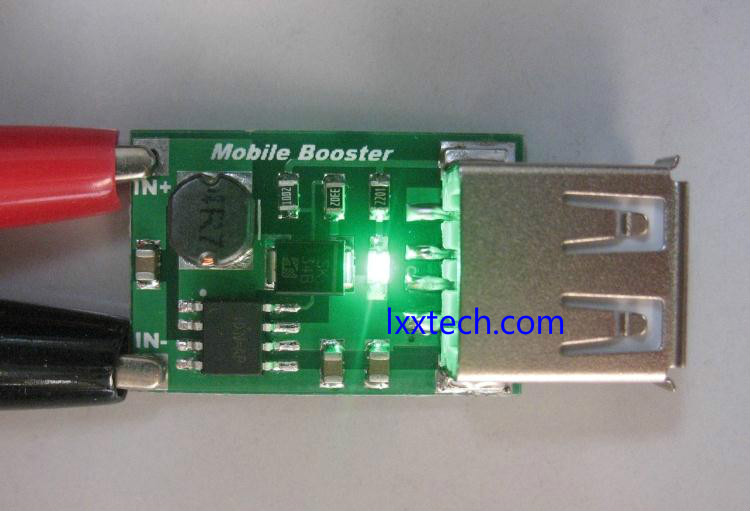

Mounting position 5, with working lights, and set aside to identify resistance

Electrical characteristics:

Input voltage: 2.0V ~ 5.0V

Load output voltage: 5.1V ± 0.1V

Conversion efficiency: up to 90%, with an average of 85%

Maximum output current: (can work for a long time)

(Vin> = 2.0V): 600ma

(Vin> = 2.5V): 800ma

(Vin> = 3.0V): 1000ma

(Vin> = 3.5V): 1200ma

Product Tag : DC-DC (2.0 ~ 5V) l 5V boost module
