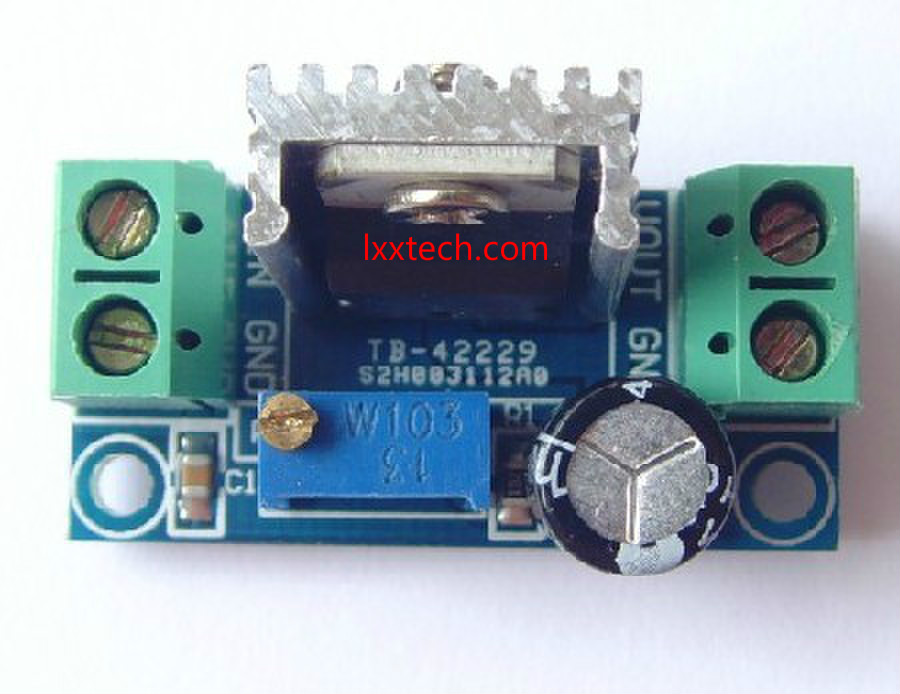

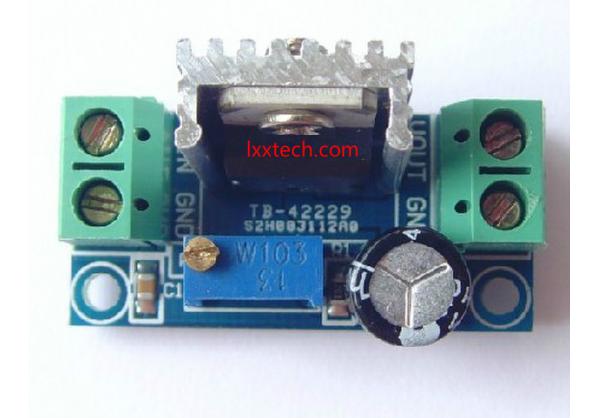

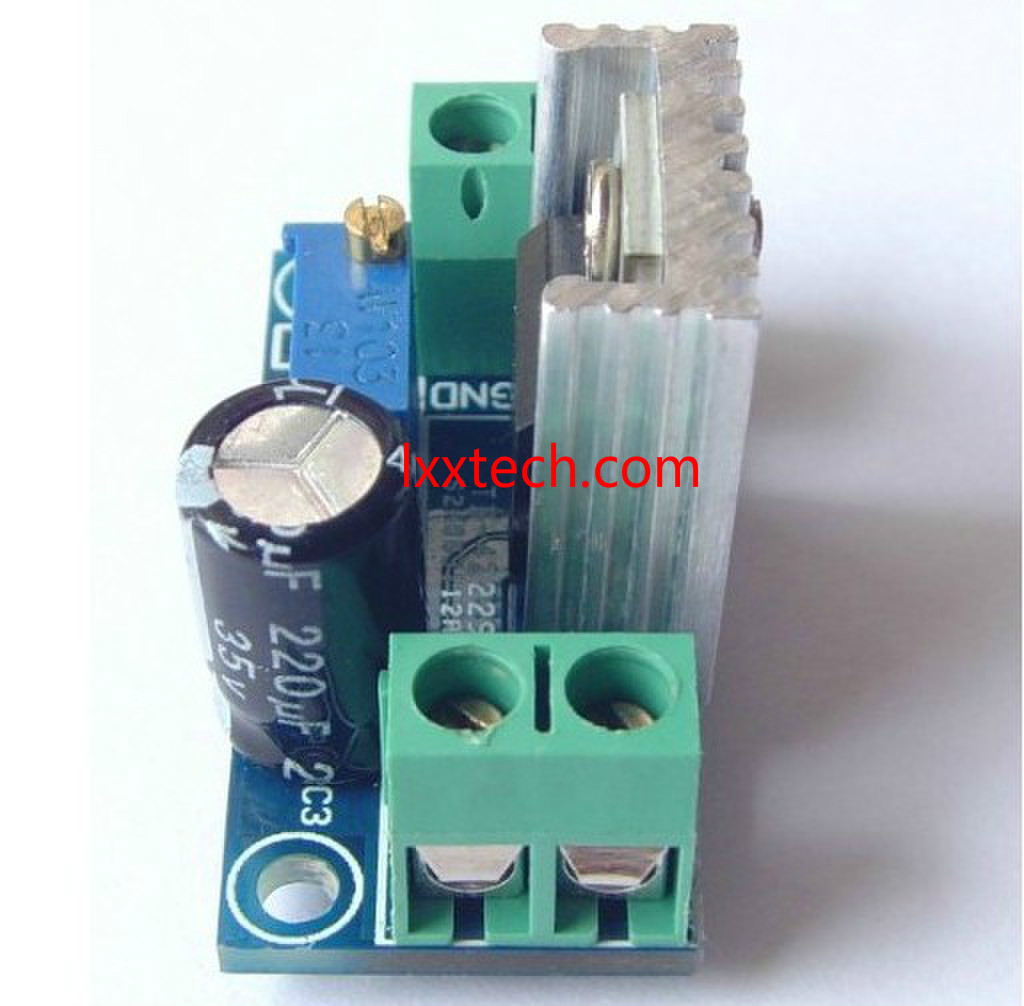

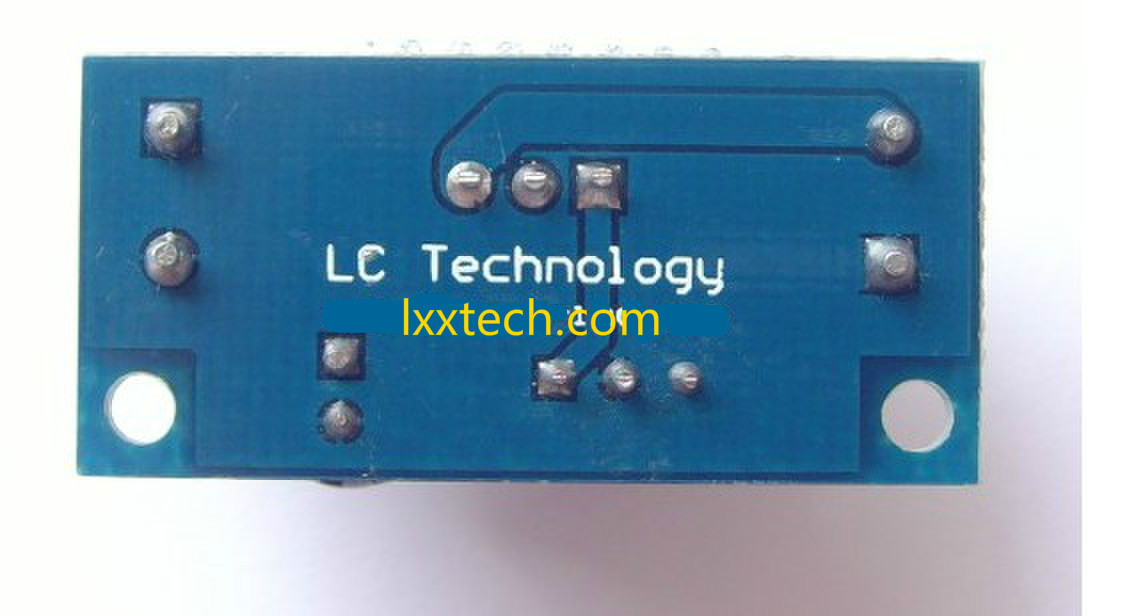

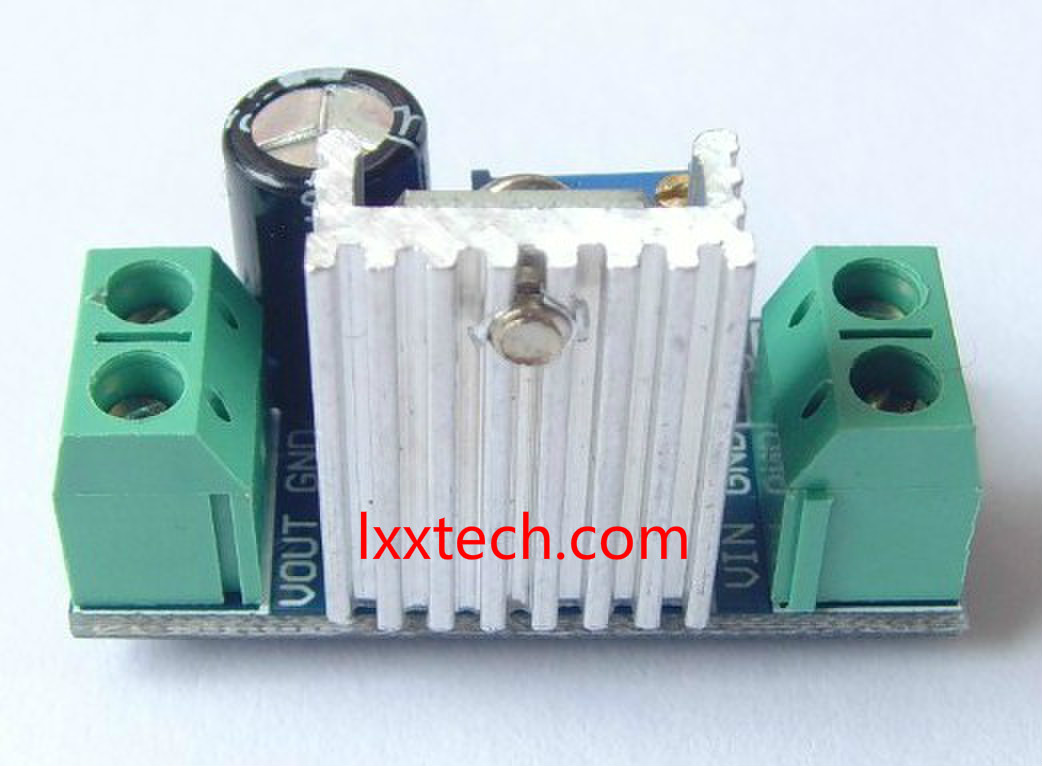

: Large Image:LM317 DC-DC step-down DC converter circuit board

Product Details:

Place of Origin:	CHINA
Brand Name:	LXXTECH
Model Number:	LXX-0329
Certification:

Payment & Shipping Terms:

Minimum Order Quantity:	30
Price:	Good price
Delivery Time:
Payment Terms:	TT ,paypal,ESCROW
Supply Ability:

Detailed Product Description

LM317 DC-DC step-down DC converter circuit board

Name: Adjustable Linear Regulator

Output Current: 1.5A (minimum), 2.2A (typ)

Input-output voltage differential (VI-VO): 40Vdc (max)

Adjustable output voltage range: 1.2 ~ 37V

Operating temperature: -55 ° C to +150 ° C

Current output: 1.5A

Voltage Input: 4.2 ~ 40 V

Operating temperature: 0 ° C ~ 125 ° C

Characteristic frequency: 100 (MHz)

Module size: 35.6 (mm) x16.8 (mm)

Input: VIN input positive level, GND negative input

Output: VOUT output positive level, GND output negative
