Upgrade maximum efficiency of 95%, over LM2596 DC-DC adjustable step-down module

: Large Image:Upgrade maximum efficiency of 95%, over LM2596 DC-DC adjustable step-down module

Product Details:

Place of Origin:	CHINA
Brand Name:	LXXTECH
Model Number:	LXX-0520
Certification:

Payment & Shipping Terms:

Minimum Order Quantity:	30
Price:	Good price
Delivery Time:
Payment Terms:	TT ,paypal,ESCROW
Supply Ability:

Detailed Product Description

Product parameters:

:5-24V input voltage range

Output voltage range: 0.93V-18V (buck mode, enter at least greater than the output 2V above)

Output Current: 2.5A peak output 4A continuous output!

Switch: with Soft-off feature! After the shutdown current low microampere level!

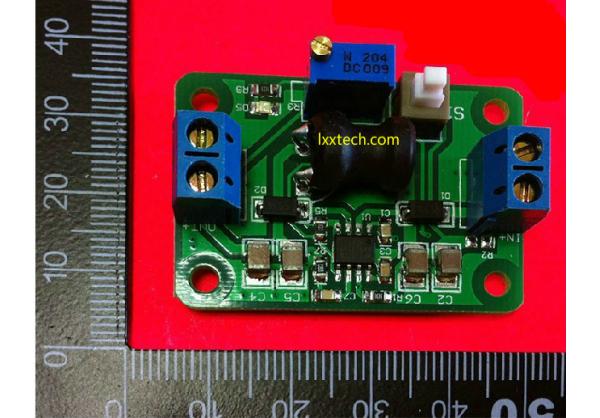

Size: 45mm * 32mm * 16mm

Item: YS-TB

Technical Brief:

Using synchronous rectification technology! High efficiency up to 98%!

Measured efficiency:

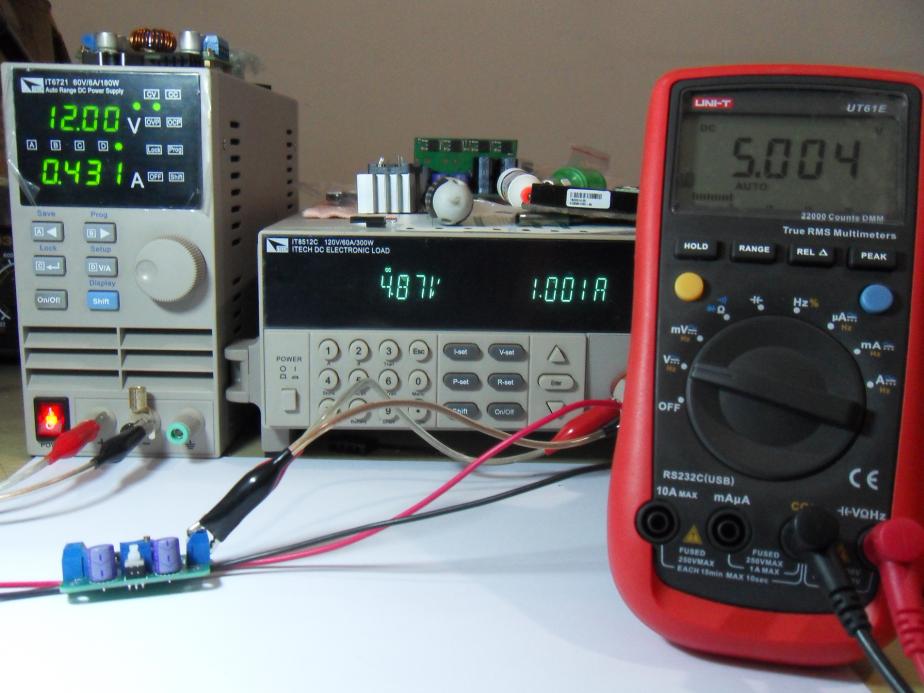

12V turn 5V
12V turn 5V Efficiency = (5V * 1.001A) / (12V * 0.431) = 96.7%

Tips: The new upgrade adds a reverse polarity protection, maximum efficiency can only reach 95% zuoyo right shorted protection diode maximum efficiency up to 98%.

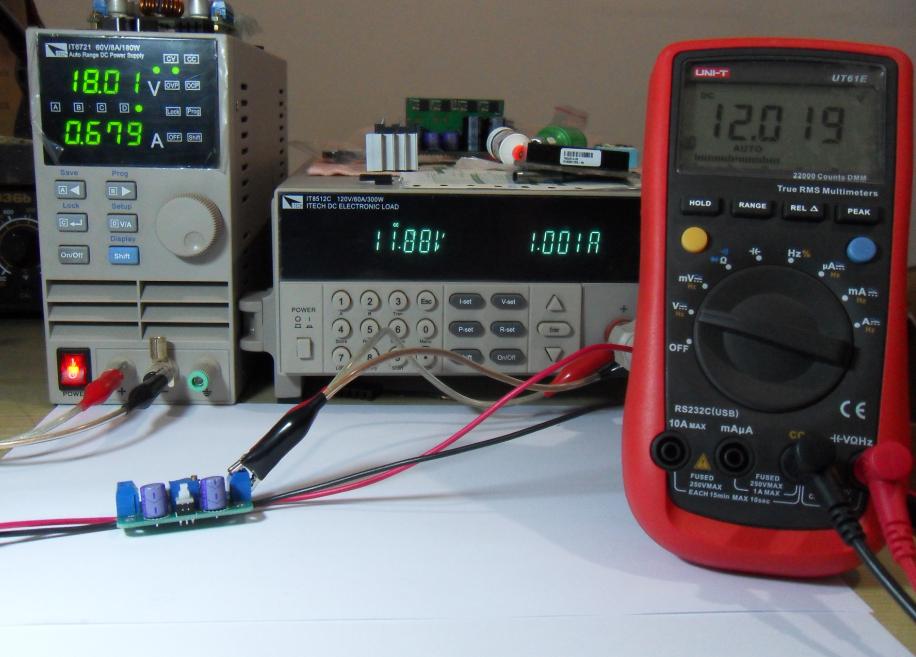

18V switch 12V:
18V to 12V Efficiency = (12.019V * 1.001A) / (18.01V * 0.679) = 98.38%

Input and output are using ultra-high reliability solid capacitors!

Summary: ultra-high efficiency, low loss, perfect beyond lm2596 power module.

Product Tag : over LM2596 DC-DC adjustable step-down module
