DC-DC adjustable power supply module, LM2596 voltage regulator module with voltage meter with digita

: Large Image:DC-DC adjustable power supply module, LM2596 voltage regulator module with voltage meter with digita

Product Details:

Place of Origin:	CHINA
Brand Name:	LXXTECH
Model Number:	LXX-0529
Certification:

Payment & Shipping Terms:

Minimum Order Quantity:	20
Price:	Good price
Delivery Time:
Payment Terms:	TT ,paypal,ESCROW
Supply Ability:

Detailed Product Description

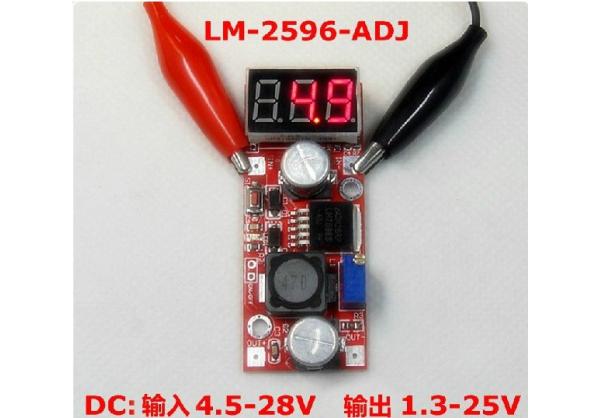

DC-DC adjustable power supply module, LM2596 voltage regulator module with voltage meter with digital display

Input voltage range :4.5-28V Note : 28V to limit the maximum voltage , be sure to leave room use will damage

Output voltage range : 1.3V-25V ( buck mode, the input must be greater than the output 2V above )

Output Current: 1.5A Continuous Output Power : 15W max

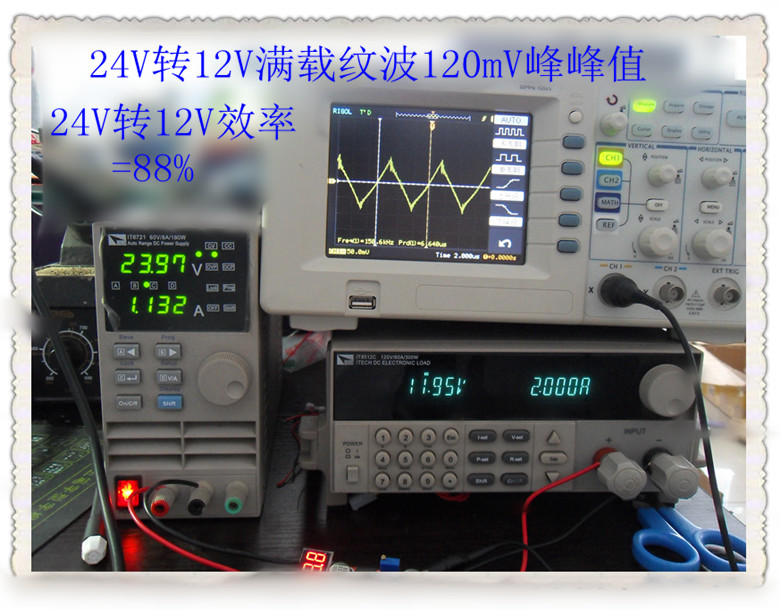

Ripple frequency : about 150Khz ripple peak : about 100mV

Size : 62mm * 26mm * 14mm Weight: 20 g / only

Voltmeter Accuracy : ± (5 ‰ +1 words )

Static power consumption: typically around 20ma ( with the input voltage and output voltage digital color is closely related to the existence of actual bias currents )

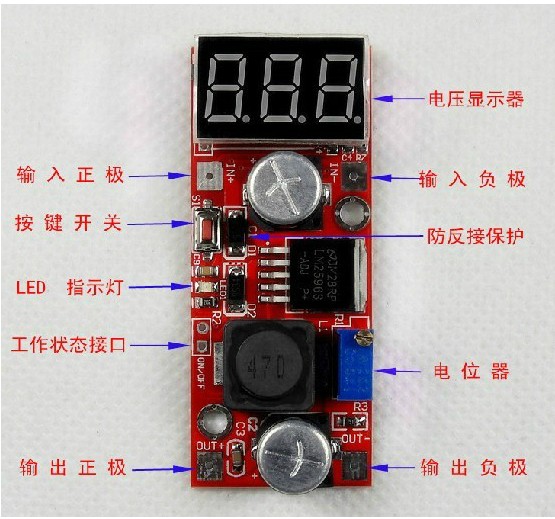

IN +: Input positive IN-: Enter the negative OUT +: Positive output OUT-: negative output

Features:

1: The input and output voltage can be alternately displayed.

2 : Power status can be freely defined.

3 : with key -off function , reduce power consumption.

4: ON/0FF output operation, the high representative Close output, active low output representatives open . Note: High (3.3V) Maximum output 5ma current.

Work Mode Description :

Output voltage mode : boot the default display mode for the output voltage ** * LED indicator goes off.

Input voltage mode : press once to switch to the input voltage switch mode display ** * LED indicator lights.

Alternate Mode: Press the switch again to the input / output voltage alternating turns 3S display data ( again pressed to return to the output voltage display mode )

Product Tag : LM2596 voltage regulator module with voltage meter with digital display
